• Step 6 - Recheck Installation
To be sure you have correctly installed your Room Air Conditioner, review the steps and make sure all of the
parts are securely fastened in the window as the instructions show. A tight seal is essential.
Read through the Use & Care manual to become familiar with the operation of your room air conditioner.
CAUTION Do not lift window sash without holding the unit. The window sash helps keep the unit in the
window. Exercise caution when opening the window. Failure to do so many result in
personal injury and/or property damage.
• Step 7 - Install Unit and assemble Front Grille
1. Push the unit into the installed Chassis.
2. Fasten Base Pan and Chassis with screws to side holes.
3. Assemble Front Grille into Chassis holes.
– Snap Front Grille's hook to each Chassis holes.
4. Fasten Front Grille with screws.
5. Insert Filter into the Front Grille.
6. Attach the inlet grill to the front grille.
• Step 8 - Recheck the entire installation

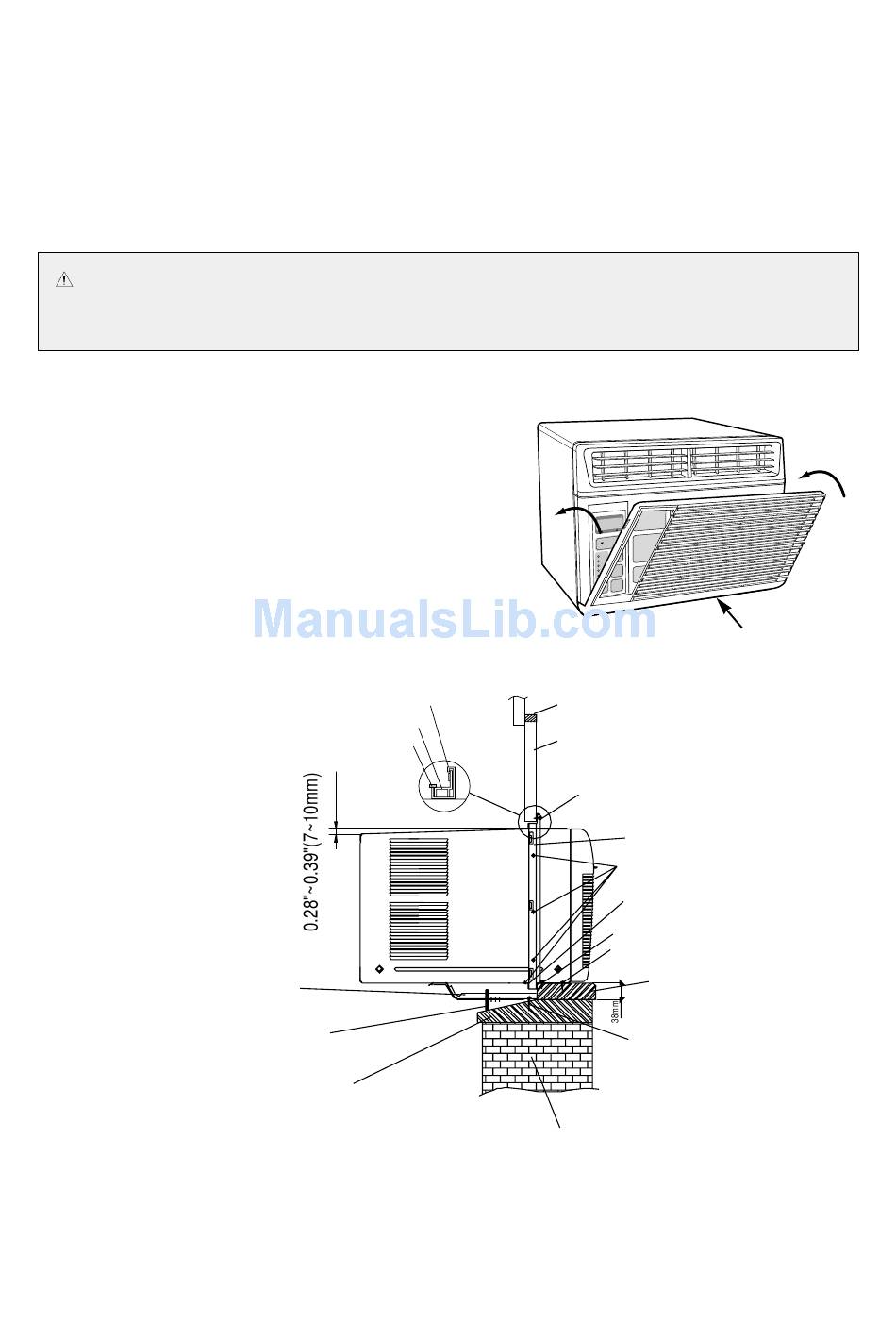

SILL BRACKET(2 pieces)
Leveling Screw (Type A, 2x1= 2 pieces)
OUTER WINDOW SILL
TOP GUIDE
WINDOW KIT FRAME
WINDOW SEAL B
WINDOW SEAL A
WINDOW SASH
Screw (Type C, 2 pieces)
WALL
8
WINDOW KIT 'R & 'L
Screw (Type D, 2x4=8 pieces)
GUIDE LOWER
Screw (Type C, 2x1=2 pieces)
Screw (Type C, 3 pieces)
SILL
Screw (Type B, 2x2=4 pieces)
