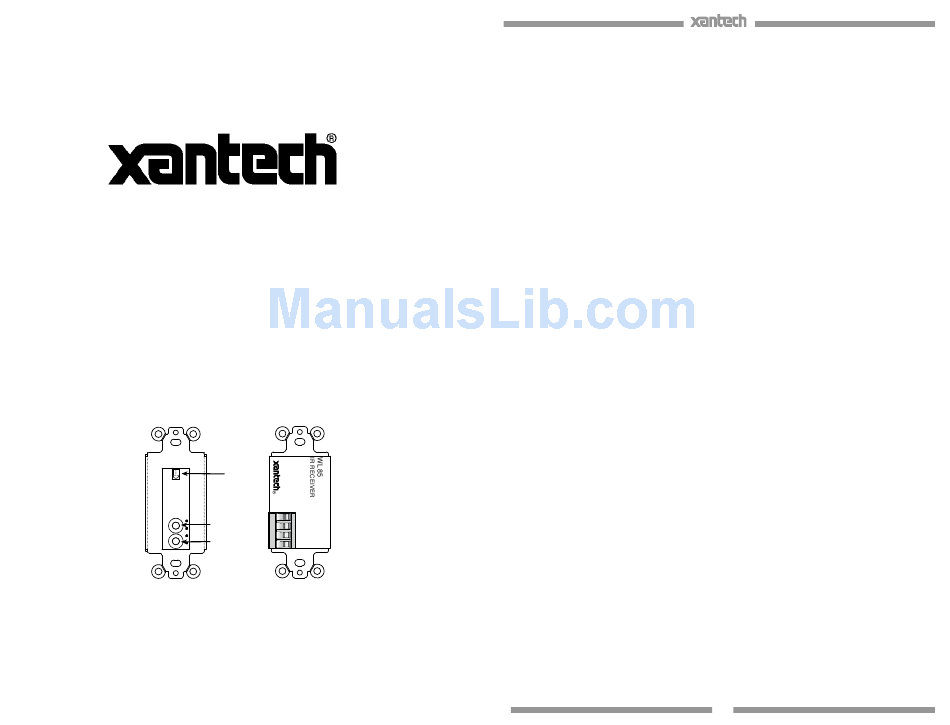

INSTALLATION INSTRUCTIONS
WL85
Wall Link™
Plasma\LCD\LED\CFL Friendly
IR Receiver
IR
Receiver
Status LED
Talkback LED
+12VDC
STATUS
GND
IR OUT
DESCRIPTION
The WL85 is designed to reject interference from Plasma, LCD, LED
Displays and Compact Fluorescent Lamps (CFL) from entering the IR signal
line. This IR Receiver mounts easily into a single gang, electrical J-Box, is
supplied with mounting screws, and comes with a Decorator-style insert,
allowing the installer to use a Decorator-style wall cover plate. This provides
an integrated look for control of A/V equipment behind closed doors or any
IR Repeater System that is in close proximity to light sources described
above.
FEATURES
•
J-Box Mounting with Decorator-style insert (available in white (included),
ivory, almond, & black)
•
4-screw terminal block for interface to Xantech Connecting Blocks
•
Works in normal 3-wire mode
•
Improved Compact Fluorescent Light rejection
•
May be used in Direct Sunlight
•
RF Grid included for EMI reduction
•
Talk Back LED for IR reception and full system operation indication
•
Status LED for system On/Off indication (requires 12VDC Source
@10mA)
•
7 units may be powered by one 781ERGPS power supply (regulated
12VDC 200mA supply)
Note: The WL85 will not operate in 2-wire Phantom Power mode
SPECIFICATIONS
•
Infrared modulation frequency bandwidth: 30 - 60 kHz
•
Reception range: up to 80 feet (18M), depending on remote control
output strength and ambient conditions.
•
Reception angle: 55 degrees off axis at 50% range reduction
•
Cable requirements: 3-conductor. Use 24-gauge up to 200' (61M), 22
gauges up to 600' (180M), 20-gauge up to 2000' (600M), 18-gauge up to
5000' (1.5KM) -- unshielded OK.
•
Maximum transmission length: One mile using 18-gauge wire (1.6KM)
•
Maximum current output: 100 mA (pulse)
•
Dimensions: 1-3/4" W x 4-1/8" H x 1-1/8" D
•
Power requirements: 12 volts DC @ 20mA
2
