Introduction
The Xantech XT-CAT-ARC-KIT audio over CAT cable solution transmits digital audio signals up to distance of 300m (192kHz signals up to 100m).
This plug and play device will extend both optical and coaxial digital inputs concurrently and features a built in DAC to convert either of the digital
inputs to an analog stereo left / right audio output.
Key Features
• Extend optical and coaxial digital audio signals up to distances of 300m over a single CAT cable
• Supports distances of up to 192kHz - 100m, 96kHz - 150m, 48kHz - 300m
• Optical and coaxial digital signal can both be distributed at the same time
• Built in DAC (Digital to Analog Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (PCM only)
• Active solution powered only at the receiver unit. The Xantech transmitter receives power over the CAT cable.
• Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender
• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution
• Ultra low jitter and high fidelity design
• Plug-and-play
• Small compact size
© 2018 XANTECH
is a registered trademark of Nortek Security & Control.
®
XT-CAT-ARC-KIT
User Manual
XT-CAT-ARC-KIT
USER MANUAL
10019320 REV-A0
10019320 REV-A0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xantech XT-CAT-ARC-KIT
Summary of Contents for Xantech XT-CAT-ARC-KIT

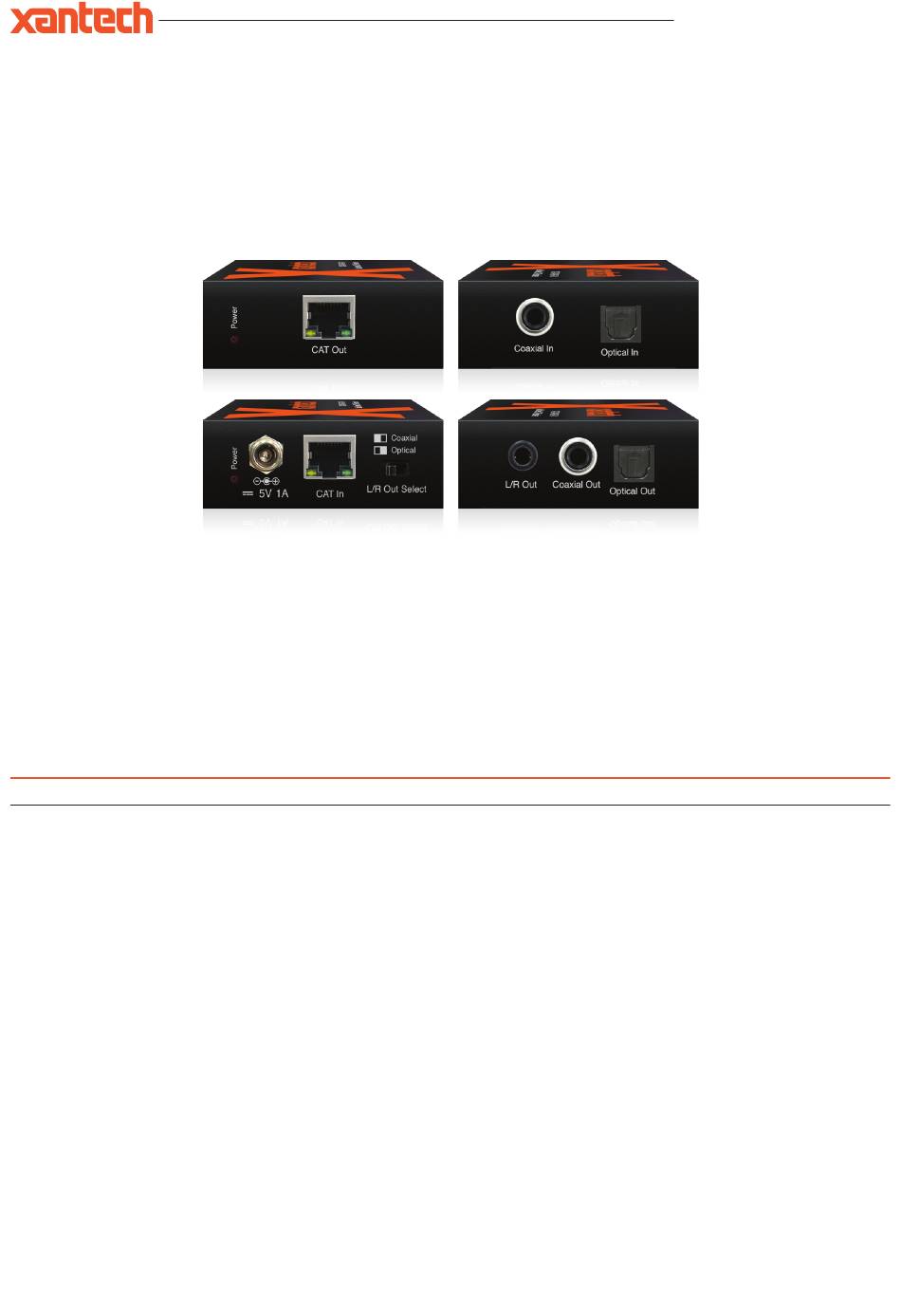

- Page 1 Introduction The Xantech XT-CAT-ARC-KIT audio over CAT cable solution transmits digital audio signals up to distance of 300m (192kHz signals up to 100m). This plug and play device will extend both optical and coaxial digital inputs concurrently and features a built in DAC to convert either of the digital inputs to an analog stereo left / right audio output.

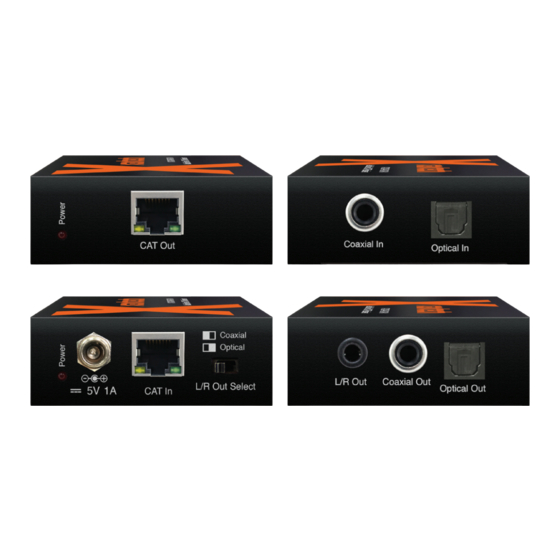

- Page 2 L/R Out Coaxial Out Optical Out Power socket – Use Xantech supplied 5V / 1A DC adaptor Cat5e/6 RJ45 input DAC input selection – Switch between optical and coaxial digital input to be converted to analog L/R audio output Analog L/R audio output - 3.5mm stereo audio jack...
- Page 3 Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Do not substitute or use any other power supply other than the enclosed unit, or a Xantech approved replacement. Do not disassemble the unit for any reason. Doing so will void the manufacturer’s warranty.
- Page 4 1 (800) 472-5555 - US tech@xantech.com www.xantech.com 1 (707) 283-5900 - International 1 (707) 283-5901 - Fax © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019320 REV-A0 10019320 REV-A0 ®...
