DINKY LINK™ "CFL & LCD FRIENDLY" INFRARED RECEIVER
TABLE OF CONTENTS
Table of contents............................................................................................................................................... 1

Introduction........................................................................................................................................................ 1

Features ........................................................................................................................................................ 1

Specifications ................................................................................................................................................ 2
Installation ......................................................................................................................................................... 2
Mounting........................................................................................................................................................ 2
Application Wiring........................................................................................................................................... 3
Adjusting Ir Carrier Frequency...................................................................................................................... 3
INTRODUCTION

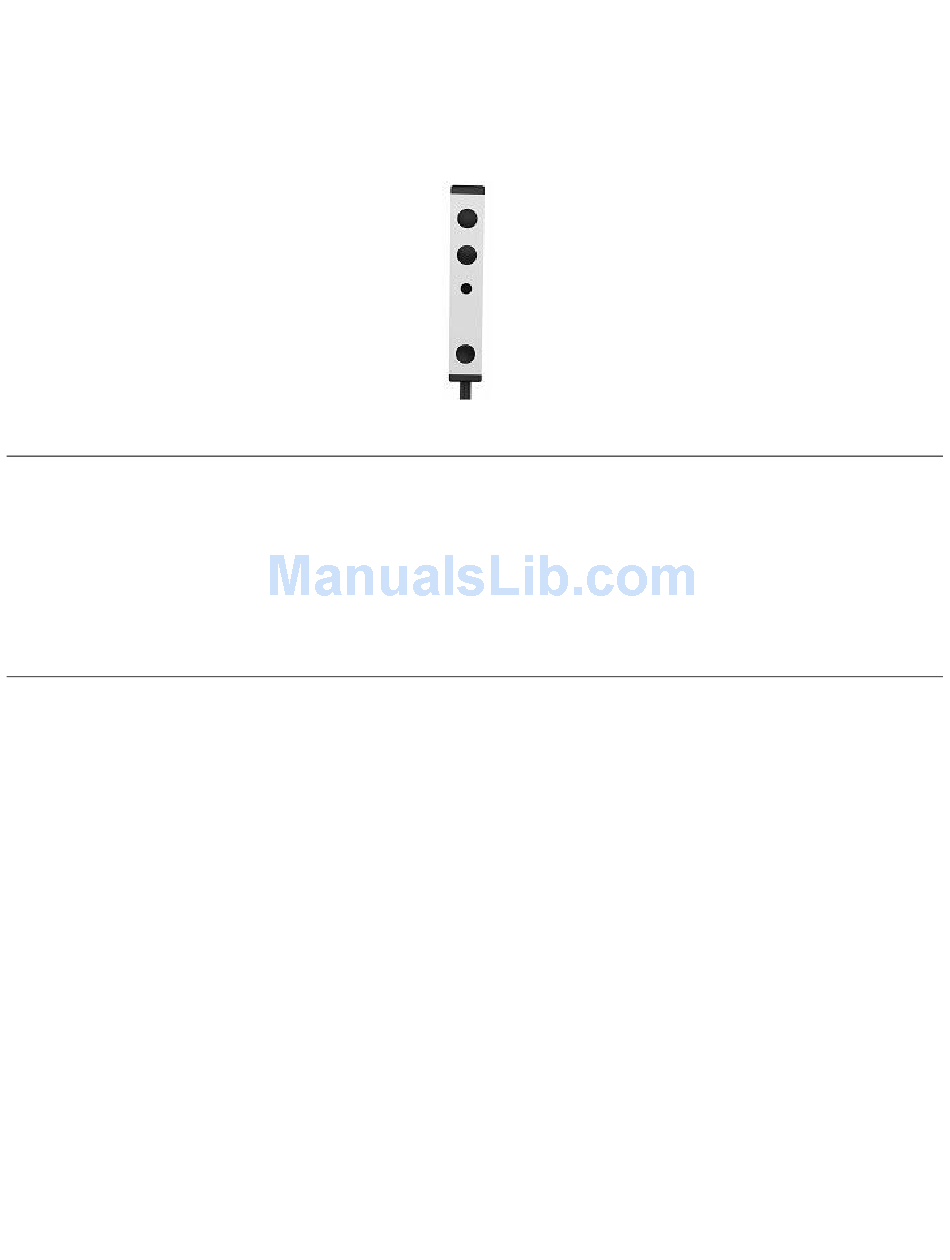

The 480-85 is a CFL (compact fluorescent light) friendly version of the 480-00 series Dinky Link IR receivers now with
adjustable IR Output Frequency. The 480-85 is specifically designed to have great immunity to CFL-type infrared
interference including that from LCD Television Monitors and direct sunlight still with exceptional IR reception range.
The 480-85 also has an adjustable IR output carrier frequency allowing it to pass IR signals for a wide variety of today's
changing technology such as HD cable and satellite set-top boxes assuring the install can be done right the first time
regardless of the customers changing IR components.
They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. - anywhere an inconspicuous appearance
is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands
up to 30 feet away.
This unit has a 7-foot 3-conductor ribbon cable with stripped and tinned ends and is available in 3 different colors:
Black: 480B-85
White: 480W-85
Silver: 480S-85
FEATURES
Very small package, only 7/16" x 5/16" x 2-1/2".
Easily mounts to any flat surface using the 3/8" x 1-3/4" double sided stick tape (included)
Immunity to CFL (Compact Fluorescent Lights)
Immunity to interference from LCD displays
Improved response in direct sunlight
Red talk-back LED tests system and indicates infrared reception.
Includes 3-Terminal Block for easy extension of 7' ribbon cable.
INSTALLATION INSTRUCTIONS
MODEL 480-85
WITH ADJUSTABLE CARRIER FREQUENCY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 480-85 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xantech 480-85

  • Page 1 LCD Television Monitors and direct sunlight still with exceptional IR reception range. The 480-85 also has an adjustable IR output carrier frequency allowing it to pass IR signals for a wide variety of today’s changing technology such as HD cable and satellite set-top boxes assuring the install can be done right the first time regardless of the customers changing IR components.
  • Page 2 Note: If longer range is necessary, 3/8-inch holes must be drilled in the grille to allow unobstructed entry of the IR signal to each of the IR receiver windows. 1. Remove one side of the double-stick tape from its protective layer and adhere to it the rear of the 480-85 Dinky Link™...
  • Page 3 ADJUSTING IR CARRIER FREQUENCY The 480-85 is factory set to an IR carrier frequency of 38kHz. This will be correct for the majority of installations, however, some manufacturer's components that you wish to control may use different carrier frequencies (such as the RCA DSS Receivers, SA Cable boxes, etc which use carrier frequencies within the range of 52kHz - 56kHz).
  • Page 4 4. If you have products in the same IR system that have different IR carrier frequencies, you will have to adjust the 480-85 to a midway position. For example, some products may operate at 38 kHz and others at 56 kHz. In this case, set the adjustment to approximately ¾...
