Xantech Wall Link WL25 Installation Instructions

INSTALLATION INSTRUCTIONS
WL25
Wall Link™
Standard IR Receiver

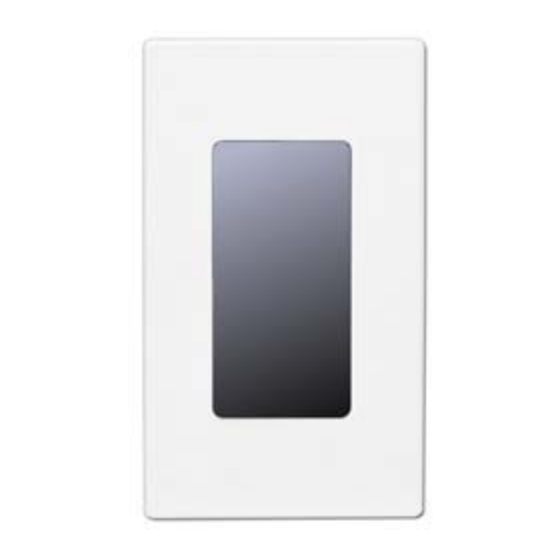

DESCRIPTION
The WL25 is designed to reject interference from CRT, DLP and LED
Displays. This IR Receiver mounts easily into a single gang, electrical J-Box,
is supplied with mounting screws, and comes with a Decorator-style insert,
allowing the installer to use a Decorator-style wall cover plate. This provides
an integrated look for control of A/V equipment behind closed doors or any
IR Repeater System that is in close proximity to light sources described
above.
FEATURES
• J-Box Mounting with Decorator-style insert (available in white (included),
ivory, almond, & black)
• 4-screw terminal block for interface to Xantech Connecting Blocks
• Works in normal 3-wire mode
• RF Grid included for EMI reduction

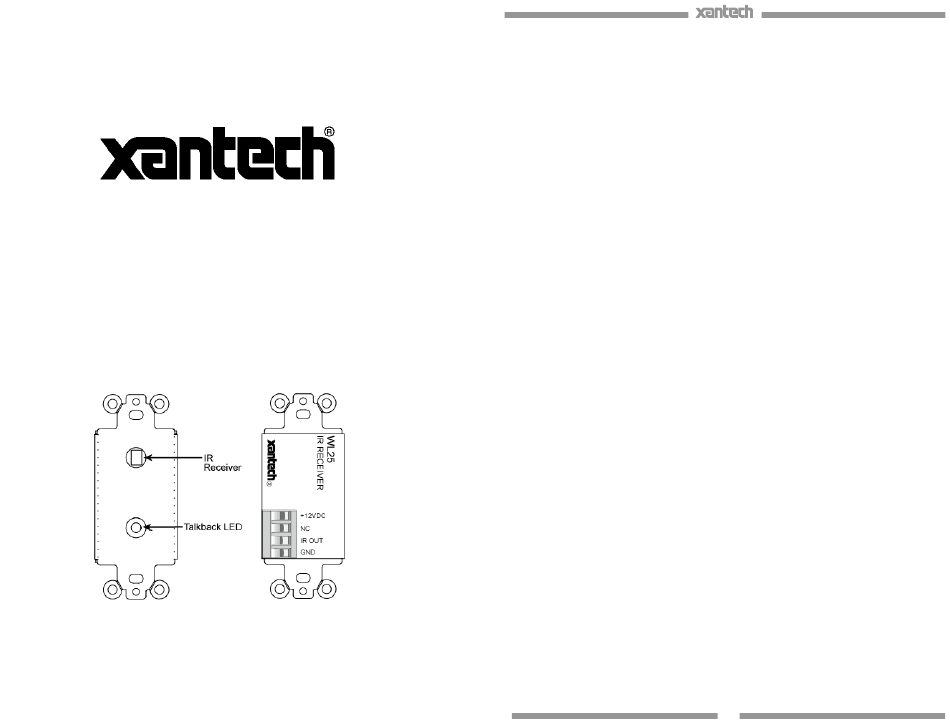

• Talk Back LED for IR reception and full system operation indication
• 7 units may be powered by one 781ERGPS power supply (regulated
12VDC 200mA supply)
Note: The WL25 will not operate in 2-wire Phantom Power mode
SPECIFICATIONS
• Infrared modulation frequency bandwidth: 25 - 60 kHz
• Reception range: up to 80 feet (18M), depending on remote control
output strength and ambient conditions.
• Reception angle: 55 degrees off axis at 50% range reduction
• Cable requirements: 3-conductor. Use 24-gauge up to 200' (61M), 22
gauges up to 600' (180M), 20-gauge up to 2000' (600M), 18-gauge up to
5000' (1.5KM) -- unshielded OK.
• Maximum transmission length: One mile using 18-gauge wire (1.6KM)
• Maximum current output: 100 mA (pulse)
• Dimensions: 1-3/4" W x 4-1/8" H x 1-1/8" D
•
Power requirements: 12 volts DC @ 20mA
