HIDDEN LINK™ "PLASMA FRIENDLY" INFRARED RECEIVER
TABLE OF CONTENTS
Table of contents ............................................................................................................................................................. 1
INTRODUCTION ............................................................................................................................................................. 1
Features ...................................................................................................................................................................... 1
Specifications .............................................................................................................................................................. 1
Installation ............................................................................................................................................................... 2
Placement ................................................................................................................................................................... 2
Application Wiring......................................................................................................................................................... 2
Advanced Wiring Configuration...................................................................................................................................... 3
3.5Mm Mini Plug Pinout ................................................................................................................................................ 3
Trouble Shooting .................................................................................................................................................... 4
INTRODUCTION

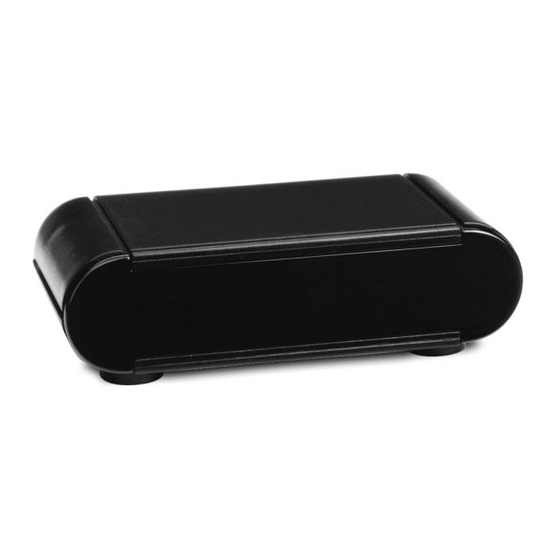

The 291-95 is a small shelf-top infrared repeater assembly designed to reject interference from Plasma Displays from
entering the IR signal line. The 291-95 is the first non fixed-installation version of Xantech's Plasma Series IR product line.
These Small IR Receivers are intended to be placed on a shelf, ledge or mantel in close proximity of a Plasma or LCD
Display. Its small package allows it to even be placed on the top ledge of most Plasma Displays. Besides showing great
immunity to Plasma emissions, the 291-95 (as wells as all Xantech Plasma-Friendly Receivers) work well in the presence
of Sunlight and Fluorescent lighting. Their wide-bandwidth reception allows it to be used with a much wider assortment of
IR Controllable products than the competition assuring the 'job will get done' the first time around without un-wanted
service calls.
FEATURES
•
No physical installation required. Can be placed on shelf for quick/easy setup
•
Quick-Connect 3.5mm Stereo Mini Plug on 7ft. (213.36cm) cable for direct plug-in to Xantech Connecting Blocks
•
Works in normal 3-wire mode (12VDC, IR, GND)
•
Red Talkback LED for System Verification
•
Improved Fluorescent Light rejection (under most conditions) and rejection from LCD Displays
•
Can be used in Direct Sunlight
•
Built in RF Grid for EMI interference reduction
•
Includes CB12 Connecting Block for easy connection and extension of 7' ribbon cable
•
7 units may be powered by one 781RG power supply
Note: The 291-95 will not operate in 2-wire Phantom Power mode
SPECIFICATIONS
•
Infrared modulation frequency bandwidth: 30 - 100 kHz
•
Reception range: up to 55 feet (17M), depending on local conditions
•
Reception angle: 55 degrees off axis for 50% range reduction
•
Cable requirements: 3-conductor. Use 24 gauge up to 200' (61M), 22 gauge up to 600' (182.5M), 20 gauge up to
1000' (305M), 18 gauge up to 2000' (610KM) -- unshielded OK)
•
Maximum current output: 100 mA
•
Dimensions: 3 1/4" x 1" x 2" (83mm x 26mm x 51mm)
•
Power requirements: 12 volts DC @ 20 mA
INSTALLATION INSTRUCTIONS
MODEL 291-95
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xantech 291-95
Summary of Contents for Xantech 291-95
- Page 1 The 291-95 is a small shelf-top infrared repeater assembly designed to reject interference from Plasma Displays from entering the IR signal line. The 291-95 is the first non fixed-installation version of Xantech’s Plasma Series IR product line. These Small IR Receivers are intended to be placed on a shelf, ledge or mantel in close proximity of a Plasma or LCD Display.
- Page 2 Note: Plasma interference can be reflected off of any item it comes into contact with within approx. 3 ft. from the front of the display. Keeping this in mind, make sure that the 291-95 is free of any obstruction that might reflect back into the receiving eye.
- Page 3 Block. 3.5MM MINI PLUG PINOUT There might be times when the 291-95 needs to be wired directly to a Terminal Block. In that case you will need to cut off the 3.5mm jack and wire according to Table 1. Table 1 - 291-95 Connector Pin-Out...
- Page 4 IR Trouble Shooting Guide. For non-operation or intermittent control try the following: 1. The most common indication of IR interference is if the 291-95’s TB LED is ON constantly or flickers often. This can be caused by numerous sources of Interference: RF Interference: Depending upon the surrounding environment and Wire Run Lengths, RF interference can cause the Talk Back LED to Flicker often or cause the LED to be on Constantly.
