Pro-Form 1110 E Elliptical Manual page 16

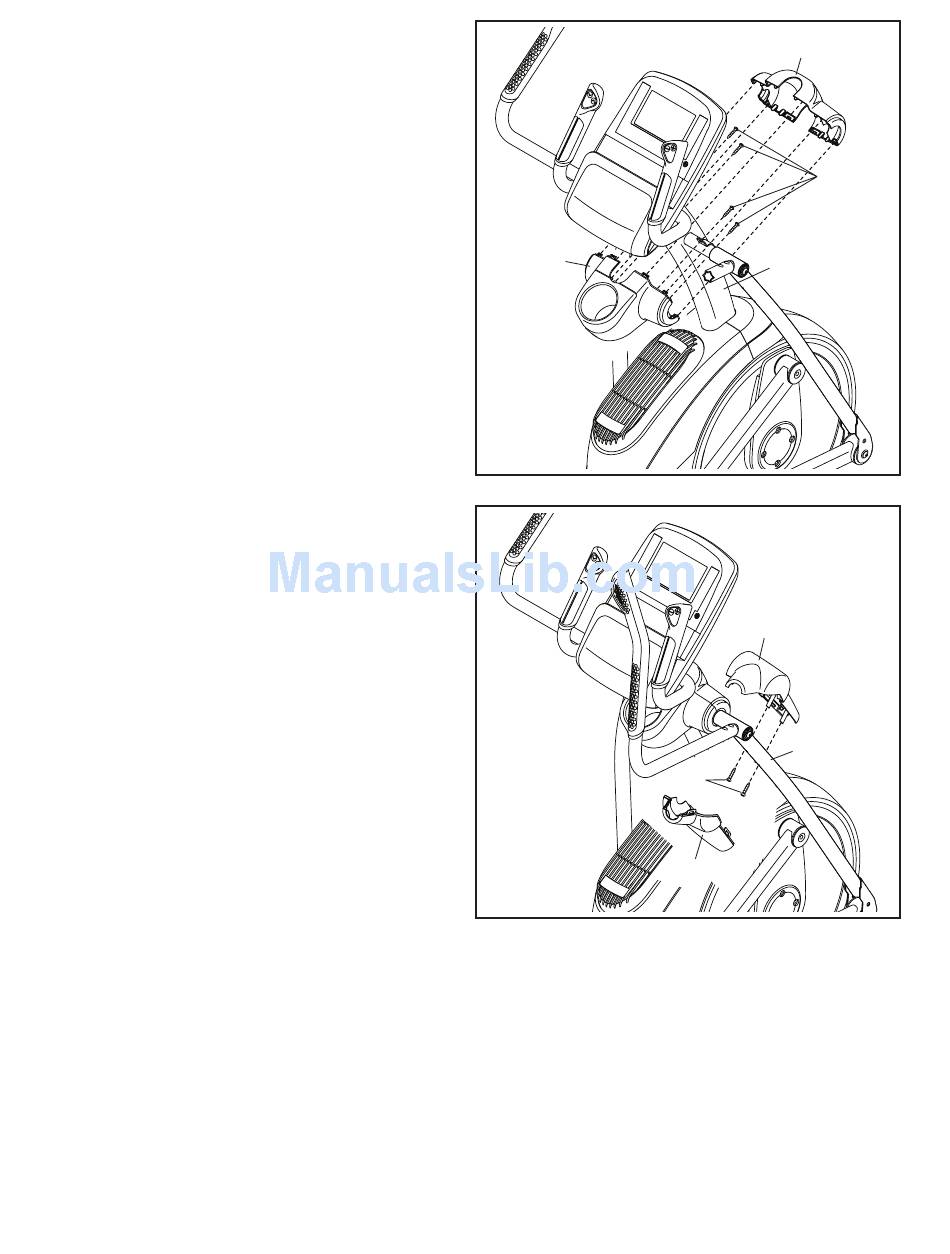

16. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101).
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it into the Rear Upright
Cover (81).
17. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Identify the Right Upper Body Arm Rear Cover
(66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing it into the Right Upper Body Arm Front
Cover (65).
Repeat this step on the other side of the
elliptical.
