Pro-Form 1110 E Elliptical Manual page 12

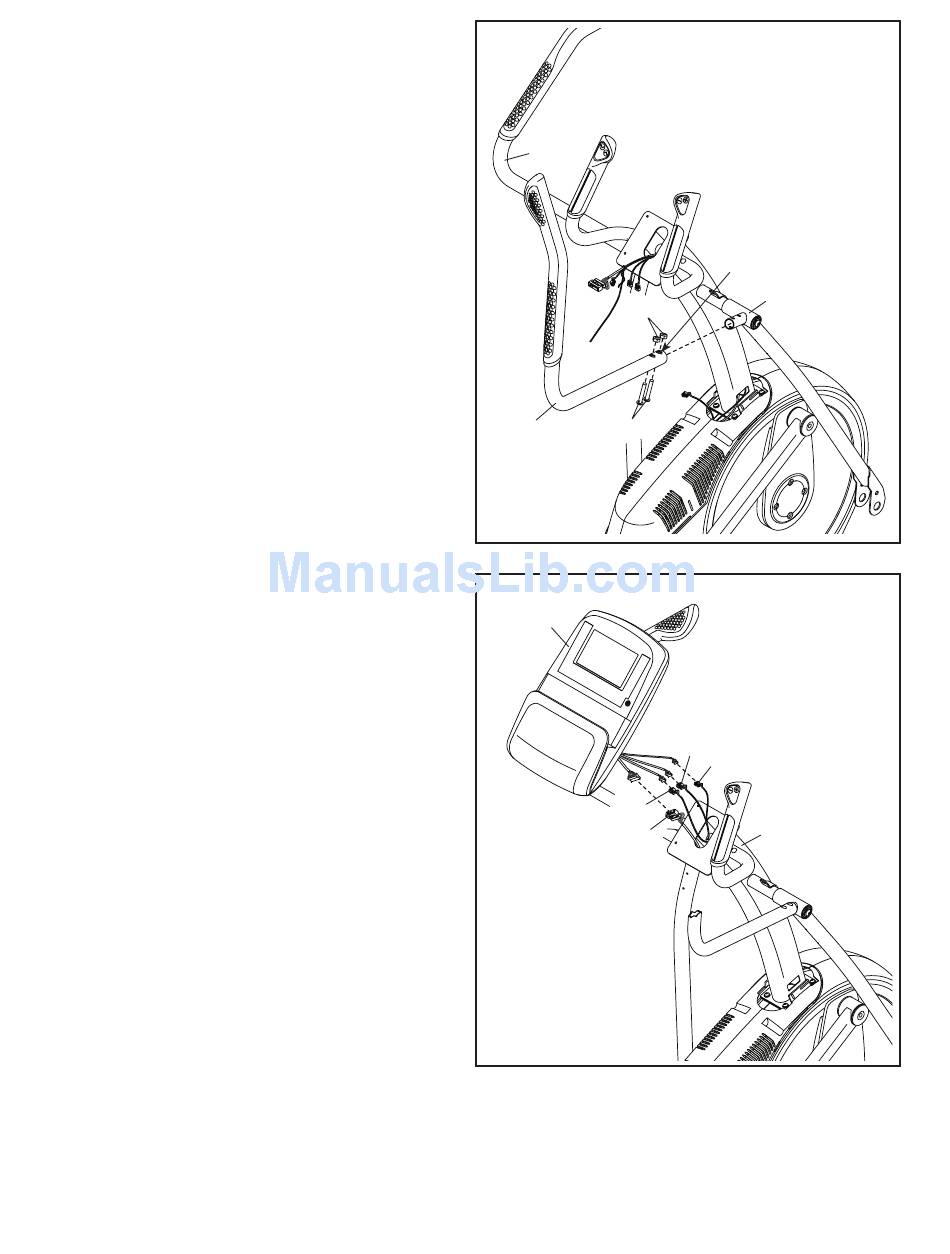

8. Identify the Right Upper Body Arm (61) and ori-
ent it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (47).
9. Untie and discard the wire tie on the Upper Wire
(110) and the Fan Extension Wire (146).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110), to the Fan
Extension Wire (146), and to the Sensor Wires
(63, 144).
Insert the excess wire into the Upright (4) or into
the Console (7).
