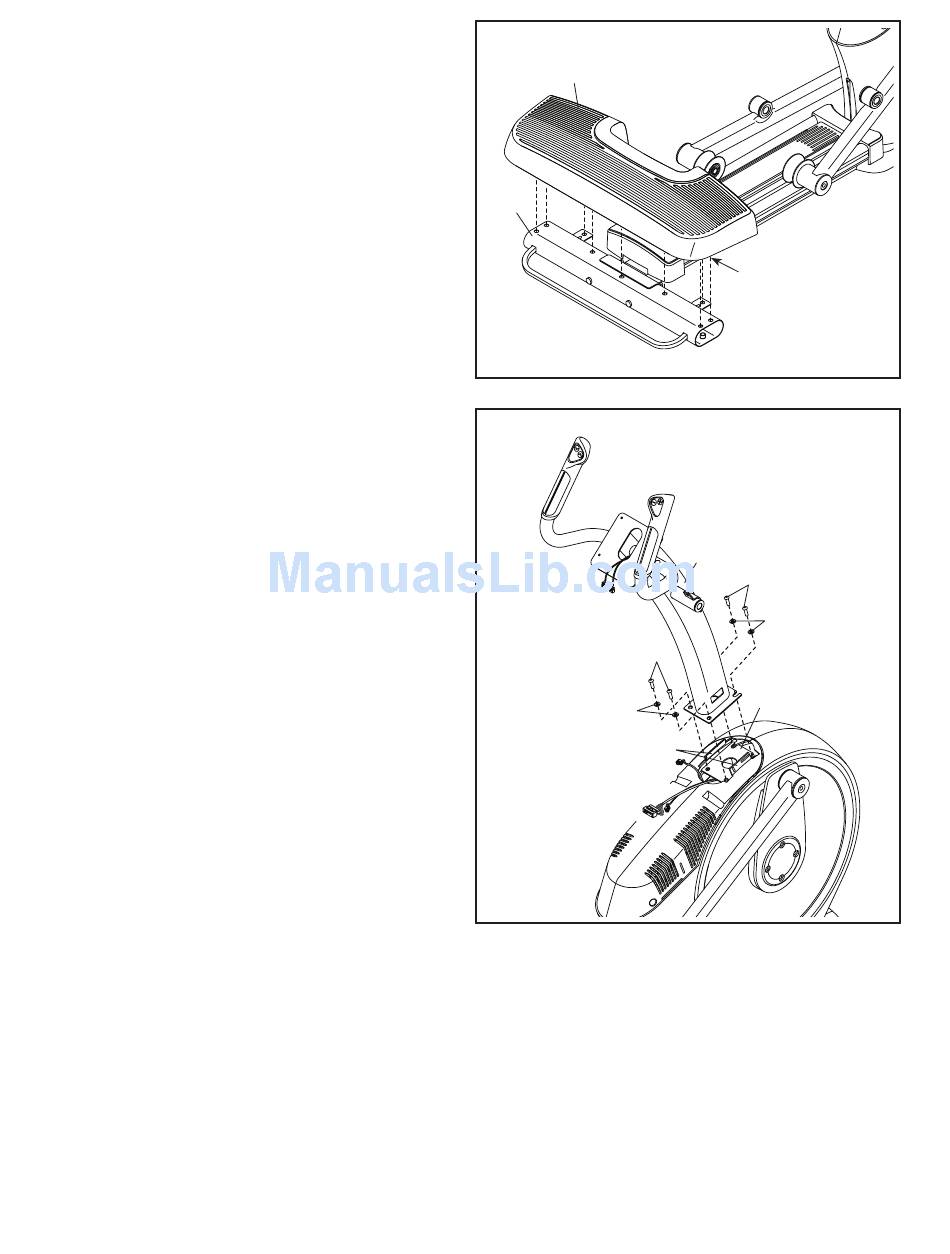

4. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
5. Tip: Avoid pinching the wires. Avoid damag-
ing the indicated plastic tabs. Set the Upright
(4) on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (99) and four M10 Split Washers (105).
Do not fully tighten the Screws yet.
4
15
2
5
105
Tabs
10
106
Avoid pinching the
wires and avoid
damaging the tabs
4
99
105
99
1
