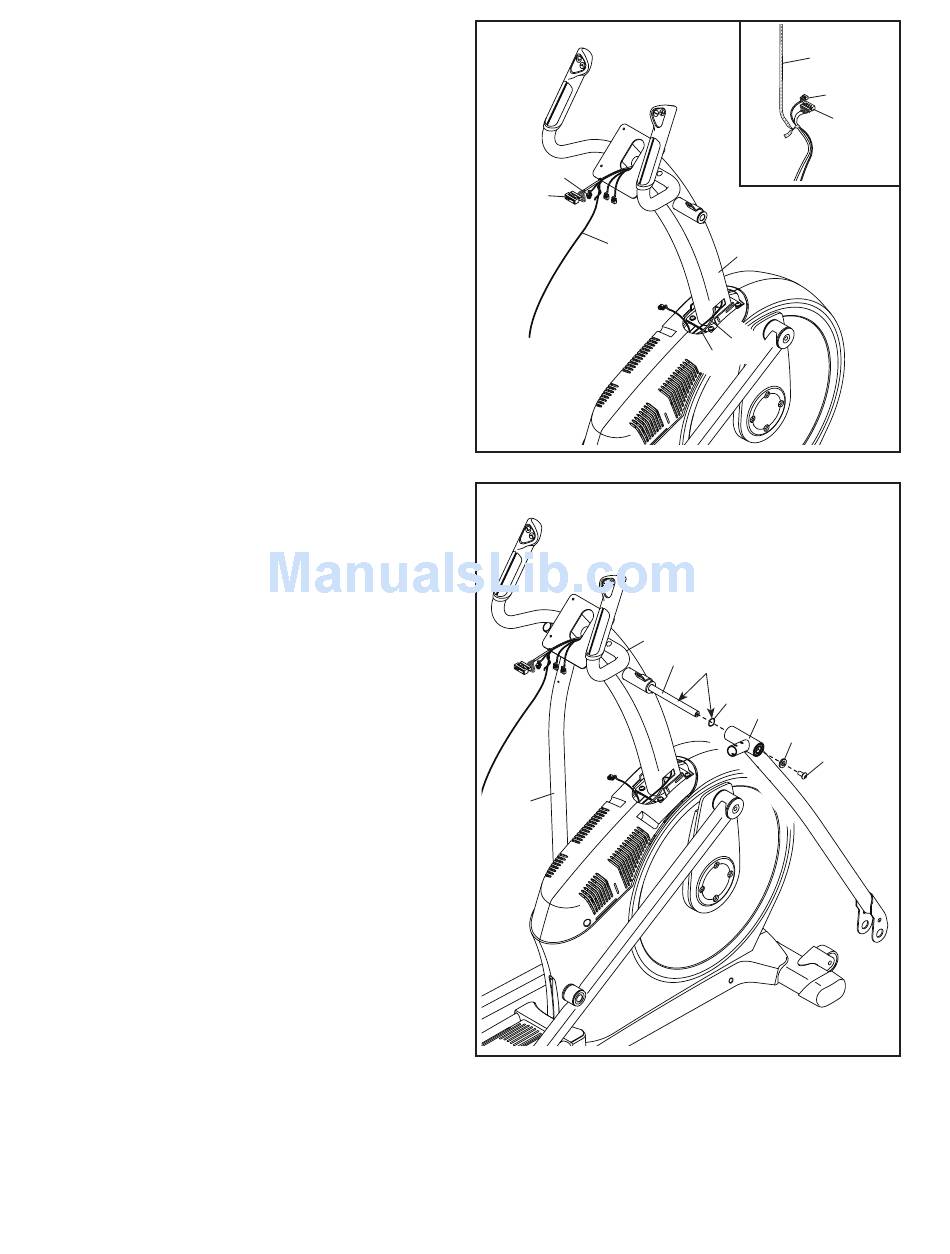

6. See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Upper Wire (110) and to the Fan Extension
Wire (146). Then, pull the upper end of the wire
tie until the Upper Wire and the Fan Extension
Wire are routed through the Upright.
Tip: To prevent the wires from falling into the
Upright (4), secure the wires with the wire tie.
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and
orient it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) and an M8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
6
146
110
Wire
Tie
7
46
11
Wire Tie
4
146
110
4
35
Grease
54
60
97
82
146
110
