No. Element
% (Percentage display)
OUTPUT
S
Q
B
q
Numerals
l I
D
I
N MAX MINAVG
16

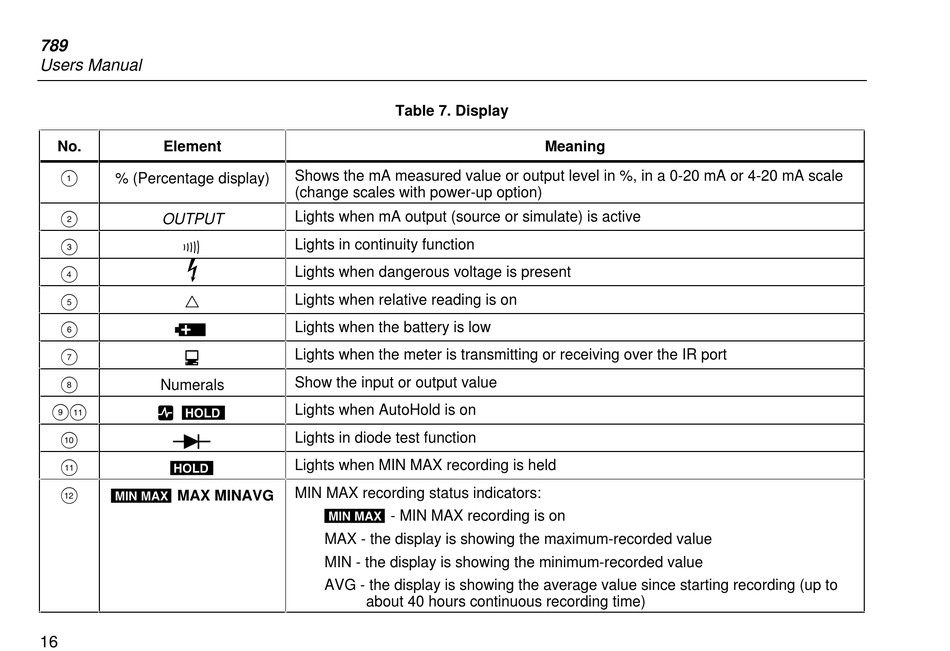

Table 7. Display
Shows the mA measured value or output level in %, in a 0-20 mA or 4-20 mA scale
(change scales with power-up option)
Lights when mA output (source or simulate) is active
Lights in continuity function
Lights when dangerous voltage is present
Lights when relative reading is on
Lights when the battery is low
Lights when the meter is transmitting or receiving over the IR port
Show the input or output value
Lights when AutoHold is on
Lights in diode test function
Lights when MIN MAX recording is held
MIN MAX recording status indicators:
N - MIN MAX recording is on
MAX - the display is showing the maximum-recorded value
MIN - the display is showing the minimum-recorded value
AVG - the display is showing the average value since starting recording (up to
about 40 hours continuous recording time)
Meaning
