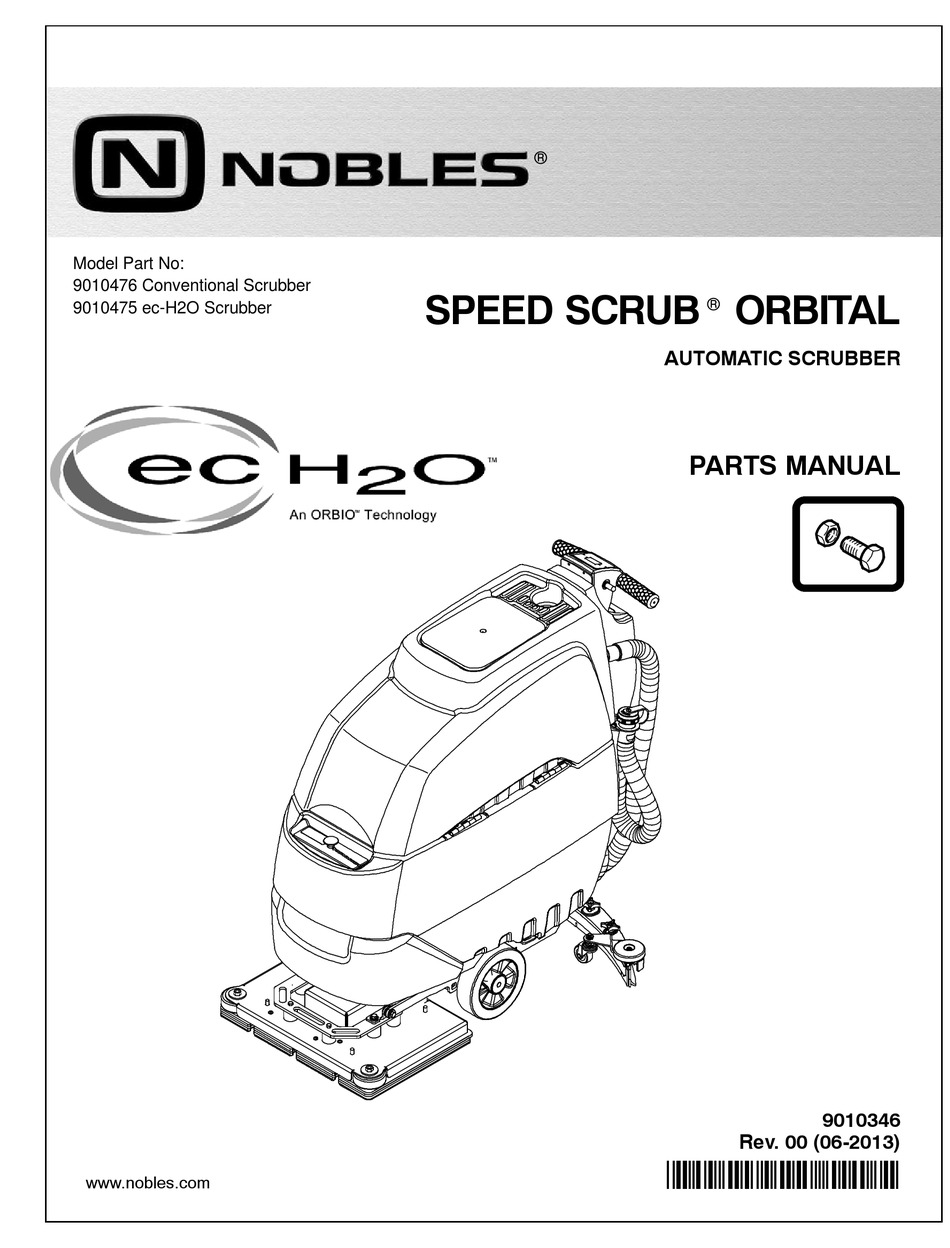

Model Part No:
9010476 Conventional Scrubber
SPEED SCRUB ORBITAL
®
9010475 ec-H2O Scrubber
AUTOMATIC SCRUBBER
PARTS MANUAL
9010346
Rev. 00 (06-2013)
*9010346*
www.nobles.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9010476 Conventional Scrubber and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles 9010476 Conventional Scrubber

Summary of Contents for Nobles 9010476 Conventional Scrubber

  • Page 1 ® Model Part No: 9010476 Conventional Scrubber SPEED SCRUB ORBITAL ® 9010475 ec-H2O Scrubber AUTOMATIC SCRUBBER PARTS MANUAL 9010346 Rev. 00 (06-2013) *9010346* www.nobles.com...
  • Page 2 - identifies parts included in assembly Installation Date - Tennant Company PO Box 1452 Minneapolis, MN 55440 USA Phone: (800) 553- 8033 or (763) 513- 2850 www.nobles.com Specifications and parts are subject to change without notice. Copyright E 2013 TENNANT Company, Printed in U.S.A.

  • Page 3: Table Of Contents

    ........Nobles Speed Scrub Orbital (06- 2013)

  • Page 4: General Recommended Maintenance Items

    Wheel Assy Kit (Includes Hardware) 9010704 (00000000- Water Distribution Assembly (Includes Hardware) 9011656 (00000000- Drive Assy Kit, Eccentric Complete  9010700 (00000000- Drive Assy Kit, Eccentric (Includes Hardware) 9011655 (00000000- Eccentric Bearing Assembly (Includes Hardware) Nobles Speed Scrub Orbital (06- 2013)

  • Page 5: Orbital Head Replacement Pad Group

    1205514 (00000000- Pad, Scrubbing, 20” X 14”, Blue (Pack of 10) 1205515 (00000000- Pad, Surface Prep, 20” X 14”, Maroon (Pack of 10) 9010674 (00000000- Backer Pad Assy Kit (Includes Pad with Velcro Strips) Nobles Speed Scrub Orbital (06- 2013)

  • Page 6: Recovery Tank Group

    STANDARD PARTS RECOVERY TANK GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 7 Screw, Hex, M6 X 1.00 X 16, Sems, Ss 34 01684 (00000000- Washer, Flat, 0.25 Ss 35 1068925 (00000000- Label, Do Not Add Detgt[Ec- H20] 36 1064823 (00000000- Label, Logo, 12.3l 4color [Ech2o Nobles]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 8: Vacuum Motor Group

    STANDARD PARTS VACUUM MOTOR GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 9 Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 1068577 (00000000- Muffler, Exhaust, Vacfan, 150mml [T2/T3] 1062016 (00000000- Isolator, Vib, .75d 10 1011962 (00000000- Bracket, Mtg, Vacuum 11 30406 (00000000- Clip, Keeper  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 10: Solution Tank Group

    STANDARD PARTS SOLUTION TANK GROUP 24 21 Nobles Speed Scrub Orbital (06- 2013)
  • Page 11 36 1035469 (00000000- Fitting, Plastic, Bm12 [Sight Tube] 37 1029829 (00000000- Hose, Drain, Soltn Tank [Ss3] 38 608915 (00000000- Clamp, Hose, Wir, 1.03 - 1.09 39 1206458 (00000000- Sleeve, Nylon 40 1206461 (00000000- Velcro, Strip Nobles Speed Scrub Orbital (06- 2013)

  • Page 12: Lower Control Console Group

    STANDARD PARTS LOWER CONTROL CONSOLE GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 13 Bushing, Sleeve, 6.5mmb 12mmd 18mml 14 07805 (00000000- Screw, Hex, M6 X 1.0 X 35, Ss 15 07515 (00000000- Washer, Lock, Int, 0.25, Ss 16 01684 (00000000- Washer,Flat 0.25, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 14: Upper Control Console Group

    STANDARD PARTS UPPER CONTROL CONSOLE GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 15 Plate, Slide, Console [Ss3] 29 01685 (00000000- Washer, Flat, 0.38b 0.88d .08, Ss 30 08709 (00000000- Nut, Hex, Lock, M8 X 1.25, Nl 31 607461 (00000000- Screw, Set, M8 X 1.25 X 35, Nl Nobles Speed Scrub Orbital (12- 2012)

  • Page 16: Component Panel Group

    STANDARD PARTS COMPONENT PANEL GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 17 Module, Drive 43 48732 (00000000- Screw, Pan, M6 X 1.0 X 10, Ss 44 07515 (00000000- Washer, Lock, Int, 0.25, Ss 45 43952 (00000000- Washer, Lock, Int, 0.31, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 18: Wheel Group, Drive Model

    STANDARD PARTS WHEEL GROUP, DRIVE MODEL Nobles Speed Scrub Orbital (12- 2012)
  • Page 19 36 08716 (00000000- Screw, Hex, M6 X 1.00 X 20, SS 37 1066505 (00000000- Bracket, Mtg, Sqge, Stl [T3] N/S 130773 (00000000- Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 20: Orbital Head Group

    STANDARD PARTS ORBITAL HEAD GROUP 356279_01 31 32 33 34 Nobles Speed Scrub Orbital (06- 2013)
  • Page 21 Sleeve, P/M, 0.31b 0.50d 0.5l (Note: Could be 1.00” L Qty 1) 1014020 (00000000- Roller, Lift, Dual Disk Head (00000000- Backer Pad, Red  ASSEMBLY INCLUDED IN ASSEMBLY N/A Not Available Separately. Included with Kit Nobles Speed Scrub Orbital (06- 2013)

  • Page 22: Orbital Head Eccentric Drive Assembly Group

    STANDARD PARTS ORBITAL HEAD ECCENTRIC DRIVE ASSEMBLY GROUP 355216_00 Nobles Speed Scrub Orbital (06- 2013)
  • Page 23 Lower Bearing Shield (00000000- Screw, 5/16- 18 x 1- 1/4” Flathead Socket Capscrew (00000000- Screw, 1/4- 20 x 1- 1/8” Flthd Sckt Capscrew w/Patch  ASSEMBLY INCLUDED IN ASSEMBLY N/A Not Available Separately. Included with Kit Nobles Speed Scrub Orbital (06- 2013)

  • Page 24: Orbital Head Water Distribution Assembly Group

    (00000000- CPVC 3/8” x 8” Tube (00000000- Nut, 10- 24 Nyloc (00000000- Washer, Flat #10 Zinc (00000000- Screw 10- 24 x 3/4”  ASSEMBLY INCLUDED IN ASSEMBLY N/A Not Available Separately. Included with Kit Nobles Speed Scrub Orbital (06- 2013)

  • Page 25: Orbital Head Wheel Assembly Group

    (00000000- Nut, 1/4- 20 Nyloc (00000000- Washer, 1/4” Flat Zinc (00000000- Wheel, 1” x 3” Ball Bearing (00000000- Bolt, 1/4”- 20 Zinc  ASSEMBLY INCLUDED IN ASSEMBLY N/A Not Available Separately. Included with Kit Nobles Speed Scrub Orbital (06- 2013)

  • Page 26: Orbital Head Lift Group

    STANDARD PARTS ORBITAL HEAD LIFT GROUP 356288_01 Nobles Speed Scrub Orbital (06- 2013)
  • Page 27 Nut, Hex, Lock, M8 X 1.25, Nl, Ss 16 1034731 (00000000- Screw, Hex, M6 X 1.00 X 16, Ss, Sems 17 1055999 (00000000- Bracket, Guide, Head, 60cm Dd [T3]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (06- 2013)

  • Page 28: Squeegee Group, 500 Mm

    STANDARD PARTS SQUEEGEE GROUP, 500 mm Nobles Speed Scrub Orbital (12- 2012)
  • Page 29 (Polyurethane Natural Optional) 18 1013933 (00000000- Strap Assy, Sqge, 500mm 19 1014079 (00000000- Clip, Hose, Gripper, 1.50id, Dbl, Blk Pp 20 1014026 (00000000- Hose, Vacuum, 1.5d X 57l, 2- Short Cuffs  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 30: Solution Group, Standard Model

    STANDARD PARTS SOLUTION GROUP, STANDARD MODEL Nobles Speed Scrub Orbital (12- 2012)
  • Page 31 (00000000- Washer, Lock, Int, #10, Ss 24 09738 (00000000- Screw, Hex, M5 X 0.8 X 12, Ss 25 1034731 (00000000- Screw, Hex, M6 X 1.00 X 16, Ss, Sems  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 32: Solution Group, Ec-H2O Model

    STANDARD PARTS SOLUTION GROUP, ec-H2O MODEL 21 22 Nobles Speed Scrub Orbital (12- 2012)
  • Page 33 Bracket, Mtg, Fltr 20 01683 (00000000- Washer, Flat, 10, Ss 21 07514 (00000000- Washer, Lock, Int, 10, Ss 22 09738 (00000000- Screw, Hex, M5 X 0.80 X 12, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)
  • Page 34 STANDARD PARTS SOLUTION GROUP, ec-H2O MODEL - CONT’D Nobles Speed Scrub Orbital (12- 2012)
  • Page 35 Fitting, Plstc, Str, Bm08/Pm08, Nyl 38 140957 (00000000- Hose, Pvc, Clr, 0.50id 0.75od 002.5l 39 63987- 1 (00000000- Fitting, Plstc, E90, Bm08/Bm08 40 1005302 (00000000- Filter, In- Line, Pf06/Pf06 080mesh 02.6l  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 36: Ec-H2O Module Assembly Breakdown, 9007970

    STANDARD PARTS ec-H2O MODULE ASSEMBLY BREAKDOWN, 9007970 Nobles Speed Scrub Orbital (12- 2012)
  • Page 37 18 1037032 (00000000- Housing, Bottom 19 1054776 (00000000- Grommet, Blind 20 9007969 (00000000- Controller Kit, Replmt [Ec- H2o] 21 1018155 (00000000- Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 38: Battery And Cable Group, 12V/155 Ah

    STANDARD PARTS BATTERY AND CABLE GROUP, 12V/155 AH Nobles Speed Scrub Orbital (12- 2012)
  • Page 39 Cap, Battery (Short Black - Standard) 611221 (00000000- Boot, Terminal, Battery, 25.4mm, Blk 1015941 (00000000- Harness, Battery 130364 (00000000- Cable, 06ga 15.0l Blk .31ring /.38ring 1059486 (00000000- Tray, Battery [Ss3 / T3]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 40: Electrical Diagram Standard

    2 BRN 12 BRN BRUSH MOTOR 25 AMP 1A RED 13C BLK 10 TAN 20 TAN VACUUM MOTOR 7.5 AMP 1E RED 1E RED 18 GRY 28 GRY 13E BLK FaST OPTION FaST PUMP MOTOR Nobles Speed Scrub Orbital (12- 2012)

  • Page 41: Electrical Diagram, Ec-H2O Model

    8 GRY 9 WHT J5- 3 J5- 4 SPA A SPARGER 7 PUR 13 BLK J5- 6 J5- 8 SPA B 3 ORG J5- 5 CELL A 4 YEL J5- 7 CELL B CELL Nobles Speed Scrub Orbital (12- 2012)

  • Page 42: Wire Harness Group, Ec- H2O Option

    STANDARD PARTS WIRE HARNESS GROUP, ec- H2O OPTION Nobles Speed Scrub Orbital (12- 2012)
  • Page 43 WIRE HARNESS GROUP, ec- H2O OPTION Ref. Part No. Serial Number Description Qty. 1055408 (00000000- Harness Assy, Wire [T3e Ec- H2o]  1047470 (00000000- Fuse, Blade, 010a, 32vdc, Red 222290 (00000000- Diode, Ele, Plug  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 44: Wire Harness Group, Console

    STANDARD PARTS WIRE HARNESS GROUP, CONSOLE Nobles Speed Scrub Orbital (12- 2012)
  • Page 45 STANDARD PARTS WIRE HARNESS GROUP, CONSOLE Ref. Part No. Serial Number Description Qty. 1032325 (00000000- Harness, Wire, Console, Drive [Ss3] Nobles Speed Scrub Orbital (12- 2012)

  • Page 46: Wire Harness Group, Main

    STANDARD PARTS WIRE HARNESS GROUP, MAIN Nobles Speed Scrub Orbital (12- 2012)
  • Page 47 STANDARD PARTS WIRE HARNESS GROUP, MAIN - CONT’D Nobles Speed Scrub Orbital (12- 2012)
  • Page 48 Part No. Serial Number Description Qty. 1048337 (00000000- Harness, Main, Drive [Ss3]  1016040 (00000000- Fuse, Blade, 025a, 32vdc 762516 (00000000- Fuse, Blade, 030a, 32vdc 222290 (00000000- Diode, Ele, Plug  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 49: Wire Harness Group, Frame, Drive Model

    STANDARD PARTS WIRE HARNESS GROUP, FRAME, DRIVE MODEL Ref. Part No. Serial Number Description Qty. 1019397 (00000000- Harness, Frame, Drive [T3 - Na] Nobles Speed Scrub Orbital (12- 2012)

  • Page 50: Options

    OPTIONS ON-BOARD BATTERY CHARGER GROUP, STANDARD MODEL Nobles Speed Scrub Orbital (12- 2012)
  • Page 51 10 1026330 (00000000- Cord, Power,1.0mm2 X 2.5 Meters [ China] 10 1026325 (00000000- Cord, Power, 1.0mm2 X 2.5 Meters [Aus] 10 1032849 (00000000- Cord, Power, 4.5 Meter, Blk [Ce]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 52: On-Board Battery Charger Group, Ec-H2O Model

    OPTIONS ON-BOARD BATTERY CHARGER GROUP, ec-H2O MODEL Nobles Speed Scrub Orbital (12- 2012)
  • Page 53 Cord, Power, 4.5 Meter, Blk [Ce] 12 1034731 (00000000- Screw, Hex, M6 X 1.00 X 16, Ss, Sems 13 1046631 (00000000- Knob,Rnd,19mmod,M6x20,Stud,Plstc,Pl 14 1045966 (00000000- Brkt, Mntg, Chrgr [Ss3] W/Echo  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 54: Parking Brake Group

    OPTIONS PARKING BRAKE GROUP Nobles Speed Scrub Orbital (12- 2012)
  • Page 55 Screw, Hex, M6 X 1.00 X 25, Ss 41579 (00000000- Washer, Flat, #08, Ss 10 33932 (00000000- Nut, Hex, Lock, M4 X 0.70, Nl, Ss 11 08712 (00000000- Nut, Hex, Lock, M6 X 1.00, Ss, Nl  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 56: Emergency Stop Button Group

    OPTIONS EMERGENCY STOP BUTTON GROUP Ref. Part No. Serial Number Description Qty. 9003350 (00000000- Kit, E- Stop  1011735 (00000000- Switch, Safety, Shutoff  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed Scrub Orbital (12- 2012)

  • Page 57: Documentation Group

    9010343 (00000000- Manual, Oprtr [SpeedScrub Orbital, En] 9010344 (00000000- Manual, Oprtr [SpeedScrub Orbital, Es] 9010345 (00000000- Manual, Oprtr [SpeedScrub Orbital, Fr] 9010346 (00000000- Manual, Parts [SpeedScrub Orbital] 9010347 (00000000- Instr, Wall Chart [SpeedScrub Orbital] Nobles Speed Scrub Orbital (12- 2012)
