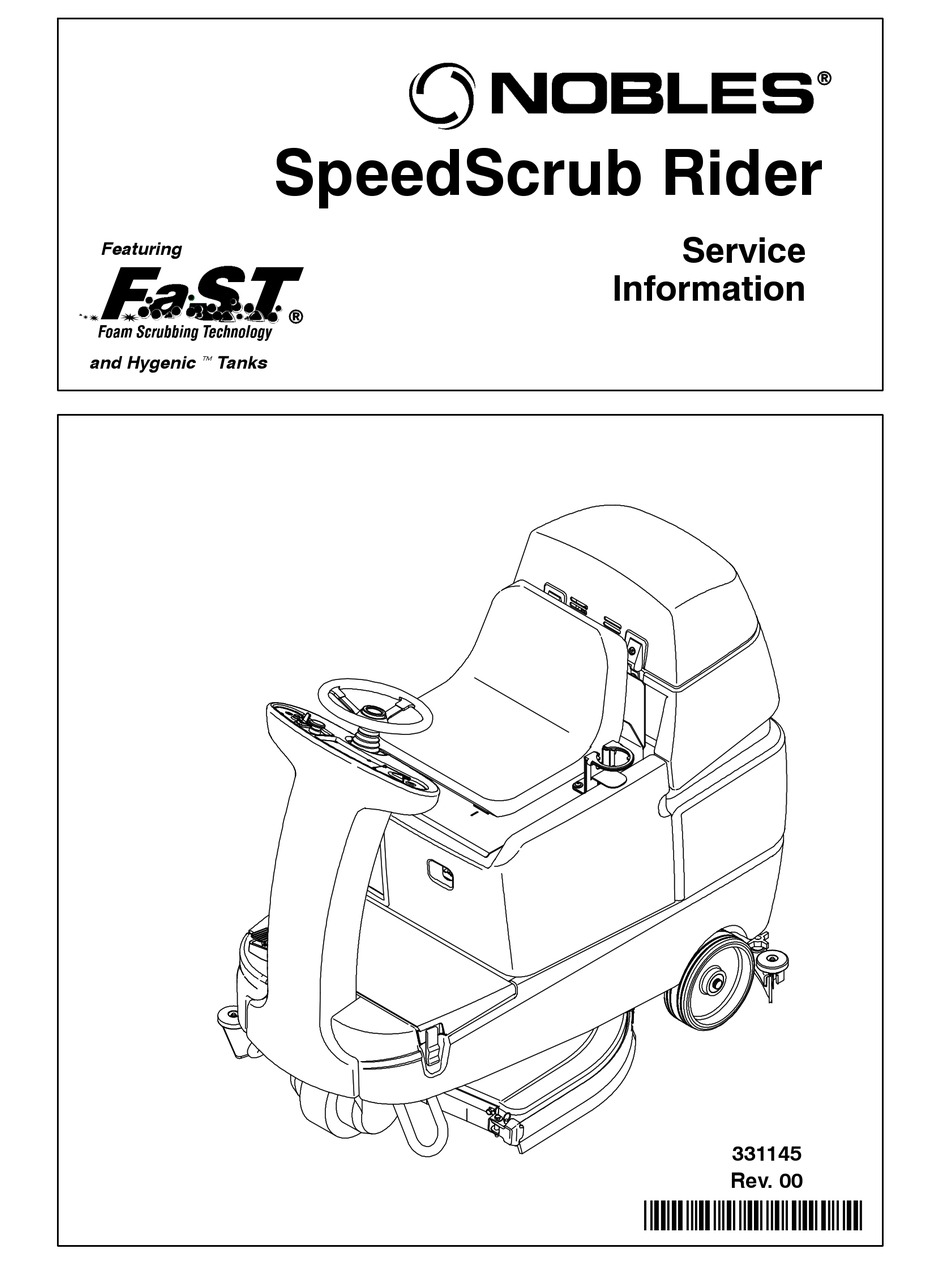

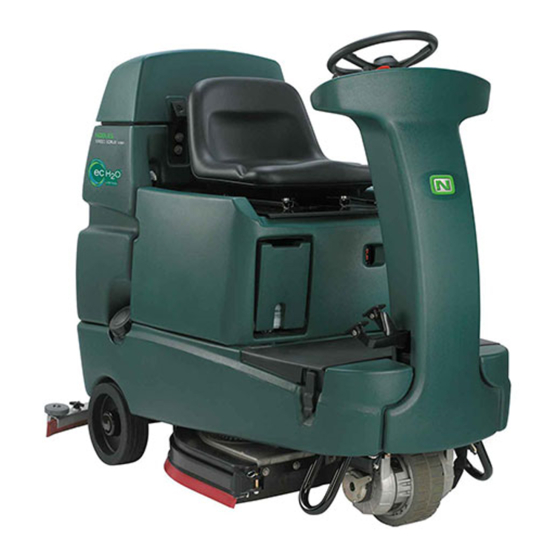

  • Page 1 ® SpeedScrub Rider Service Featuring Information ® and Hygenic Tanks 331145 Rev. 00 *331145*...
  • Page 2 D The machine is maintained with NOBLES supplied or approved parts. Manual Number -- 331145 Revision: 00 Published: 12--04 Nobles and the FaST Foam Scrubbing Technology logo are United States registered trademarks of Tennant Company. Copyright E 2004 NOBLES, Printed in U.S.A.
  • Page 3: Table Of Contents

    Table of Contents Electrical Troubleshooting Information ..................1 Commonly Used Electrical Symbols & Terms................ 2 Ladder Schematic ........................3 Wire Harness Group....................... 5 Key OFF, Operator NOT on Seat................... 9 Key OFF, Battery Charger Plugged In ................. 10 Key ON, Operator on Seat ....................11 Tank Level Sensors......................
  • Page 5: Electrical Troubleshooting Information

    Speed Scrub ELECTRICAL Troubleshooting Information BEFORE CONDUCTING TESTS: * Read and Follow ALL Safety Warnings and Precautions in Operator's Manual * Always use an ESD (Electrostatic Discharge) strap when working near the Control Board * Be cautious when working near Control Board – Battery voltage is always present, even with Key OFF * Always unplug Positive Battery Cable when removing or replacing components...
  • Page 6: Commonly Used Electrical Symbols & Terms

    Commonly Used Electrical Symbols & Terms NOTE: The term “NORMALLY” refers to the components’ “at rest” or “de-energized” position Wires Not Plug-in Wires Connected Battery Circuit Breaker Fuse Connected Together Connection Together Normally Open Normally Open Normally Closed Normally Open Normally Closed Indicates Movement Switch...
  • Page 7: Ladder Schematic

    Speed Scrub – Ladder Schematic (page 1 of 2) 1021038...
  • Page 8 Speed Scrub – Ladder Schematic (page 2 of 2) 1021038...
  • Page 9: Wire Harness Group

    Speed Scrub – Wire Harness Group (page 1 of 4)
  • Page 10 Speed Scrub – Wire Harness Group (page 2 of 4)
  • Page 11 Speed Scrub – Wire Harness Group (page 3 of 4)
  • Page 12 Speed Scrub – Wire Harness Group (page 4 of 4)
  • Page 13: Key Off, Operator Not On Seat

    Speed Scrub - Key OFF, Operator NOT on Seat 6 VDC 6 VDC 6 VDC 6 VDC 13 BLK 1 RED 1 RED 1 RED 13 BLK 13 BLK STANDOFF 4 CHARGER PLUG 1 RED CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17...
  • Page 14: Key Off, Battery Charger Plugged In

    Speed Scrub - Key OFF, Battery Charger Plugged In 6 VDC 6 VDC 6 VDC 6 VDC 13 BLK 1 RED 1 RED 1 RED 13 BLK 13 BLK STANDOFF 4 CHARGER PLUG 1 RED CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17...
  • Page 15: Key On, Operator On Seat

    Speed Scrub - Key ON, Operator on Seat 6 VDC 6 VDC 6 VDC 6 VDC 13 BLK 1 RED 1 RED 1 RED 13 BLK 13 BLK STANDOFF 4 CHARGER PLUG 1 RED CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17 LOGIC GROUND...
  • Page 16: Tank Level Sensors

    Speed Scrub – Tank Level Switches key ON CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 13 BLK 1 RED 1 RED 1 RED 13 BLK 13 BLK STANDOFF 4 CHARGER PLUG 1 RED CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17...
  • Page 17: Horn & Hour Meter Systems

    Speed Scrub – Horn & Hour Meter Systems key ON, operator on seat, in motion OR Vacuum Fan running (for Hour Meter) CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED...
  • Page 18: Propel Forward System

    Speed Scrub – Propel Forward System key ON, operator on seat, propel pedal depressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17 LOGIC GROUND PIN J6-35 MAIN...
  • Page 19: Propel Reverse System

    Speed Scrub – Propel Reverse System key ON, operator on seat, propel pedal depressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17 LOGIC GROUND PIN J6-35 MAIN...
  • Page 20: Braking System

    Speed Scrub – Braking System key ON, operator on seat, brake pedal depressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17 LOGIC GROUND PIN J6-35 MAIN CONTACTOR...
  • Page 21: Scrub Head & Squeegee Actuator Systems

    Speed Scrub – Scrub Head & Squeegee Actuator Systems (page 1 of 2) key ON, operator on seat, forward travel, propel pedal depressed, One Step Scrub Button pressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY...
  • Page 22 Speed Scrub – Scrub Head & Squeegee Actuator Systems (page 2 of 2) Actuator Voltage Data Actuator Travel Direction Wire # Color Polarity Notes − Purple Voltage at actuator connector will be DOWN "+" Gray approx. 24 VDC for 2 seconds, then Squeegee approx.
  • Page 23: Scrub Brush Motors System

    Speed Scrub – Scrub Brush Motors System key ON, operator on seat, forward travel, propel pedal depressed, One Step Scrub Button pressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED...
  • Page 24: Vacuum Fan System

    Speed Scrub – Vacuum Fan System key ON, operator on seat, forward travel, One Step Scrub Button pressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17 LOGIC GROUND...
  • Page 25: Fast System

    Speed Scrub – FaST System key ON, operator on seat, forward travel, propel pedal depressed, One Step Scrub Button pressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17...
  • Page 26: Conventional Solution System

    Speed Scrub – Conventional Solution System key ON, operator on seat, forward travel, propel pedal depressed, One Step Scrub Button pressed CONDITIONS: 6 VDC 6 VDC 6 VDC 6 VDC 1 RED 13 BLK STANDOFF 4 CONTROL BOARD EMERGENCY STOP SWITCH 1 RED 1 RED PIN J6-17...
  • Page 27: Led Locations & Descriptions

    Speed Scrub – LED Locations & Descriptions...
  • Page 28: Operational Modes & Interlocks

    Speed Scrub – Operational Modes & Interlocks Mode Entry Sequence Indicator Function −Directional Switch Forward −Directional Switch in Forward position Forward Forward movement of machine −Propel Pedal Depressed −Directional Switch Reverse −Directional Switch in Reverse position Reverse Reverse movement of machine −Horn Sounding continuously ON &...
  • Page 29: Diagnostic & Fault Alarms

    Speed Scrub – Diagnostic & Fault Alarms Alarm Codes Directional Mode Entry Sequence Alarm Sequence Function Switch Alerts nearby persons of machine backward movement (Note: Back- Directional switch Back-Up Alarm REVERSE up alarm will not sound when Horn sounds beep cycle (repeats) placed in REVERSE machine is placed in "Hospital"...
  • Page 30: Diagnostic & Configuration Modes

    Speed Scrub – Diagnostic & Configuration Modes Mode Entry Sequence Indicator Function Upper Brush Pressure LED blinks Tens of days of month, Upper Solution Flow LED blinks Single day of month Display Press and hold One Step Middle Brush Pressure LED blinks Tens of Software Button, turn key switch ON, Blinking Brush Pressure and Solution...
  • Page 31: Display Software Revision Mode

    Speed Scrub – Display Software Revision Mode TO ENTER: • Press and hold One Step Button • Turn key switch ON, wait 10 seconds • Release One Step Button READING THE SOFTWARE REVISION: •Upper Brush Pressure LED blinks TENS of DAYS of MONTH, Upper Solution Flow LED blinks SINGLE DAY of MONTH •Middle Brush Pressure LED blinks TENS of MONTH, Middle Solution Flow LED blinks SINGLE MONTH...
  • Page 32: Self Test Mode

    Speed Scrub – Self Test Mode TO ENTER: • Press and hold FaST & Vacuum Fan/Squeegee Buttons • Turn key switch ON, wait 10 seconds • Release Buttons • The entire Self Test takes approximately 40 seconds AFTER THE SELF TEST IS COMPLETE: •...
  • Page 33: Input Display Mode

    Speed Scrub – Input Display Mode...
  • Page 34: Manual Mode

    Speed Scrub – Manual Mode...
  • Page 35: Propel / Brake Diagnostics

    Speed Scrub – Propel/Brake Diagnostics TO ENTER: • Press and hold FaST & Increase Brush Pressure (+) Buttons • Turn key switch ON • Release Buttons after FaST LED (if in Forward) or Vacuum Fan/Squeegee LED (if in Reverse) is lit TEST ACTION INDICATOR...
  • Page 36: Battery Select Mode & Voltage Levels

    Speed Scrub – Battery Select Mode & Voltage Levels Battery Select Mode TO ENTER: • Press and hold Increase Solution Flow (+) Button • Turn key switch ON • Release Button after one of the Battery LED’s begins blinking BDI Indicator LED's Location / Type Worldwide / Wet Europe** / Wet...
  • Page 37: Reverse Alarm & Propel Speed Select Modes

    Speed Scrub – Reverse Alarm & Propel Speed Select Modes Reverse Alarm Select Mode Reverse Alarm Select Mode allows enabling or disabling of the Backup Alarm TO ENTER: • Put directional switch in Reverse • Press & Hold Horn Button •...
  • Page 38: Inputs & Outputs Table

    Speed Scrub – Inputs & Outputs Table...
  • Page 39: Torque Standard

    Torque Standard Inch Fasteners Grade 5 Thread Headless Socket Grade 2 Cutting Socket Square Head Set Carriage Thread Thread Stainless Size Grade 1 Bolts Rolling Grade 8 Screws Screws Steel 4 (.112) (5) -- (6.5) (4) -- (6) 5 (.125) (6) -- (8) (9) -- (11) 6 (.138)
  • Page 40 Torque Standard Inch Fasteners Mechanical Properties Yield Tensile Strength Strength Fastener Nominal Proof Load Identification Type Material Size (PSI) Min (PSI) Min (PSI) #2 Thru Low or 55,000 Grade 1 Medium Machine Carbon 1/4 Thru Screws Steel 33,000 36,000 60,000 1 1/2 1/4 Thru 55,000...
  • Page 41: Metric Fasteners

    Torque Standard METRIC Fasteners Thread Stainless 4.8/5.6 10.9 12.9 Size Screws Steel 43-- 56 Ncm 99-- 128 Ncm 139-- 180 Ncm 166-- 215 Ncm 61-- 79 Ncm 99-- 128 Ncm 223-- 290 Ncm 316-- 410 Ncm 381-- 495 Ncm 219-- 285 Ncm 193-- 250 Ncm 443-- 575 Ncm 624-- 810 Ncm 747-- 970 Ncm 427-- 554 Ncm...
  • Page 42 Torque Standard METRIC Fasteners Mechanical Properties Yield Point Tensile Type .2% Elongati Strength Fastener Nominal Yield Stress (Min) MPa (Min) MPa Identification Class Material Size (Min) MPa Low or 3.6/4.6 Medium (27,550 PSI) (47,850 PSI) Carriage Carbon Bolts Steel (34,800 PSI) (58,000 PSI) 4.8 Pan Low or...
  • Page 43: Nylon Insert Lock Nuts

    Torque Standard Nylon Insert Lock Nuts Nut-Hex Light THIN (Cad or Zinc Plated) Size Grade 2 Bolt Grade 5 Bolt 1/4---20 5---8 7---8 1/4---28 4---6 5---6 5/16---18 8---14 13---14 5/16---24 9---14 13---14 3/8---16 12---18 15---18 3/8---24 12---18 16---18 1/2---13 26---40 37---40 1/2---20 27---42...
  • Page 44: Wheel Bolt And Nuts

    Torque Standard Wheel Bolt and Nuts Stud or Bolt Size Recommended Torque in and Thread Foot Pounds 7/16---20 75---85 1/2---20 75---85 9/16---18 80---90 5/8---18 140---170 Wheel Bearing Adjustment 1. Tighten the spindle nut to 12 ft lbs while turning the wheel assembly forward by hand to fully seat the bearings.
  • Page 45: Tightening Nuts On Tapered Shafts

    Tightening Nuts on Tapered Shafts +.0010 +0,025 .3730 -- .00000 /9,474 -- 0 1”-- 20 UNEF-- 2B SLOTTED KEY WIDTH HEX LOCKNUT PER SAE J-- 501 (EXCEPT 1.50/38,1 ACROSS FLATS). RECOMMENDED TOQUE TO Example of 175 FT LB PLUS TORQUE recommended REQUIRED TO ALIGN SLOTTED NUT TO SHAFT...
  • Page 46: Shoulder Bolts

    Torque Standard Shoulder Bolts Recommended Seating Nominal Diameter Thread Size Torque .250 10 -- 24 45 In Lbs .312 1/4-- 20 9 Ft Lbs .375 5/16-- 18 19 Ft lbs .500 3/8-- 16 32 Ft Lbs .625 1/2-- 13 82 Ft Lbs .750 5/8 -- 11 164 Ft Lbs...
  • Page 47: Taper Lockr Bushings

    Taper Lock Bushings IMPORTANT: Follow all these instructions carefully. This is necessary to insure satisfactory performance. 1008 to 3030 To Install 1. Clean shaft, bore and outside of bushing, and hub bore of all oil, lacquer, and dirt. 2. Insert bushing in hub. Match the hole pattern, not threaded holes (each hole will be threaded on one side only).
  • Page 48: Sequence Tightening

    Sequence Tightening On some assemblies, it is advisable to use a crisscross pattern. Always avoid starting in one spot and tightening one after another in a row. Remember that the object is to tighten the parts in such a manner that even stress is set up throughout, at the same time allowing the parts to be drawn together so that their mating surfaces will contact.
