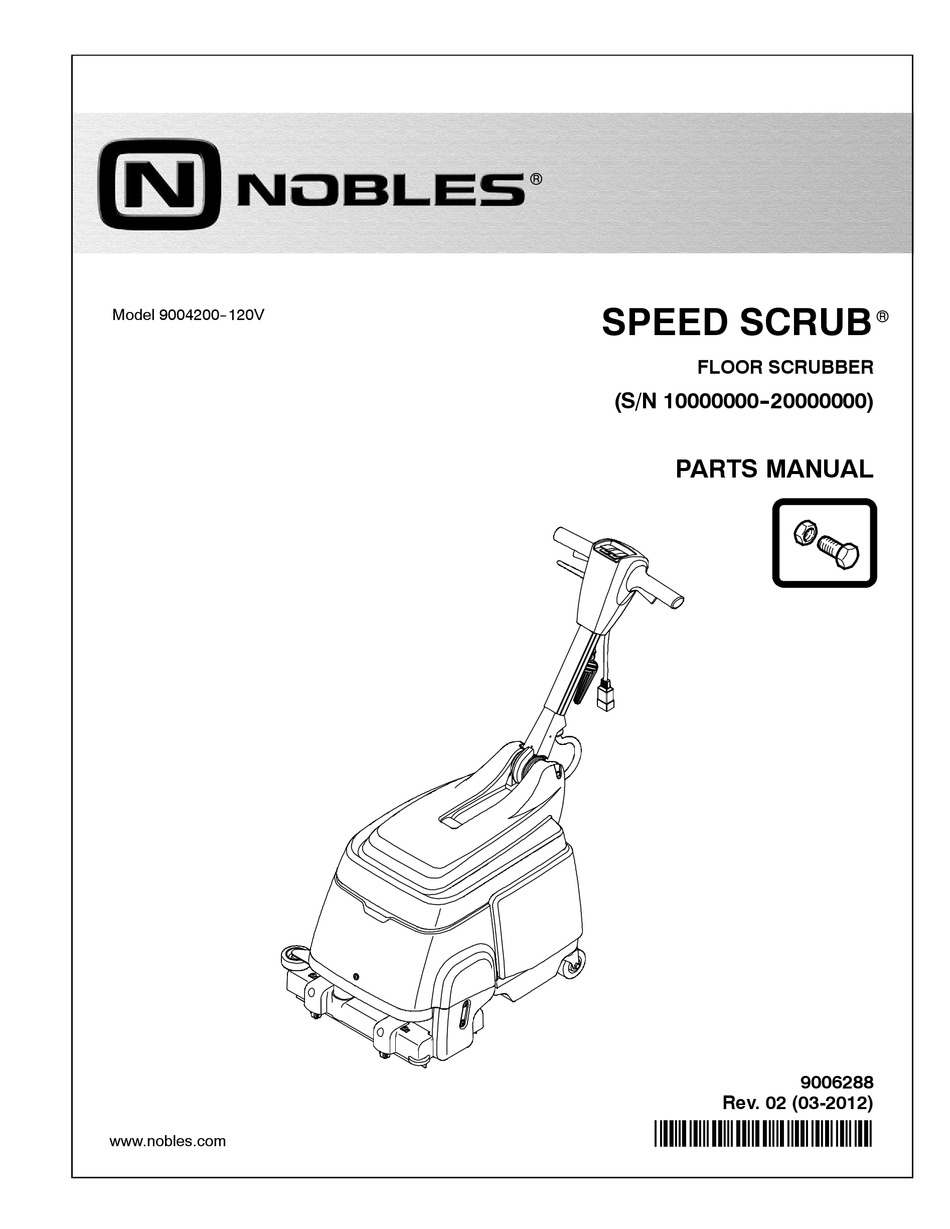

SPEED SCRUB
Model 9004200--120V
®
FLOOR SCRUBBER
(S/N 10000000- -20000000)
PARTS MANUAL
9006288
Rev. 02 (03-2012)
*9006288*
www.nobles.com
Home
Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9004200--120V and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles 9004200--120V

Summary of Contents for Nobles 9004200--120V

  • Page 1 ® SPEED SCRUB Model 9004200--120V ® FLOOR SCRUBBER (S/N 10000000- -20000000) PARTS MANUAL 9006288 Rev. 02 (03-2012) *9006288* www.nobles.com Home Find... Go To..
  • Page 2 Installation Date - - Tennant Company PO Box 1452 Minneapolis, MN 55440 Phone: (800) 553--8033 or (763) 513--2850 www.nobles.com Specifications and parts are subject to change without notice. Copyright E 2009--2012 TENNANT Company, Printed in U.S.A. Home Find... Go To..

  • Page 3: Table Of Contents

    SQUEEGEE GROUP, FRONT AND REAR ..ELECTRICAL DIAGRAM ..... Nobles Speed ScrubR (03- -2012) Home Find... Go To..

  • Page 4: Recommended Maintenance Items

    Brush, Scrub, 89mm Od X 386mm, Grit (Optional) 9008581 (10000000--20000000 Wheel Kit, Sqge, W/ Hdwr 1057241 (10000000--20000000 Blade Assy, Sqge, Inner, Ure 1050943 (10000000--20000000 Blade Assy, Sqge, Outer, Ure 1052876 (10000000--20000000 Gasket, Tank Nobles Speed Scrub15 Battery (03- -2012) Home Find... Go To..

  • Page 5: Recommended Maintenance Items

    RECOMMENDED MAINTENANCE ITEMS Nobles Speed Scrub15 Battery (05- -2011) Home Find... Go To..

  • Page 6: Handle Group

    STANDARD PARTS HANDLE GROUP 355054 Nobles Speed ScrubR (03- -2009) Home Find... Go To..
  • Page 7 Part No. Serial Number Description Qty. 9005511 (10000000--20000000 Handle, Nobles Speed Scrub 15”  9004323 (10000000--20000000 Cover, Handle Front/Rear Nobles Ss Kit  1039088 (10000000--20000000 Label, Logo, Handle [Nobles] 1037324 (10000000--20000000 Label, Opertnl, Instrmt Panl, Scrubber 602919 (10000000--20000000 Switch, Rocker, Dpdt, On / On...

  • Page 8: Frame Group

    STANDARD PARTS FRAME GROUP 355056 Nobles Speed ScrubR (03- -2012) Home Find... Go To..
  • Page 9 Screw, Hex, M8 X 1.25 X 16, Nl, Ss 25 1034805 (10000000--20000000 Bracket, Bumper Wheel N/S 1033825 (10000000--20000000 Harness, Chassis, Ele, Scrbr, [T--Rex]  ASSEMBLY INCLUDED IN ASSEMBLY N/S = NOT SHOWN Nobles Speed ScrubR (03- -2012) Home Find... Go To..

  • Page 10: Tanks And Shroud Group

    STANDARD PARTS TANKS AND SHROUD GROUP 355074 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 11 STANDARD PARTS TANKS AND SHROUD GROUP Ref. Part No. Serial Number Description Qty. 9004313 (10000000--20000000 Tank, Rec W/ Labels Nobles 3 Gal Kit  1039498 (10000000--20000000 Label, Side, Speed Scrub 9004285 (10000000--20000000 Handle, Tank Kit  24265 (10000000--20000000 Screw, Pan, Phl, M4 X 0.70 X 16, Ss...

  • Page 12: Tank Cover Group

    STANDARD PARTS TANK COVER GROUP 355055 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 13 STANDARD PARTS TANK COVER GROUP Ref. Part No. Serial Number Description Qty. 1037759 (10000000--20000000 Cover , Tanks, Upper, Nobles [Trex] 1035358 (10000000--20000000 Pin, Grvd, 0.375d, 1.25l 24555 (10000000--20000000 Ring, Retaining, Ext, 0.38d, [E--Ring] 1016399 (10000000--20000000 Screw, Hex, M8 X 1.25 X 30, Nl, Ss...

  • Page 14: Vacuum Fan Group

    STANDARD PARTS VACUUM FAN GROUP 355061 Nobles Speed ScrubR (03- -2009) Home Find... Go To..
  • Page 15 Nut, Hex, Lock, M6 X 1.00, Nl 13 630010 (10000000--20000000 Gasket, 12.7mm Th, 43mmid 73mmod 14 09007 (10000000--20000000 Screw, Hex, M6 X 1.00 X 25, Ss 15 1034069 (10000000--20000000 Plate, Vac Mounting Nobles Speed ScrubR (03- -2009) Home Find... Go To..

  • Page 16: Solution Group

    STANDARD PARTS SOLUTION GROUP 355060 Nobles Speed ScrubR (03- -2009) Home Find... Go To..
  • Page 17 Washer, Lock, Int, 08, Ss 14 41579 (10000000--20000000 Washer, Flat, 08, Ss 15 1034395 (10000000--20000000 Shroud, Splash, Nozzle [Trex] 16 1034582 (10000000--20000000 Nozzle Adapter, Qppm 17 1033942 (10000000--20000000 Nozzle [Qmvv 110--015] Nobles Speed ScrubR (03- -2009) Home Find... Go To..

  • Page 18: Scrub Head Group (S/N 10507590-- )

    STANDARD PARTS SCRUB HEAD GROUP (S/N 10507590- - 355156 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 19 32 01543 (10000000--20000000 Ring, Retaining, Ext, 0.39d, Basic 33 1030682 (10000000--20000000 Shaft, Idler Plug 34 1019349 (10000000--20000000 Screw, Trs, M6 X 1.00 X 16, Ss, Sems  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed ScrubR (05- -2011) Home Find... Go To..

  • Page 20: Scrub Head Group (S/N 10000000--10507589)

    STANDARD PARTS SCRUB HEAD GROUP (S/N 10000000- - 10507589) 355058 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 21 32 01543 (10000000--20000000 Ring, Retaining, Ext, 0.39d, Basic 33 1030682 (10000000--20000000 Shaft, Idler Plug 34 1019349 (10000000--20000000 Screw, Trs, M6 X 1.00 X 16, Ss, Sems  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed ScrubR (05- -2011) Home Find... Go To..

  • Page 22: Scrub Head Lift Group

    STANDARD PARTS SCRUB HEAD LIFT GROUP 355073 Nobles Speed ScrubR (03- -2012) Home Find... Go To..
  • Page 23 Screw, Hex, M8 X 1.25 X 25, Ss 22 140402 (10000000--20000000 Spring, Extn, 0.375od 0.045wir 01.8l, Mw 23 41128 (10000000--10467312 Nut, Low Crown, .31--18 24 240191 (10000000--10467312 Knob, Rnd, 1.00d 0.41l, .31--18x2.0l Stud Nobles Speed ScrubR (03- -2012) Home Find... Go To..

  • Page 24: Squeegee Group, Front And Rear

    STANDARD PARTS SQUEEGEE GROUP, FRONT AND REAR 355158 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 25 14 1057241 (10000000--20000000 Blade Assy, Sqge, Inner, Ure 15 1057243 (10000000--20000000 Retainer, Sqge, Inner, Acetal, Blk 16 33932 (10000000--20000000 Nut, Hex, Lock, M4 X 0.70, Nl, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles Speed ScrubR (03- -2012) Home Find... Go To..

  • Page 26: Electrical Diagram

    STANDARD PARTS ELECTRICAL DIAGRAM 1046178 Nobles Speed ScrubR (05- -2011) Home Find... Go To..
  • Page 27 STANDARD PARTS Nobles Speed ScrubR (03- -2009) Home Find... Go To..
