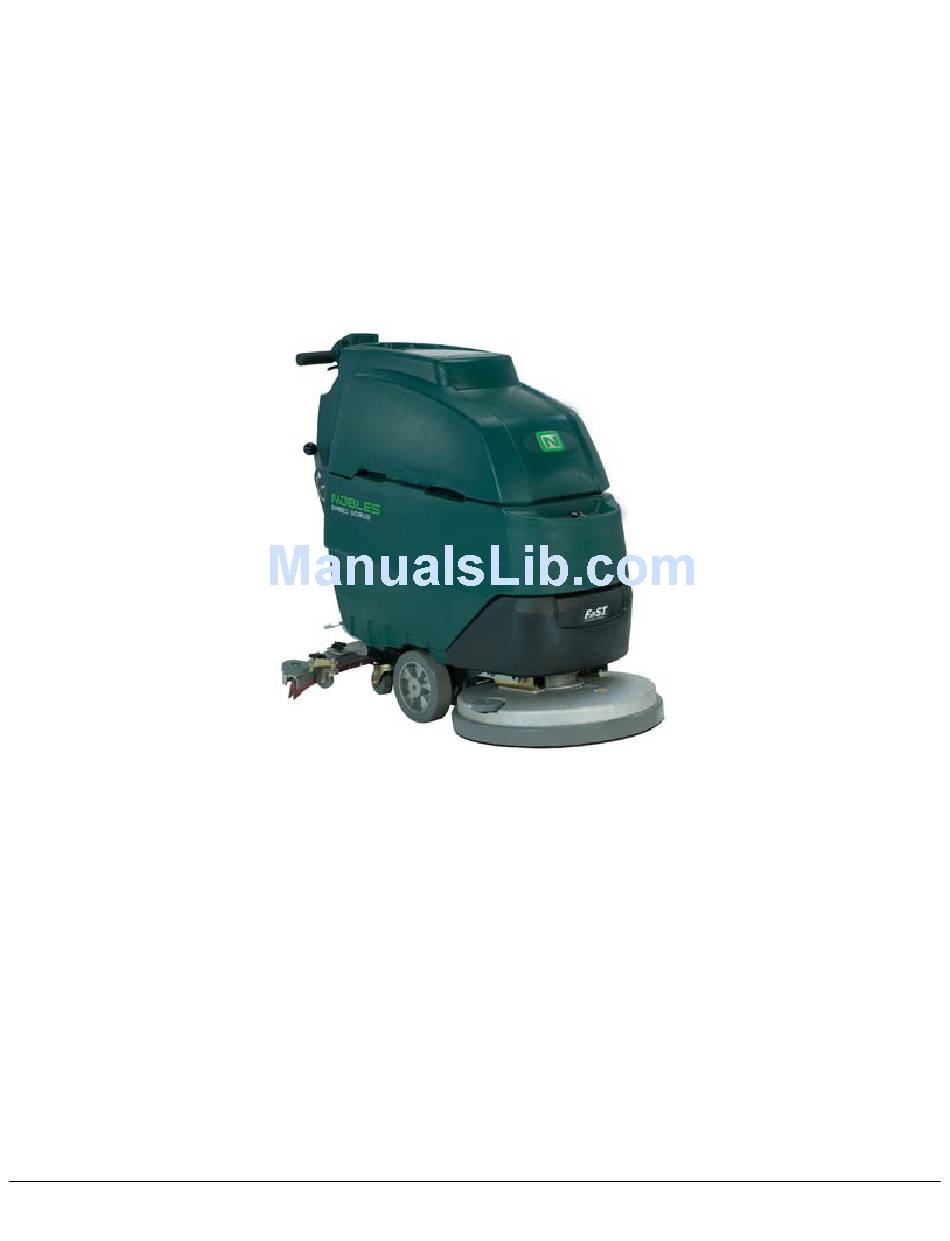

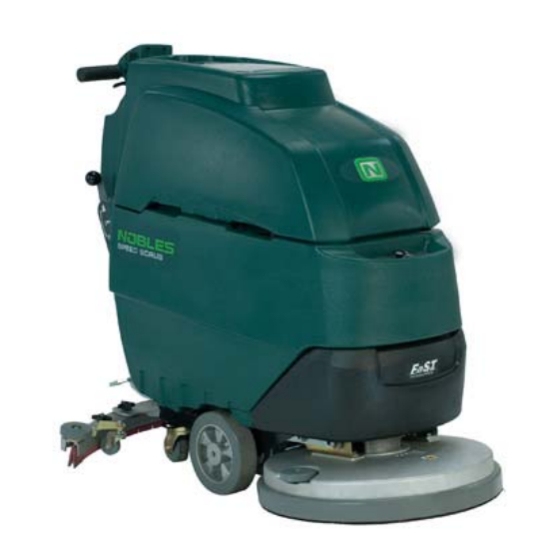

- Page 1 Nobles SS17-20 Walk-Behind Scrubber Product Guide Details Features, Advantages & Benefits © Tennant Company, 2007...
- Page 2 Model SS17-20 Walk-Behind Scrubber SOLUTION DELIVERY SYSTEM Feature Advantage Benefit Solution Tank Easily accessible solution tank. Quicker filling of the machine to save time and is much more Solution tank has 2 separate convenient if space is restricted, access points for filling.
- Page 3 Model SS17-20 Walk-Behind Scrubber Solution Sight Tube Sight tube at rear of machine Easier to use and more allows operator to see remaining convenient for the operators. solution so they can better judge how long before they need to refill Saves time by monitoring the the machine.
- Page 4 Model SS17-20 Walk-Behind Scrubber SCRUBBING SYSTEM Feature Advantage Benefit Scrubbing Path Disc Head Two choices of scrub head size Increases versatility of the machine. • for every application. 17” (430 mm), Allows for greater customization of • 20” (500 mm), Narrow width for superior the machine for the application.
- Page 5 Model SS17-20 Walk-Behind Scrubber Brush configurations for all types Versatile applications. Brushes 3 brush types available for both of hard floor surfaces. disc and cylindrical heads: • Soft Dyna Scrub, • Medium Poly • Aggressive Grit © Tennant Company, 2007...
- Page 6 Model SS17-20 Walk-Behind Scrubber Push button removal feature Reduces operator training Easy-to-Install Pad Drivers and allows operators to remove the requirements. disc brushes brush by just pressing one button to lock the drive motor, and then a quick twist on the pad or brush and it will release.
- Page 7 Model SS17-20 Walk-Behind Scrubber Brush Drive Motors Disc Head • Powerful brush/pad drive motor(s) Cleaner, safer floor surfaces. 1 horse power/.75 kW and high rpm for superior soil brush/pad drive motor removal from hard floor surfaces. Versatile applications. • 230 rpm Suitable for use on all types of hard floor surfaces.
-
Page 8: Recovery System
Model SS17-20 Walk-Behind Scrubber RECOVERY SYSTEM Feature Advantage Benefit Parabolic Squeegee The parabolic squeegee Cleaner, drier, safer floor surfaces. maintains equal suction pressure across the entire width of the squeegee to ensure full pick-up of all water. The squeegee frame is made Decreased maintenance costs. - Page 9 Model SS17-20 Walk-Behind Scrubber Simple mechanical raise and Decreases maintenance costs and Squeegee Raise and Lower lower of the squeegee. Vacuum is very easy to use. Handle fan automatically switches on when squeegee is lowered and switches off when squeegee raised.
- Page 10 Model SS17-20 Walk-Behind Scrubber No adjustments required for the Makes operation and maintenance Factory Set “No Hassle” squeegee. easier and less costly. Operator can Squeegee not tweak the squeegee adjustment. Allows for quick and easy Decreases maintenance costs and No Tool Squeegee Change replacement of squeegee blades.
- Page 11 Model SS17-20 Walk-Behind Scrubber © Tennant Company, 2007...
- Page 12 Model SS17-20 Walk-Behind Scrubber Powerful vacuum for superior Increases operator productivity. Vacuum System solution recovery from all types of • .5 hp / .37 kW vacuum motor floor surfaces. Cleaner, drier, safer floor surfaces. • 2 stage • 65 cubic feet of airflow (cfm) Easy-to-access, easy-to-maintain Versatile applications.
- Page 13 Model SS17-20 Walk-Behind Scrubber PROPULSION SYSTEM Feature Advantage Benefit Battery System • • Increases operator productivity. 24 volt system lead acid 17” (430mm) pad assist drive batteries has a 105AH standard battery • • Ease of maintenance. Approx. 2.5 - 3.0 hour run 20”...
- Page 14 Model SS17-20 Walk-Behind Scrubber Allows operator to secure Increases safety when machine Optional parking brake machine if left on a non level unattended. surface. Brake in “off” position Brake in “on” position Increases safety and productivity High traction drive wheels...
- Page 15 Model SS17-20 Walk-Behind Scrubber CONTROLS AND OPERATIONS SYSTEM Feature Advantage Benefit The machine monitors the battery Save battery life and maximizes Low voltage cut out protection charge remaining and when it productivity. gets to 80% consumed the scrub brushes stop to warn the operator to finish the immediate work and return to the charging point.
- Page 16 Model SS17-20 Walk-Behind Scrubber Hospital quiet allows for operation Increases productivity and 68.5 dBa Sound level in noise sensitive areas for decreases costs of cleaning anytime cleaning Fits into tight spaces Increases areas that can be Compact maneuverable design scrubbed and increases productivity.
- Page 17 Model SS17-20 Walk-Behind Scrubber Helps reduce operator fatigue. Ease of operation. Comfortable Handle (See photograph below) Available for applications where Decreases maintenance costs. Optional Gel Cell batteries* lead acid batteries are not (Field Installed option) acceptable. 100AH gel battery. Adjusts for different operators...
- Page 18 Model SS17-20 Walk-Behind Scrubber All motors and electrical systems Increases safety. Full Circuit Breaker Protection are circuit breaker protected for safety. Decreases repair and maintenance costs. Easy reset feature on all circuit breakers. For more information about this product, or to answer any questions you may have regarding this product learning tutorial, please contact the Education Department in Minneapolis.
