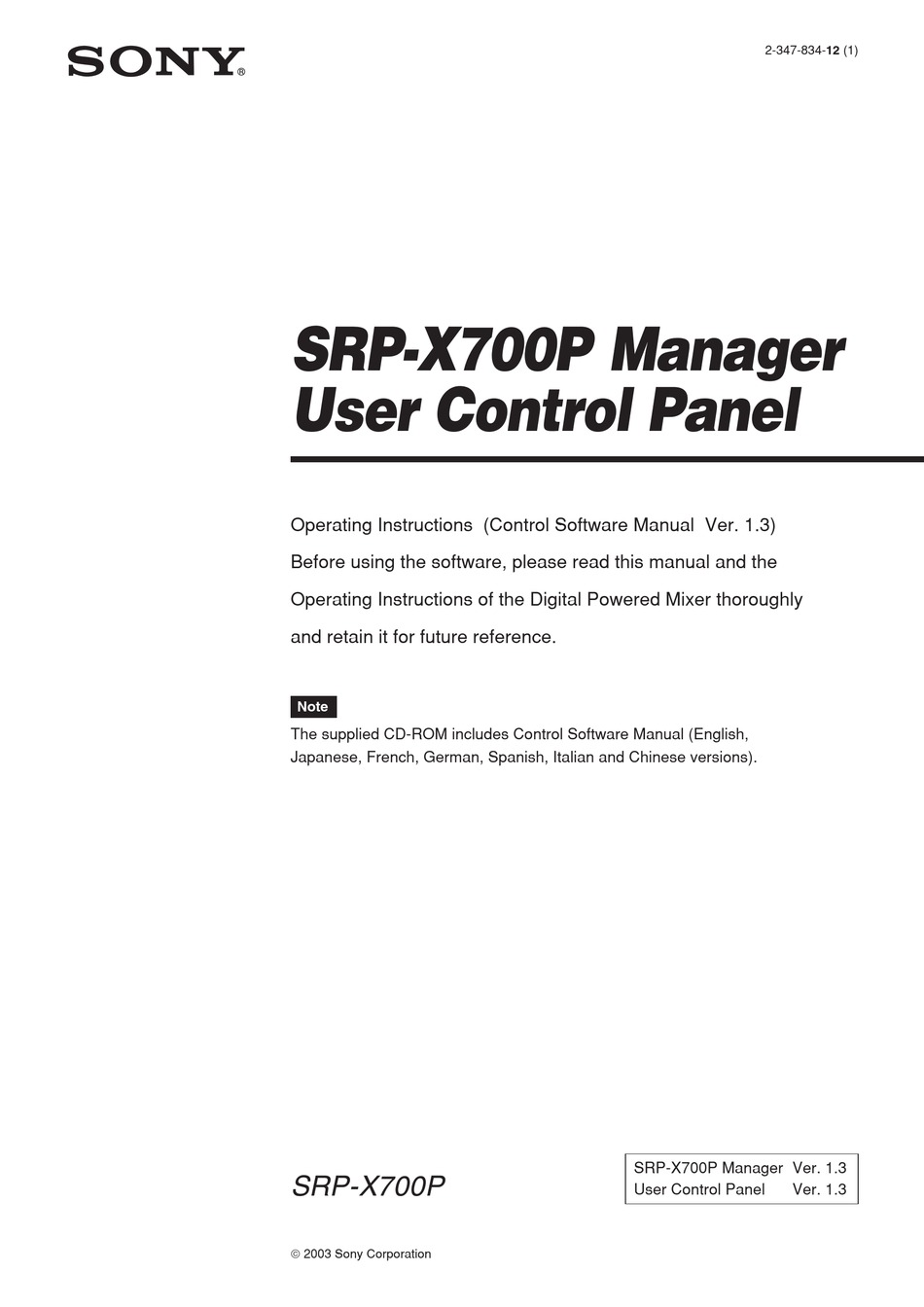

SRP-X700P Manager
User Control Panel
Operating Instructions (Control Software Manual Ver. 1.3)
Before using the software, please read this manual and the
Operating Instructions of the Digital Powered Mixer thoroughly
and retain it for future reference.
Note
The supplied CD-ROM includes Control Software Manual (English,
Japanese, French, German, Spanish, Italian and Chinese versions).
SRP-X700P
 2003 Sony Corporation
2-347-834-12 (1)
SRP-X700P Manager Ver. 1.3
User Control Panel
Ver. 1.3

Advertisement

Table of Contents

   Related Manuals for Sony SRP-X700P

   Summary of Contents for Sony SRP-X700P

  • Page 1 Operating Instructions of the Digital Powered Mixer thoroughly and retain it for future reference. Note The supplied CD-ROM includes Control Software Manual (English, Japanese, French, German, Spanish, Italian and Chinese versions). SRP-X700P Manager Ver. 1.3 SRP-X700P User Control Panel Ver. 1.3  2003 Sony Corporation...
  • Page 2: Table Of Contents

    Table of Contents Features ........................... 3 Precautions ........................3 About This Manual ......................3 Installation ........................4 Installing the Dedicated USB Driver Software ............4 Installing the SRP-X700P Manager ................5 Installing the User Control Panel ................5 Uninstalling ........................5 Section 1 SRP-X700P Manager ..................
  • Page 3: Features

    PC the basic operations of the SRP-X700P. SRP-X700P from the User Control Panel and Sony products Similarly, you can also operate a Sony DVD, VCR, CD/MD and connected to the SRP-X700P. Read this manual together with the the like that is connected to the SRP-X700P.
  • Page 4: Installation

    Installation The dedicated USB driver software is necessary to 0 Select [Search for the best driver for your device. connect the SRP-X700P Manager and User Control (Recommended).] and click [Next >]. (Fig. 3) Panel to the SRP-X700P. Installing the Dedicated USB Driver Software Select •...
  • Page 5: Installing The Srp-x700p Manager

    Installing the SRP-X700P Manager Installing the User Control Panel 1 Insert the supplied CD-ROM into the CD-ROM drive of the 1 Insert the supplied CD-ROM into the CD-ROM drive of the personal computer. personal computer. Open the SRP-X700P Manager folder. Open the User Control Panel folder.
  • Page 6: Section 1 Srp-x700p Manager

    Section 1 SRP-X700P Manager The SRP-X700P Manager enables you to set all parameters of the SRP-X700P. Starting the SRP-X700P Manager If the SRP-X700P Manager is started after connecting the SRP-X700P to the personal computer with a USB cable, the present setup of the SRP-X700P is read.
  • Page 7: Bottom Menu Bar

    Edit menu (Displayed only on the INPUT and 2 Bottom menu bar OUTPUT screens) You can select the setup screen for each parameter. Copy: Copies the parameters. For the INPUT and OUTPUT buttons, submenus are displayed. 3 FRONT PANEL LOCK button You can lock the FRONT PANEL so that the buttons and faders on the SRP-X700P front panel are disabled to prevent accidental operation.
  • Page 8: Block Screen

    Names and Functions of Controls on Screen 1.1 BLOCK Screen The BLOCK screen displays the setup status and the signal level according to the internal blocks in the SRP-X700P. If you click a button, the screen jumps to the related setup screen. You can select ON/OFF and set parameters on each screen. 56 7 8 9 qa qd qfqg qh qj qk 1 INPUT index...
  • Page 9: Input Screen

    1.2 INPUT Screen You can set parameters of the input block of the SRP-X700P from the INPUT screen. 1.2.1 INPUT OVERVIEW Screen This screen corresponds to the input module of the audio mixer. This screen enables you to set the following. 1 INPUT index 7 Setup...
  • Page 10 Names and Functions of Controls on Screen qd GAIN LIMIT and qf OVER GAIN indicators The sending level from input section is the sum of the qh INPUT fader and the input fader of the SRP-X700P. If the SRP-X700P master volume is manipulated and the sound volume is remotely controlled via the REMOTE terminal using the GROUP FADER screen and REMOTE screen respectively, these setup values are also added to the...
  • Page 11: Input Eq Screen

    1.2.2 INPUT EQ Screen You can set the low-cut filter, feedback reducer and parametric equalizer of the SRP-X700P input block from the INPUT EQ screen. 1 Channel select button 6 SETUP button Selects the INPUT channel that you want to set. Detect the howling point as follows.
  • Page 12 Names and Functions of Controls on Screen Parametric Equalizer Block The MIC1/WL1, MIC2/WL2, MIC3, MIC4, MIC5/LINE1 and MIC6/LINE2 channels have a 3-band parametric equalizer, and the LINE3 and LINE4 channels have a 2-band parametric equalizer. Clicking the v or V button changes the following parameters of each band.
  • Page 13: Routing Screen

    1.3 ROUTING Screen On this screen, you can set to which output channel the input signal is to be output. 1 INPUT index AUTOMATIC MIXER Block Displays the INPUT channel index that is entered on the The AUTOMATIC MIXER block of the SRP-X700P consists of BLOCK screen.
  • Page 14: Automatic Mixer Setup Screen

    Names and Functions of Controls on Screen AUTOMATIC MIXER SETUP Screen This screen is used to make detailed settings of the AUTOMATIC MIXER. 1 GATE OPEN indicator 6 LAST ON button Lights in green when the input gate is opened. Turns on and off the LAST ON function.
  • Page 15 9 Limiter characteristics graph Displays the characteristics of the output limiter. You can control the threshold of the output limiter by dragging the marker on the graph with the mouse. The reference level is 0 dB. 0 Output channel select button You can select the output channel for which you want to enable the AUTOMATIC MIXER.
  • Page 16: Output Screen

    Names and Functions of Controls on Screen 1.4 OUTPUT Screen You can set the parameters of the output block of the SRP-X700P from the OUTPUT screen. 1.4.1 OUTPUT OVERVIEW Screen This screen corresponds to the output module of the audio mixer. This screen enables you to set the following. The OUTPUT 1 through OUTPUT 8 correspond to the LINE OUTPUT 1 through LINE OUTPUT 8 of the main unit.
  • Page 17 • If DC voltage appears in the SPEAKER terminal due to failure. qh REC OUT level meter Turn off the POWER switch and contact your Sony Displays the output signal level using the VU response. representative where you purchased the unit or contact your local Sony Sales office or Dealer.
  • Page 18: Output Eq Screen

    Names and Functions of Controls on Screen 1.4.2 OUTPUT EQ Screen You can set the equalizer of the SRP-X700P output block from the OUTPUT EQ screen. 1 Channel select button 6 Q setup box Selects the OUTPUT channel that you want to set. Set Q in the range of 0.15 to 22.
  • Page 19: Remote Screen

    PARALLEL I/O Block MACHINE CONTROL Block 1 PARALLEL INPUT indicator You can establish various setups to control Sony products through Displays the status of the REMOTE PARALLEL terminal. the Control S output terminal. For details of the connection and other procedures, refer to “How to Control AV Equipment from the The PARALLEL INPUT indicator lights in green when the SRP-X700P”...
  • Page 20 Names and Functions of Controls on Screen qd SIGNAL DEFINE setup box PROJECTOR CONTROL Block Select the video signal format for each channel of the LINE 4 input, that is sent to projector. You can establish various setups to control a projector, refer to •...
  • Page 21 Parameters in the PARALLEL INPUT FUNCTION setup box Function Parameter NONE: Does not set any function. ————— AV SEL: Selects the LINE4 input. A: Selects A. F: Selects F. OFF: Enters the off state. LVL+: Increases the sound volume with an external switch. Mic1: Selects Mic1.
  • Page 22: User Define Screen

    Names and Functions of Controls on Screen USER DEFINE Screen Use this screen to set the communication protocol when USER DEFINE is selected in the PROJECTOR PROTOCOL setup box. When USER DEFINE is selected, the projector is connected to the PROJECTOR CONTROL RS-232C terminal. Once the communication protocol between the SRP-X700P and projector has been set, the projectors not supported by default can be connected.
  • Page 23 Port setup Sets the communication conditions between the SRP-X700P and projectors. 4 BITS PER SECOND setup box 5 PARITY BIT setup box Sets the baud rate. Sets the parity bit. Select the desired speed to 9600, 19200, or 38400 bps Select NONE, ODD, or EVEN depending on the depending on the baud rate of the projector.
  • Page 24 Names and Functions of Controls on Screen INPUT SELECT command setup Sets the command to select the input terminal of the projector in accordance with the SRP-X700P LINE4 SELECT selection. It also sets the wait time after the command has been sent. The SRP-X700P has built-in independent switchers for the respective video signal systems.
  • Page 25 Connectable projectors Projectors meeting the following specifications can be connected. • Equipped with RS-232C remote terminal • The RS-232C remote terminal must support the following specifications. Electrical characteristics : Conforming to RS-232C Baud rate : 9600, 19200 or 38400 bps Parity bit : None, odd or even Data length...
  • Page 26 Names and Functions of Controls on Screen Connection to projector For details of the method of connecting to a projector, see “System example when operating the SRP-X700P with the default setting when shipped from the factory” of the SRP-X700P Operating Instructions. When the RGB signal distributor to be connected to the projector, connect them as shown below.
  • Page 27 5. Input select operation check using the TEST button 7. PROJECTOR POWER ON operation check 1 Do not input any signal to LINE4 INPUT of the SRP- 1 Press the LINE4 SELECT button “A” of the SRP-X700P X700P. Select VIDEO using the signal format select button and confirm that the projector displays the video output and press the TEST button in the INPUT SELECT signal.
  • Page 28: Group Fader Screen

    Names and Functions of Controls on Screen 1.6 GROUP FADER Screen You can group several faders in order to move multiple internal faders from the Remote terminal or from the Master volume control of the SRP-X700P. 1 FADER GROUP index Enters the index of the FADER GROUP.
  • Page 29: Scene Screen

    1.7 SCENE Screen You can set scenes from this screen. You can store the setups on each screen of INPUT, ROUTING, OUTPUT and GROUP FADER into the internal memory of the SRP-X700P or call them from the scene memory. SCENE block •...
  • Page 30 Names and Functions of Controls on Screen 7 FRONT PANEL SCENE RECALL You can assign the scene numbers (1 to 20) to recall, using the SCENE RECALL buttons A to D on the front panel of the SRP-X700P. 8 Information Enter a comment for the setup file.
  • Page 31: Section 2 User Control Panel

    Section 2 User Control Panel The User Control Panel software enables you to operate the SRP-X700P more simply from a personal computer that you may use for presentations and other purposes. Note Start up the User Control Panel after connecting the SRP-X700P to the personal computer.
  • Page 32: Troubleshooting

    Troubleshooting Before contacting a Sony Sales office or Dealer, check the following again. If the trouble persists, contact your local Sony Sales office or Dealer. Symptom Cause/Remedy Cannot operate the system from User • USB cable is not connected. → Check the connection of the USB cable.
