Scan for full manual
Step 1: Check what's in the box

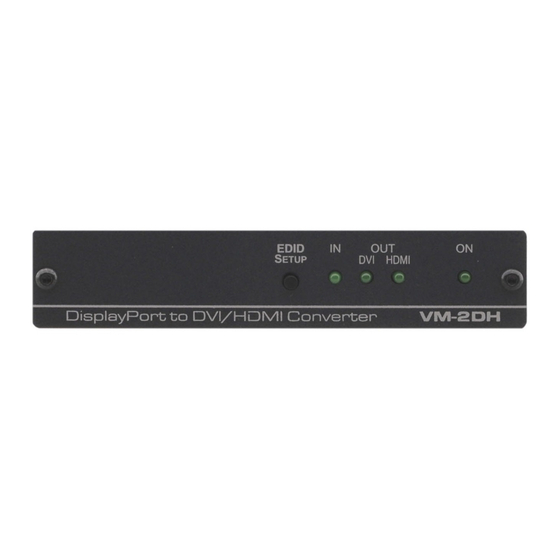

VM-2DH DisplayPort to DVI/HDMI Converter
1 Power supply (5V DC)

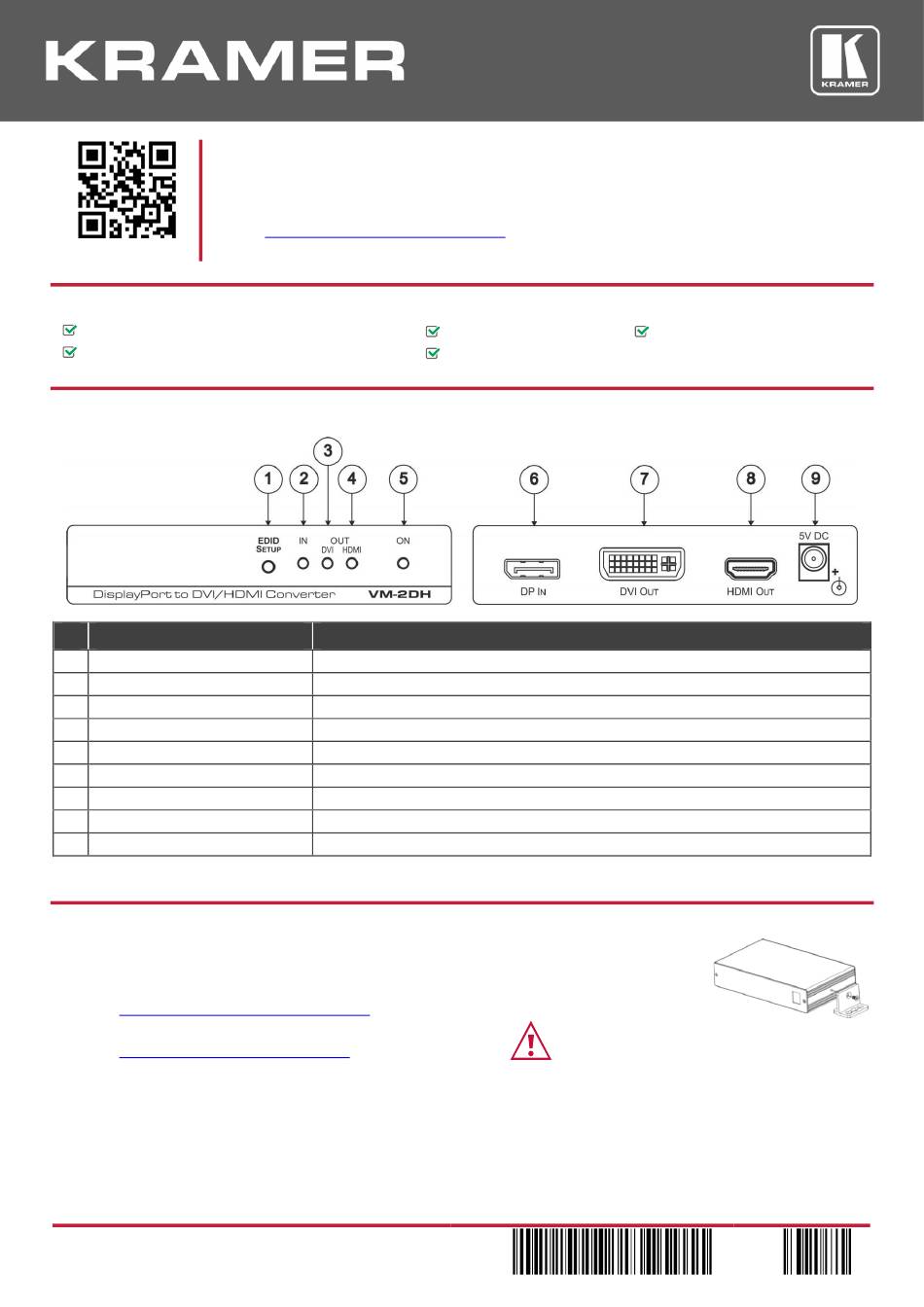

Step 2: Get to know your VM-2DH
#
Feature
1
EDID SETUP Button
2
IN LED
3
OUT DVI LED
4
OUT HDMI™ LED
5
ON LED
6
DP IN DisplayPort Connector
7
DVI OUT Connector
8
HDMI OUT Connector
9
5V DC
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount VM-2DH
Install
VM-2DH
using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/VM-2DH).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VM-2DH).
VM-2DH Quick Start
VM-2DH Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VM-2DH
upgrades are available.
Function
Press to cycle through the EDID sources and to read the EDID (see Step 6)
Lights green when the input is active; flashes when the input is not valid
Lights green when a DVI acceptor output is connected
Lights green when an HDMI acceptor is connected
Lights green when the unit is powered on
Connect to the DisplayPort digital source
Connect to the DVI acceptor
Connect to the HDMI acceptor
Connect to the 5V DC power adapter, center pin positive
VM-2DH
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 6 6 QS
1 Bracket set
Rev: 2
