ACT-IR100MU
®
IrDA
SIR USB Printer Adapter
User's Manual
January 8, 2010
Version 1.2
© Copyright 2006-2010 ACTiSYS Corporation
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for ACTiSYS ACT-IR100MU
Summary of Contents for ACTiSYS ACT-IR100MU

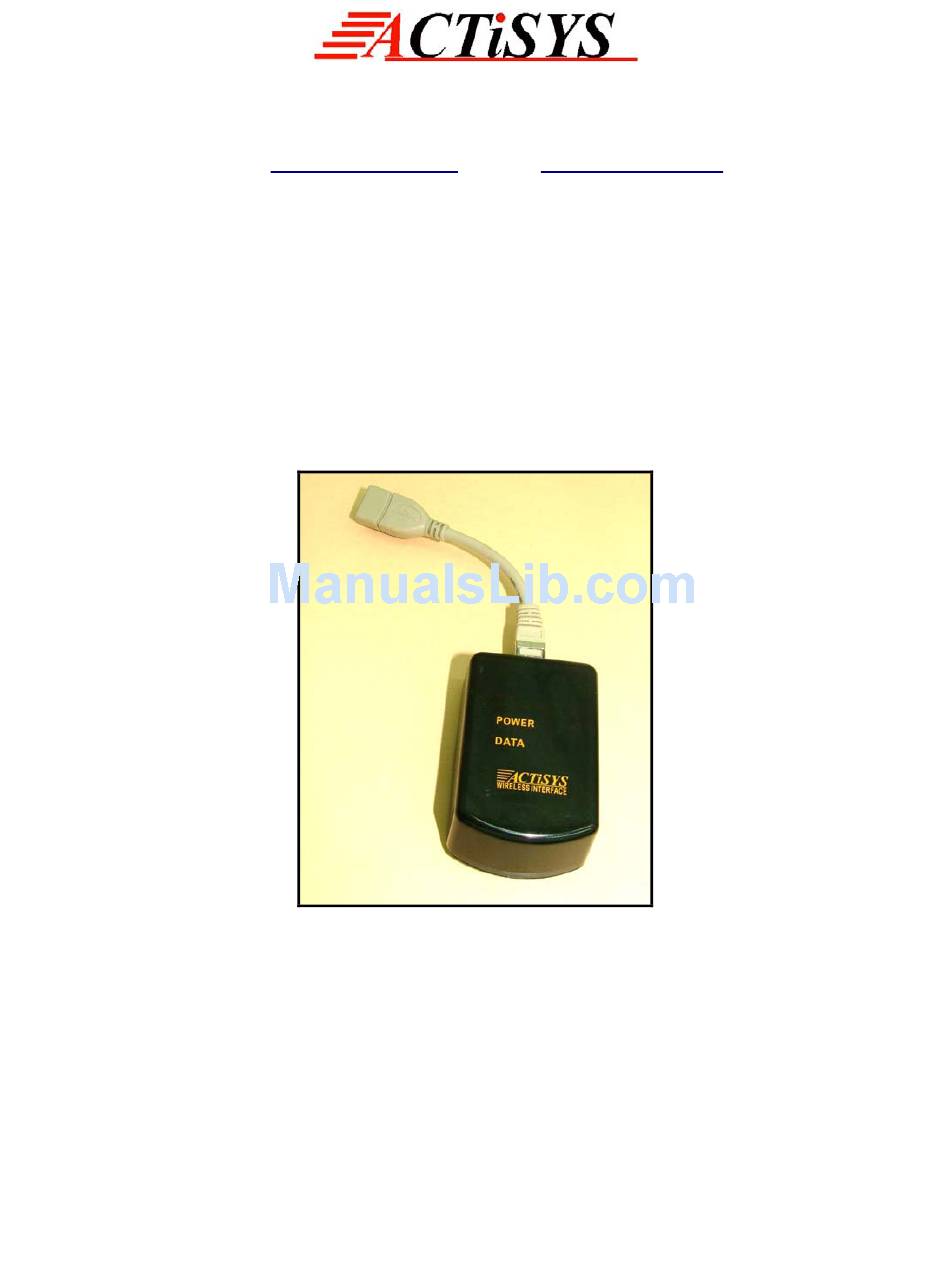

- Page 1 The Wireless Connectivity Expert 921 Corporate Way, Fremont, CA 94539, USA Tel: +1-510-490-8024, Fax: +1-510-623-7268 Web: http://www.actisys.com, E-mail: irda-info@actisys.com ACT-IR100MU ® IrDA SIR USB Printer Adapter User’s Manual January 8, 2010 Version 1.2 © Copyright 2006-2010 ACTiSYS Corporation All Rights Reserved...
-
Page 2: Table Of Contents
8. ELECTRICAL CHARACTERISTICS AND SPECIFICATIONS......9 Electrical Characteristics ...................... 9 Generic Specifications ......................9 9. TECHNICAL SUPPORT ................... 9 10. WARRANTY INFORMATION ................10 11. CONTACT INFORMATION .................. 11 © Copyright 2006-2010 ACTiSYS Corp Page 2 Jan. 8, 2010 of 11 V 1.2... -
Page 3: Revision History
ACTiSYS reserves the right to make changes without further notice to any products herein to improve reliability, function or design. ACTiSYS does not assume any liability arising out of the application or use of any product or circuit described herein. -
Page 4: Overview
USB Printer Adapter that gives you mobile freedom and instant access to your USB printers wirelessly. Simply connect ACT-IR100MU to your printer through USB for a Plug and Play experience. ACT-IR100MU is great for home, office and field use, freeing you from cables and wires. -
Page 5: Features
No any driver required. 6. HARDWARE INTERFACE 6.1. RJ45-USB Conversion Cable Fig. (L): RJ45-USB type A Cable; Fig. (R): ACT1-214 RJ45-to-USB type B direct conversion Cable © Copyright 2006-2010 ACTiSYS Corp Page 5 Jan. 8, 2010 of 11 V 1.2... -
Page 6: Print Operation Procedure
Step2: Plug printer USB cable to Printer via USB port Step3: Connect RJ45-USB conversion cable (This cable is only for converting RJ45 to USB interface) to ACT-IR100MU as shown at below point A. Step4: Connect printer USB cable from printer to USB-RJ45 conversion cable as shown at above... - Page 7 Cable in case you originally have no any printer cable bundled with your printer. Step5: Plug in AC power adaptor to ACT-IR100MU. Power LED of ACT-IR100MU will be turned ON then. Step6: Prepare your sender, e.g., a PDA, a digital camera or an IrDA dongle from your Notebook PC.
- Page 8 Step8: Assign IR port to your printer driver. This builds up IrLPT structure for your sender. Step9: Start printing the file. The green DATA LED will then flash when printing. © Copyright 2006-2010 ACTiSYS Corp Page 8 Jan. 8, 2010 of 11 V 1.2...
-
Page 9: Electrical Characteristics And Specifications
48.3 g Dimension 8 cm X 5 cm X 3 cm 9. TECHNICAL SUPPORT ACTiSYS has provided an online section of trouble shooting guidelines on the Web Site: http://www.actisys.com/TechSupport.html - TechSport . If still there is any problem, please contact mailto:tech-support@actisys.com ACTiSYS Technical Support by email ©... -
Page 10: Warranty Information
The Wireless Connectivity Expert 10. WARRANTY INFORMATION ACTiSYS Corporation warrants the first end-user purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product) will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor. -
Page 11: Contact Information
User Manual The Wireless Connectivity Expert 11. CONTACT INFORMATION ACTiSYS Corporation 921 Corporate Way Fremont, CA 94539, USA TEL: +1-510-490-8024, FAX: +1-510-623-7268 irda-info@actisys.com E-Mail: http://www.actisys.com Web: © Copyright 2006-2010 ACTiSYS Corp Page 11 Jan. 8, 2010 of 11 V 1.2...
