ACTiSYS IR100SD Specifications

IR100SD provides a serial interface to a host device that intends to have infrared communication
ACT-
capability. It handles all the details about IrDA
Primary and Secondary modes. When it is set to Primary mode, user can choose IrCOMM
TM
OBEX PUT/GET server to be Primary protocol via a simple PC utility.
Complete IrDA Protocol stack in dongle.
Supports both IrDA Primary and Secondary mode, changeable via PC utility.
Supports mandatory IrDA layer: IrPHY
Supports upper layers TinyTP
Supports 3 wires host interface (Tx, Rx and GND).
No driver is needed.
Interface to Host:
Full-duplex asynchronous serial (TXD, RXD)
Hardware flow control (RTS, CTS)
Optional line status for link control (DTR, DSR)
Other unused inputs (RI, CD)
Designed for use in RS232C level and it is in DTE (Data Terminal Equipment) configuration.

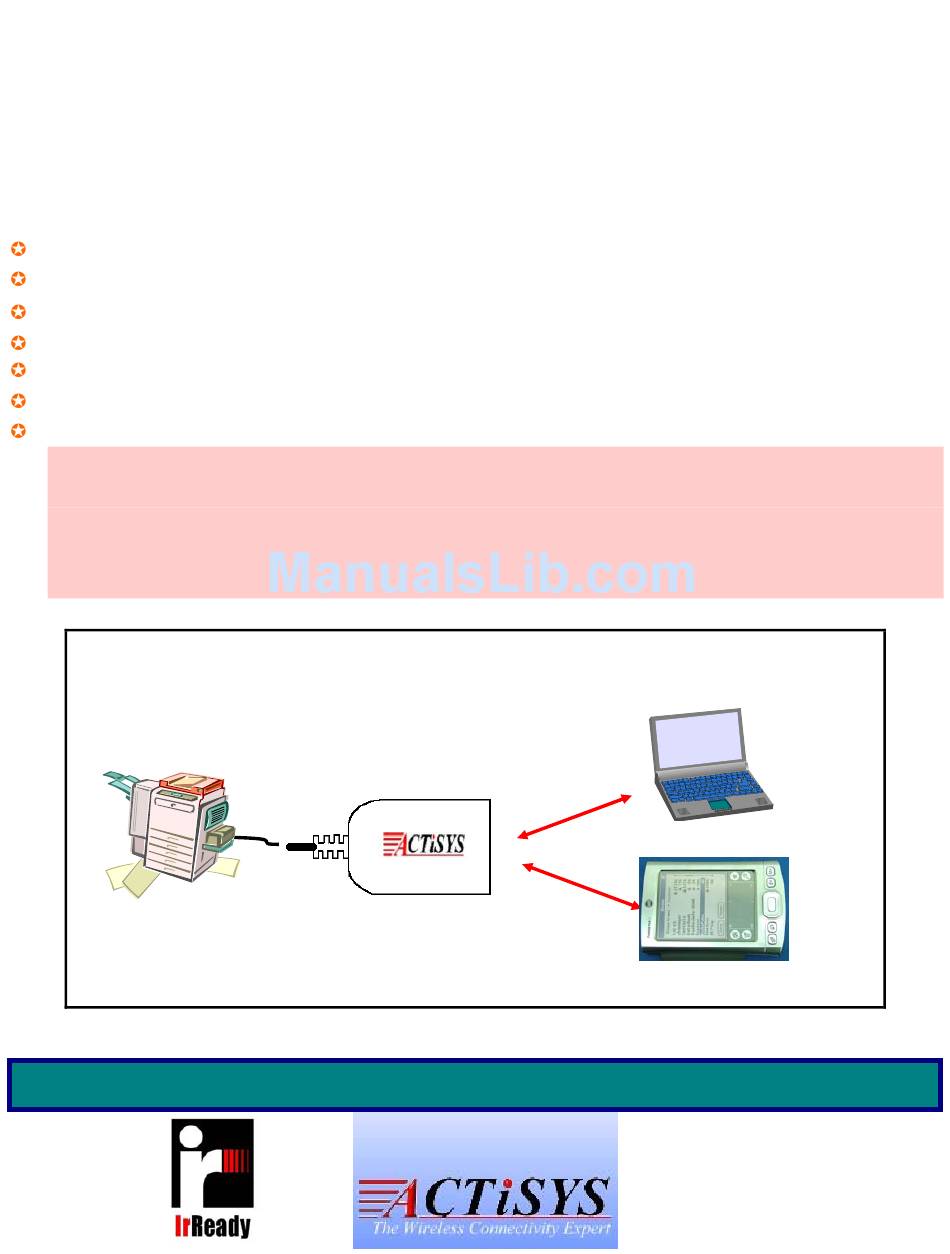

User Host Device
