VIA Technologies EPIA-EK10000G - VIA Motherboard - Mini ITX Specifications

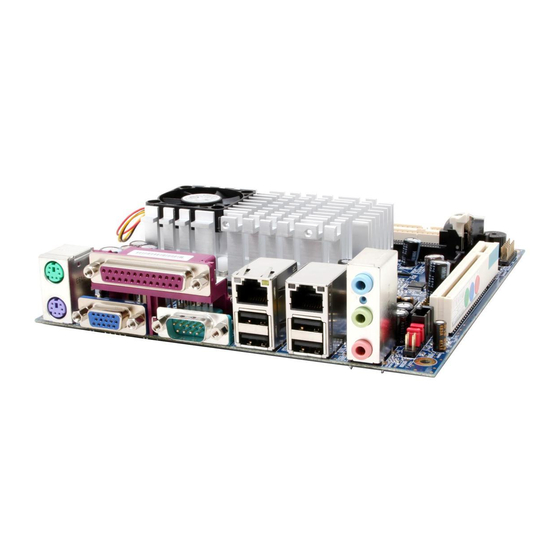

Mini-ITX Series
VIA
EPIA EK
Mini-ITX Luke Board with
MPEG-2 & 4, 4 COM Ports &
Dual LAN
Features
„ Integrated VIA UniChrome™
Pro AGP graphics with MPEG-
2/4 decoding acceleration
„ Supports DDR400 SDRAM
Supports Digital I/O, four pairs
„
of GPIO
COM 2/3/4 with 5V/12V VCC
„
Select
Supports dual LAN (with one
„
Gigabit Ethernet in option)
„ Supports two SATA

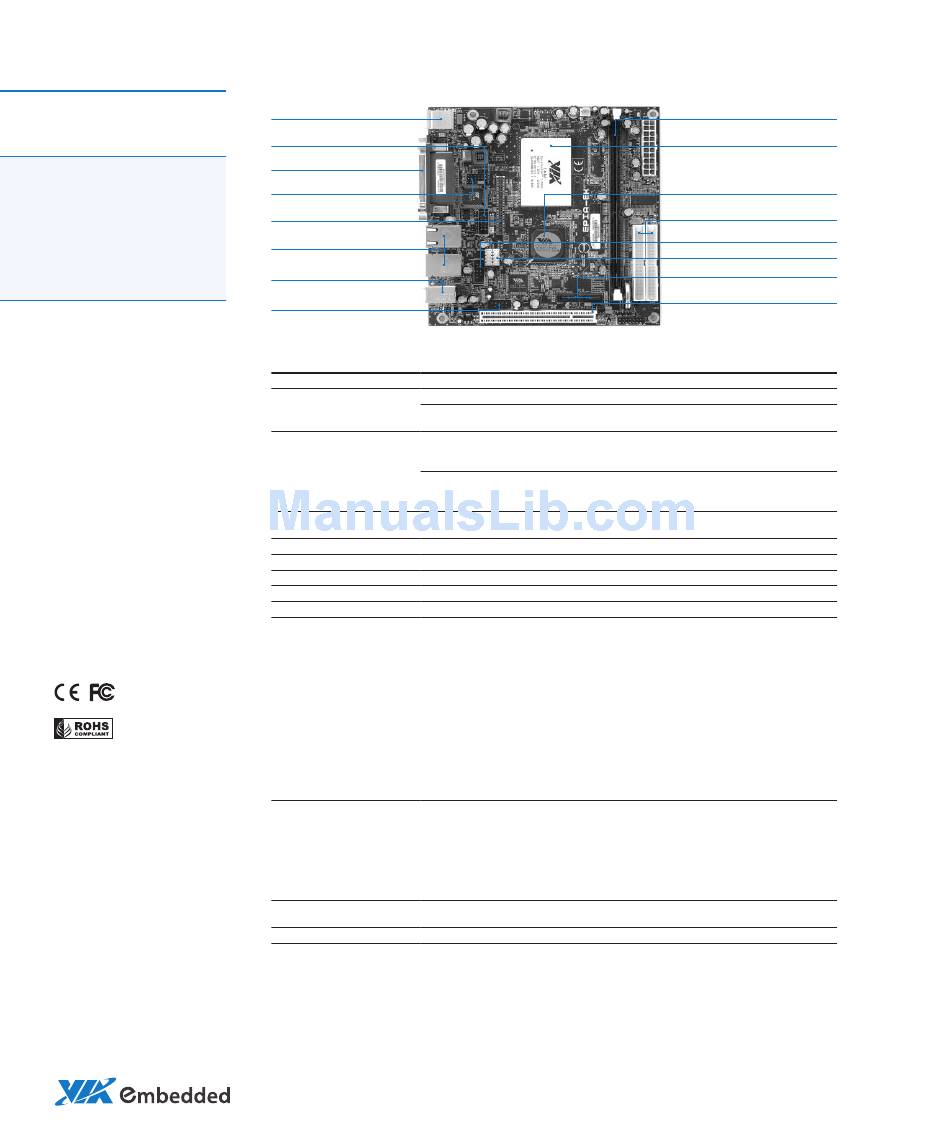

Board Placement
PS2 KB/MS
COM2
LPT
Digital I/O
LVDS/DVI
2 x 10/100 Mbps Ethernet
(1 optional for Gigabit Ethernet)
Audio Jacks/VIA
Smart5.1 Surround Sound
COM3

Specifications

Model Name EPIA EK10000G
Core Logic
1.0GHz VIA Luke
VIA VT8237R Plus
South Bridge
Onboard LAN
VIA VT6103L
10/100 Mbps
Ethernet PHY
VIA VT6107
10/100 Mbps
Ethernet controller
System Memory
1 x DDR400 DIMM slot
Up to 1GB memory size
VGA
Integrated VIA UniChrome™ Pro AGP graphics with MPEG-2/4 decoding acceleration
Expansion Slot
1 x PCI slot
Onboard IDE
2 x UltraDMA 133/100/66 connectors
Onboard Audio
VIA VT1618 8-channel AC'97 Codec
Onboard Serial ATA
2 x SATA connectors
Onboard I/O Connectors
2 x USB connectors for 4 additional USB 2.0 ports
1 x SIR connector
3 x Serial port connectors for COM2/3/4 (5V/12V selectable)
1 x Buzzer
1 x Digital I/O connector
1 x WP connector for BIOS flash
1 x SMBus connector
1 x LVDS/DVI/TTL module connector, for 18/24-bit dual channel LVDS panel (an add-on
card is required)
1 x CD audio-in connector
1 x CIR connector (switchable for KB/MS)
1 x Front panel audio connector for Line-out and Mic-in
1 x Front panel connector
2 x Fan connectors for CPU and system fans
1 x ATX power connector
Back Panel I/O
1 x PS2 mouse port
1 x PS2 keyboard port
1 x Parallel port
1 x VGA port
1 x Serial port
2 x RJ-45 LAN ports
4 x USB 2.0 ports
3 x Audio jacks: Line-out, Line-in and Mic-in (vertical, Smart 5.1 support)
BIOS
Award BIOS
LPC 4/8Mbit flash memory
Operating System
Windows 2000/XP, Linux, Win CE, XPe
Software Application
VIA FliteDeck™ Suite
„ FlashPort-Live BIOS Flash
„ MissionControl-H/W Monitoring Remote SNMP Management
„ SysProbe-Live DMI Browser
* Minimum order quantity is required.
DDR400 SDRAM DIMM
VIA Luke CoreFusion processor
VIA VT8237R Plus South Bridge
2 x IDE ATA 133/100
COM4
WLAN USB module
2 x SATA
PCI
EPIA EK10000LG* EPIA EK8000EG
1.0GHz VIA Luke 800MHz VIA Luke
VIA VT8237R Plus VIA VT8237R Plus
South Bridge South Bridge
VIA VT6103L VIA VT6103L
10/100 Mbps 10/100 Mbps
Ethernet PHY Ethernet PHY
VIA VT6122 Gigabit VIA VT6107
Ethernet controller 10/100 Mbps
Ethernet controller
EPIA EK8000ELG*
800MHz VIA Luke
VIA VT8237R Plus
South Bridge
VIA VT6103L
10/100 Mbps
Ethernet PHY
VIA VT6122 Gigabit
Ethernet controller
