    709FX Industrial Ethernet Switch Installation Guide The N-TRON 709FX Industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet enabled industrial and or security equipment and is a fully managed switch. Page 5 of 196...
  • Page 6 • 802.1Q tag VLAN and Port VLAN • 802.1p QoS, Port QoS, and DSCP • LLDP (Link Layer Discovery Protocol) • Trunk with other N-Tron trunking capable switches over two ports • Port Mirroring • 802.1D RSTP (Rapid Spanning Tree Protocol) •...

  • Page 7: 709Fx Industrial Ethernet Switch Accessories

    Ideal for saving, or restoring switch configuration parameters quickly without the need for a computer or software. One configuration device per switch is recommended. NTCD-128 The configuration device is inserted in the back of the 709FX. Page 7 of 196 (Revised 2012-05-01)
  • Page 8 In no event shall N-Tron Corp. be liable for any incidental, special, indirect, or consequential damages whatsoever included but not limited to lost profits arising out of errors or omissions in this manual or the information contained herein.

  • Page 9: Safety Warnings

    SAFETY WARNINGS GENERAL SAFETY WARNINGS WARNING: If the equipment is used in the manner not specified by N-Tron Corp., the protection provided by the equipment may be impaired. LASER SAFETY (Single Mode Fiber Models -40 and -80) CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!

  • Page 10: Installation

    Use 90°C or higher rated Copper wire, (0.22Nm) 2lb/in Tightening torque for field installed conductors. Please make sure the 709FX Series Ethernet Switch package contains the following items: 1. 709FX Series Switch 2. Product CD Contact your carrier if any items are damaged.
  • Page 11 Disconnect the power cable before removing any enclosure panel. UNPACKING Remove all the equipment from the packaging, and store the packaging in a safe place. File any damage claims with the carrier. CLEANING Clean only with a damp cloth. Page 11 of 196 (Revised 2012-05-01)

  • Page 12: Din Rail Mounting

    URMK CPMA Most N-Tron™ products are designed to be mounted on industry standard 35mm DIN rail. However, DIN rail mounting may not be suitable for all applications. Our Optional Universal Rack Mount Kit (P/N: Page 12 of 196 (Revised 2012-05-01)
  • Page 13 URMK) may be used to mount the enclosure to standard 19" racks, and our Optional Factory Installed Panel Mount Assembly may be used to mount the enclosure to a panel or any other flat surface. Page 13 of 196 (Revised 2012-05-01)

  • Page 14: Front Panel (709Fx)

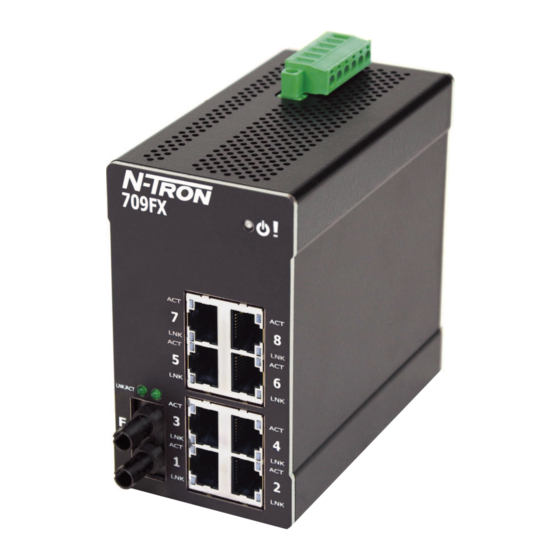

    FRONT PANEL (709FX) From Top to Left: RJ45 Ports Auto Sensing 10/100 Base-TX Connections Fiber Port 100 Base-FX Connection LED lights when Power is supplied to the unit NOTE: The RJ45 data port has two LEDs located on each connector. The left LED indicates LINK status, and the right LED indicates ACTIVITY.
  • Page 15 GREEN Data is active between ports Data is inactive between ports Page 15 of 196 (Revised 2012-05-01)

  • Page 16: Applying Power (Top View)

    The conditions for generating a fault condition (closing the relay) can be configured through software. Recommended 24V DC Power Supplies, similar to: N-Tron’s P/N NTPS-24-1.3 (NOTE: Not appropriate for use with M12, POE, and HV models.): Input AC 115/230V...

  • Page 17: Connecting The Unit

    100 meters. N-Tron recommends the use of pre- manufactured Cat5E cables to ensure the best performance. If this is not an option and users must terminate their own ends on the Cat5E cables;...
  • Page 18 Some N-Tron switches have metal din-rail brackets that can ground the switch if the din-rail is grounded. In some cases, N-Tron switches with metal brackets can be supplied with optional plastic brackets if isolation is required.
  • Page 19 RJ45 CONNECTOR CRIMP SPECIFICATIONS Please reference the illustration below for your Cat5 cable specifications: Page 19 of 196 (Revised 2012-05-01)
  • Page 20 USB INTERFACE The 709FX Series switches provide a USB interface accessed via the USB connector labeled as “USB” on the unit. This is used to access the Command Line Interpreter (CLI). The USB connector is at the bottom of the 709FX.
  • Page 21 Flow Control: NONE Page 21 of 196 (Revised 2012-05-01)

  • Page 22: Overview Of Advanced Features

    Overview of Advanced Features Mode of Operation Each port on the switch can be configured into different modes of operation as shown below: Copper Ports: 100Base Fiber Ports: 1000Base Copper/Fiber Ports: - Half Duplex - Full Duplex - Full Duplex - Full Duplex - Auto Negotiation Half Duplex...

  • Page 23: Virtual Lan

    such as voice over IP, online games and IP-TV, since these often require fixed bit rate and are delay sensitive, and in networks where the capacity is a limited resource, for example in cellular data communication. In the absence of network congestion, QoS mechanisms are not required. Each of these three QOS methods below is included or not based on the settings on the relevant browser page: 1) Force High Priority (Port Based),...

  • Page 24: Rapid Spanning Tree Protocol

    STP when desired. SNMP Traps The 709FX Series switch supports up to 5 SNMP Trap Stations to which SNMP Traps will be sent. The switch supports five standard traps; Link Up, Link Down, Cold Start, Warm Start, Authentication Errors, and power supply failure.

  • Page 25: N-Ring

    N-Ring enabled device to be the N-Ring Manager for a given N-Ring. Subsequently, N-Ring operates dynamically upon each power up. Using N-Tron's proprietary N-Ring technology offers expanded ring size capacity, detailed fault diagnostics, and a standard healing time of 30ms. The N-Ring Manager periodically checks the health of the N-Ring via health check packets.

  • Page 26: Dhcp Client

    DHCP is controlled by RFC 2131. The N-Tron DHCP Switch can be configured to be a DHCP Client. Alternately the N-Tron DHCP switch can be configured to be a DHCP Server, a DHCP Relay Agent, or both.

  • Page 27: Troubleshooting

    ~ 2X. Verify that Link LEDs are ON for connected ports. Verify cabling used between stations. Verify that cabling is Category 5E or greater for 100Mbit operation. SUPPORT Contact N-Tron Corp. at: TEL: 251-342-2164 FAX: 251-342-6353 E-MAIL: N-TRON_Support@n-tron.com WEB: www.n-tron.com...
  • Page 28 dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. Page 28 of 196 (Revised 2012-05-01)

  • Page 29: Web Software Configuration

    Web Software Configuration Web Management Enter the switch’s IP address in any web browser and login to the web management feature of the 709FX Series. Default: User Name: admin Password: admin Page 29 of 196 (Revised 2012-05-01)

  • Page 30: Web Management - Home

    When the administrator first logs onto a 709FX Series switch the default home page will be displayed. On the left hand side of the screen there is a list of configurable settings that the 709FX Series switch will support. This section of the manual will go through each and every choice listed on the left hand side of the screen and explain how to configure those settings.
  • Page 31 Web Management – Menu Structure To the left, there is a menu which is shown fully opened below. The pages opened by each of the individual selections are described in the rest of this section. The use of each of these pages is also described in this section.
  • Page 32 Page 32 of 196 (Revised 2012-05-01)

  • Page 33: Administration - System

    Administration – System The System tab under the Administration category, lists various information about the switch: When the IP Configuration is in either DHCP or Static Mode: IP Configuration Method used to obtain an IP Address, Subnet Mask and Gateway Address IP Address Contains the current IP Address of the device.
  • Page 34 Page 34 of 196 (Revised 2012-05-01)
  • Page 35 Administration – System, Continued… When the IP Configuration is in DHCP Mode the following information is added: Client ID Option used by DHCP clients to specify their unique identifier. The identifier may be the MAC address, switch name, or entered as a text string or hex characters. Fallback IP Address Contains the configured Fallback IP Address of the device.
  • Page 36 Administration – System, Continued… By selecting the Modify button, you will be able to change the switch’s IP Configuration, Client ID, IP Address, Subnet Mask, Gateway, Name, Contact information, and the Location of the switch through the web management features, depending on the IP Configuration. It is recommended to change the TCP/IP information through the Command Line Interface (CLI) initially, but it defaults to the following: IP Configuration –...
  • Page 37 Administration – System, Continued… If the IP Configuration mode is set to DHCP and the Fallback IP address is changed from the default IP address, then the switch will use the Fallback addresses if the IP configuration isn’t received from a DHCP server in 2 minutes after initial boot.

  • Page 38: Administration - Snmp

    Administration – SNMP The SNMP tab under the Administration category allows SNMP to be disabled or enabled, and shows a list of IP Addresses that act as SNMP Traps. The Read-Only, Read-Write, and Trap Community Names are also shown here. By selecting the Modify button, you will be able to change any of the fields listed.
  • Page 39 Administration – SNMP, Continued… Page 39 of 196 (Revised 2012-05-01)

  • Page 40: Administration - Fault

    Administration – Fault The Fault tab under the Administration category provides configurable selections indicating the way to notify when a Power, N-Ring Manager, N-Link fault, or Port Usage Fault occurs. The notification may consist of any combination of the options: Show Web, Show LED, and Contact. Power signal faults consist of V and V .
  • Page 41 Following the Modify button, the administrator will see a list of configurable fields for the Fault configuration. The fault relay contacts can be configured to open on fault or to close on fault, with the latter being the default. Once these fields are filled in to meet the needs of the administrator’s network, the changes may be updated by clicking the Update button at the bottom of the page.

  • Page 42: Dhcp - Server - Setup Profiles

    DHCP – Server – Setup Profiles The Setup Profiles tab under the DHCP/Server category lists the following information about the current state of the server and the existing network profiles: Server Enabled Indicates whether the DHCP server is active. Allow Broadcast Indicates whether the DHCP server will process broadcast messages.
  • Page 43 Page 43 of 196 (Revised 2012-05-01)
  • Page 44 DHCP – Server – Setup Profiles, Continued… Page 44 of 196 (Revised 2012-05-01)
  • Page 45 Page 45 of 196 (Revised 2012-05-01)

  • Page 46: Dhcp - Server - Setup Ip Maps

    The Static Range type of mapping is used to create a range of static IP addresses dedicated to specific ports on a relay agent switch. There are two different data entry formats available according to whether the relay agent type is for an N-TRON or for a generic switch. Page 46 of 196...
  • Page 47 To create a range of static IP addresses on an N-Tron relay agent switch: Network Profile An existing network profile to which the IP map applies. DHCP – Server – Setup IP Maps, Continued… Relay Agent Type Should be set to N-TRON.
  • Page 48 DHCP – Server – Setup IP Maps, Continued… Page 48 of 196 (Revised 2012-05-01)
  • Page 49 DHCP – Server – Setup IP Maps, Continued… To create a range of static IP addresses on a generic relay agent switch: Network Profile An existing network profile to which the IP map applies. Relay Agent Type Should be set to Generic. Port Count The number of ports on the particular relay agent switch.
  • Page 50 Page 50 of 196 (Revised 2012-05-01)
  • Page 51 DHCP – Server – Setup IP Maps, Continued… The Single IP type of mapping is used to create a static IP address for an individual client. The following information is required: Network Profile An existing network profile to which the IP map applies. The static IP address to offer to a client.

  • Page 52: Dhcp - Server - View Bindings

    DHCP – Server – View Bindings The View Bindings tab lists the bindings of physical devices to IP addresses that are in use or offered: Network Profile The profile applied to the binding entry. Binding Identifier The client associated with the binding entry. Client Hardware Address (MAC) The client’s MAC address.

  • Page 53: Dhcp - Relay & Local Ip - Setup

    DHCP – Relay & Local IP - Setup The Setup tab under the DHCP/Relay & Local IP category shows the current state of the relay agent. By selecting the Modify button, you can configure general settings of the relay agent, as well as, configure settings on a per port basis.
  • Page 54 DHCP – Relay & Local IP – Setup, Continued… Relay Status Indicates whether the DHCP relay agent is active. Remote ID The unique identifier that designates the relay agent switch. Server # IP The configured IP address of the DHCP servers. Port No The actual port number.
  • Page 55 DHCP – Relay & Local IP – Setup, Continued… Page 55 of 196 (Revised 2012-05-01)

  • Page 56: Lldp - Configuration

    LLDP - Configuration Mode: Enables or Disables LLDP on the Switch. Default: Disabled Transmit Interval: Specifies the interval at which LLDP frames are transmitted. Default = 30 seconds. Transmit Hold Multiplier: Specifies a multiplier on the Transmit Interval when calculating a Time-to-Live value. Default = 4. Re-Initialization Delay: Specifies a minimum time an LLDP port will wait before re-initializing after setting the port to disable followed by setting a port to Tx-Only or Tx/Rx.

  • Page 57: Lldp - Ports

    LLDP - Ports LLDP Ports View Port Name Descriptive name of the port on the local switch. Transmit Enables or Disables LLDP Transmission on the switch. Receive Enables or Disables Receiving of LLDP Frames from neighbor switches. Allow Management Data Allow the Transmission of Management type information.

  • Page 58: Lldp - Status

    LLDP - Status LLDP Ports Neighbor View The Status View shows the results of LLDP discovery. The LLDP Ethernet frames received from neighboring ports are composed of a collection of data units called TLVs. Each TLV contains a defined type of information such as the Chassis ID described below, which contains the MAC address of the device sending the frame.

  • Page 59: Lldp - Statistics

    LLDP - Statistics LLDP Local Port Statistics View Port Name Descriptive name of the port on the local switch. Transmitted Frames The total number of LLDP Frames sent out from the local switch. Received Frames Total number of LLDP frames received by the local switch. Discarded Frames The total number of frames discarded due to incorrect TLV's in frame.
  • Page 60 Ports – Configuration The Configuration tab under the Ports category will show a detailed overview of all the active ports on the switch. The overview will display the following information: Port Number This is the port index. Port Name This field displays the name of the port. The designation of TX is for copper ports, FX is for fiber optic ports, and GB is for the Gigabit ports (fiber or copper).
  • Page 61 Ports – Configuration, Continued… Page 61 of 196 (Revised 2012-05-01)
  • Page 62 Ports – Configuration, Continued… The User can click on the Port Number to configure each port individually. This will allow the user to change the port’s settings for the following fields which are explained above: Admin Status Speed and Duplex Cross Over Flow Control PVID...
  • Page 63 Ports – Configuration, Continued… The User can click on the Port Number to configure each port individually. This will allow the user to change the port’s settings for the following fields which are explained above: Admin Status Speed and Duplex Cross Over Flow Control PVID...

  • Page 64: Ports - Mac Security - Learning

    Ports – MAC Security – Learning The Learning tab allows the administrator to control the learning or locking modes for the ports. ‘Locked’ is the secure mode. ‘Learning’ builds an internal list of authorized MAC addresses based on an approved LAN.
  • Page 65 Ports – MAC Security – Learning Continued… In ‘Locked’ mode, ‘Secured Ports’ shows the ports that are presently secured. Note: when N-Ring and/or N-Link are used, the N-Ring/N-Link ports will not have MAC Security enabled. Page 65 of 196 (Revised 2012-05-01)
  • Page 66 Ports – MAC Security – Learning Continued… The Modify button allows the administrator to change the current mode and select the ports to be secured. When transitioning from ‘Learning’ to ‘Locked’, the Address Resolution Logic (ARL) table represents the authorized MAC addresses, with the addition of any manually entered addresses (refer to Authorization List section below).

  • Page 67: Ports - Mac Security - Authorization List

    Ports – MAC Security – Authorization List The Authorization List tab allows for manual entry or deletion of authorized MAC source addresses with associated authorized ports. Selecting Modify displays the MAC Authorization Configuration page, which allows the administrator to add new entries, delete existing entries, or edit authorized ports of existing entries. Selecting Delete removes the associated entry.
  • Page 68 Page 68 of 196 (Revised 2012-05-01)

  • Page 69: Ports - Mac Security - Intruder Log

    Ports – MAC Security – Intruder Log The Intruder Log tab displays a list of unauthorized MAC addresses that attempted to access the secured device. Each intruder entry in the log is unique, and is based on the combination of MAC address, VLAN, and port.

  • Page 70: Ports - Mirroring

    Ports – Mirroring A mirroring port is a dedicated port that is configured to receive the copies of Ethernet frames that are being transmitted out and also being received in from any other port that is being monitored. The Mirroring tab under the Ports category displays the status including the list of Source Ports and the Destination Port that the Sources are being mirrored to.

  • Page 71: Ports - Mirroring, Continued

    Ports – Mirroring, Continued … Following the Modify button, you can enable the status of port mirroring and select source ports and the destination port that the source ports will be mirrored to. Page 71 of 196 (Revised 2012-05-01)

  • Page 72: Ports - Mirroring, Continued

    Ports – Mirroring, Continued… Mirrored Data Only: If this checkbox is selected, only mirrored data will be transmitted by the destination port. That is, data that was to be transmitted from the Destination Port itself, other than by mirroring, will not be transmitted.
  • Page 73 Ports – Trunking The Trunking tab under the Ports category displays the following details: Trunk Ports This field displays the ports associated with the trunk. Trunk Status This configurable field displays the existing status of the trunk. It can be either Enabled/Disabled. By selecting the Modify button, you can select a trunk group.

  • Page 74: Ports - Qos

    Ports – QOS The QOS decision tree chooses the highest priority Transmit Queue (TQ) of the following criteria: Force High Priority (Port Based) TQ mapping, IEEE 8021.p TQ mapping, or DSCP TQ mapping. The QOS tab under the Ports category displays the following details: Port Number This is the port index.
  • Page 75 Ports – QOS, Continued… Following the Modify button, the administrator can independently configure the ports for different QOS functionality. Once these fields are filled in to meet the needs of the administrator’s network, the changes may be updated by clicking the Update button at the bottom of the page. Page 75 of 196 (Revised 2012-05-01)

  • Page 76: Statistics - Port Statistics

    Statistics – Port Statistics The Ports Statistics tab under the Statistics category displays a list of MIB parameters. Each port has a separate counter for each parameter. This gives users the ability to see what kind of packets are going over which ports.
  • Page 77 Page 77 of 196 (Revised 2012-05-01)

  • Page 78: Statistics - Port Utilization

    These figures and bars are for a general feeling of what the bandwidth usage is. N-Tron recommends the use of N-View in order to get a more precise bandwidth usage figure.

  • Page 79: Vlan - Configuration

    VLAN – Configuration Note: Consult the Table of Contents for ‘VLAN Addition and Deletion Example’, and ‘VLAN Configuration Examples’. These are detailed examples. Replace VID Tag with Default Port VID Specifies whether or not to replace the incoming VID tag with the port's designated VID. Perform Ingress Filtering Specifies whether or not to filter out ingress frames when a VID violation is detected.
  • Page 80 If it is desired to have a port on group1 and also on other group(s) configure group1 last to achieve that. Note: RSTP on overlapping VLANs is not supported and the system will automatically disable RSTP on all but the lowest VID VLANs that have overlapping ports. Page 80 of 196 (Revised 2012-05-01)
  • Page 81 VLAN – Group Configuration VLAN ID This field displays the VLAN ID. The range should be 1-4094. VLAN Name This configurable field displays the name of the VLAN, which accepts alphanumeric and special characters (#, _, -, .) only. Allow Management Specifies whether or not all ports in this VLAN are management ports.
  • Page 82 Page 82 of 196 (Revised 2012-05-01)

  • Page 83: Bridging - Aging Time

    Bridging – Aging Time The Aging Time tab under the Bridging category will display the currently configured Aging Time. This page allows users to modify this variable to meet their needs. After selecting the Modify button, the user will be presented with a page that allows the number to be entered and updated.

  • Page 84: Bridging - Unicast Addresses

    Bridging – Unicast Addresses The Unicast Addresses tab under the Bridging category will display a list of MAC addresses that are associated with each respective port number. This can be used to statically assign a MAC address access to a single port on the switch. Following the Add button on the page above, the administrator must enter a valid MAC address and associate it with a port number on the switch.
  • Page 85 Bridging – Unicast Addresses, Continued… Once a static MAC address has been added, it will be displayed in a list on the main page under Unicast MACs tab. Following the Remove button on the example above, an administrator can select a static MAC address from the list using a pull-down menu.

  • Page 86: Bridging - Multicast Addresses

    Note: If there are multiple ports on different VLANs, the 709FX will apply the static multicast address to the lowest VLAN-ID that is associated with one of the ports assigned to the static multicast address.
  • Page 87 Then click on the Remove button at the bottom of the page. Note: If there are multiple ports on different VLANs, the 709FX will apply the static multicast address to the lowest VLAN-ID that is associated with one of the ports assigned to the static multicast address.

  • Page 88: Bridging - Show Mac By Port

    Bridging – Show MAC by Port This feature shows the MAC addresses of devices connected to each switch port and the IP Addresses associated with the MACs. The browser page ‘View MAC by Port’ shows the MAC for the device found on each port, and the IP for the MAC presented if available.
  • Page 89 devices do not have an IP Address, and that some devices that do have an IP Address may not respond to the methods used to detect their IP Address. Invoking the ‘Assign IP’ button on the example above, the administrator will be presented with a form in which to enter a manually assigned IP, as below: When an IP has been manually entered a button is provided to ‘Delete IP’, and invoking it will allow the administrator to delete the manual association of an IP to that MAC.

  • Page 90: Rstp - Configuration

    RSTP – Configuration The Configuration tab under the RSTP category will display the RSTP information for the first VLAN. Using the pull-down menu at the top of the page an administrator can choose which VLAN to configure RSTP on. Once the VLAN is selected, the administrator may configure the bridge by clicking on the ‘Configuration’...
  • Page 91 RSTP – Configuration Continued… The configuration screen for the VLAN that was previously selected will look like the example below. Here the administrator can make changes such as the Hello Time, Forward Delay, Max Age, Priority, and the Status of RSTP on that VLAN. The administrator or user can see the current RSTP status of the ports on that VLAN by clicking on the ‘here’...
  • Page 92 RSTP – Configuration Continued… Following the link for the view RSTP Port Configuration at VLAN#, the administrator or user can see the current RSTP status of the ports on that VLAN. This will show information such as the Path Cost and the Port State.
  • Page 93 RSTP – Configuration Continued… If the administrator selects one of the ports on the previous screen, he or she can change the Port’s Path Cost, Priority, and the status of Admin Edge and Auto Edge. Page 93 of 196 (Revised 2012-05-01)

  • Page 94: Igmp - Configuration

    IGMP – Configuration The Configuration tab under the IGMP category will display the IGMP basic configuration settings. By default, IGMP is enabled. Following the Modify button, the administrator will see a list of configurable fields for the IGMP configuration. Once these fields are filled in to meet the needs of the administrator’s network, the changes may be updated by clicking the Update button at the bottom of the page.
  • Page 95 IGMP – Configuration, Continued… The IGMP Status pull-down allows the user to enable or disable IGMP completely. The Query Mode pull-down allows the user to set query mode for Automatic (the default), On (always), or Off (never): Page 95 of 196 (Revised 2012-05-01)
  • Page 96 Page 96 of 196 (Revised 2012-05-01)
  • Page 97 IGMP – Configuration, Continued… The Router Mode pull-down allows the user to choose router mode. ‘Auto’ allows for dynamically detected and manually set router ports. ‘Manual’ allows only for manually set router ports. ‘None’ allows no router ports. If Remove Unused Groups is checked then unused IGMP Groups will be removed and traffic with those multicast addresses will be treated as normal multicast.
  • Page 98 The user can specify the manual router ports: Page 98 of 196 (Revised 2012-05-01)

  • Page 99: Igmp - Show Group And Show Router

    IGMP – Show Group and Show Router The Show Groups tab under the IGMP category will display a list of IGMP groups based on the Group IP and the port number that it is associated with. The Show Routers tab under the IGMP category will display a list of Auto-detected Router IPs and the port numbers that they are associated with.
  • Page 100 Page 100 of 196 (Revised 2012-05-01)

  • Page 101: Igmp - Rfilter

    IGMP – RFilter The ‘rfilter’ (Router Multicast Data Filter) function allows you to choose whether or not DATA frames with KNOWN group multicast addresses are sent to the ‘router’ ports (links to other switches). Control packets (Join, Leave) will be sent to the router(s) regardless of this setting. “KNOWN” is known from dynamic IGMP Snooping operations.
  • Page 102 IGMP – RFilter, Continued… Modifying rfilter port settings: Page 102 of 196 (Revised 2012-05-01)

  • Page 103: N-View - Configuration

    N-View – Configuration The Configuration tab under the N-View category will display two basic variables for N-View, the status and the interval between packets. Following the Modify button on the above example, the administrator can modify the variable to change the frequency with which N-View reports information.

  • Page 104: N-View - Ports

    N-View – Ports The Ports tab under the N-View category will display a list of all the configured ports on the 709FX unit along with the ports transmitting multicast packets and MIB stats respectively. Page 104 of 196 (Revised 2012-05-01)
  • Page 105 N-View – Ports, Continued… Following the Modify button on the above example, the administrator can modify these two variables to enable or disable multicast out of the port and if MIB stats are sent out for those ports. Page 105 of 196 (Revised 2012-05-01)

  • Page 106: N-Ring - Configuration

    N-Ring – Configuration The Configuration tab under the N-Ring category will display the N-Ring basic configuration settings. By default, N-Ring is in Auto Member mode and the N-Ring Aging Time is 20 seconds. Following the Modify button on the above example, the administrator will see a list of configurable fields for the N-Ring configuration, as below.
  • Page 107 5. Any one 709FX can only participate in one N-Ring. 6. N-Ring copper ports must be run at 100Mb full duplex, including the default ‘autonegotiate’ as long as all switches in the ring support 100Mb full duplex. N-Ring – Configuration, Continued…...
  • Page 108 N-Ring – Configuration, Continued… If N-Ring Mode is “Manager”, then VLAN ID can be set to a unique VLAN id (1 ~ 4094). Default is 3333. If N-Ring Mode is “Manager”, then a pull-down allows selection as to whether the N-Ring ports are members of the VLAN’s Tagged or Untagged ports.

  • Page 109: N-Ring - Advanced Configuration

    N-Ring – Advanced Configuration If switch is an N-Ring Member, the following data will be shown: N-Ring Mode Current N-Ring mode of switch. Keep-Alive Timeout: Keep-Alive timeout is used when switch is active in an N-Ring. The range is 5-1000000 seconds. If switch is an N-Ring Manager, the following advanced configuration data will be shown: N-Ring Mode Current N-Ring mode of switch.
  • Page 110 The amount of time the ring member will wait in milliseconds for the ring manager to acknowledge receipt of the member's information before the member tries to re-send the information. The default is 1500. Delay Before Re-Entering Broken State The amount of time, in milliseconds, that must elapse before the ring is allowed to go back into the broken state. The default is 3000.
  • Page 111 Page 111 of 196 (Revised 2012-05-01)

  • Page 112: N-Ring - Status

    N-Ring – Status The Status tab under the N-Ring category will display the N-Ring status. Below is an example of N-Ring Status from a switch in defaults (N-Ring Auto Member) that is not an N-Ring Manager and has not become an “Active” N-Ring Member: Below is an example of N-Ring Status from an “Active”...
  • Page 113 N-Ring – Status, Continued… Below is an example of N-Ring Status from an N-Ring Manager with a healthy N-Ring: Page 113 of 196 (Revised 2012-05-01)
  • Page 114 N-Ring – Status, Continued… Below is an example of N-Ring Status from an N-Ring Manager with a faulted N-Ring. The red fields on the N-Ring Map show problems. Ports that are red indicate that the port is not linked. MAC addresses that are red indicate that there is no communication to that switch.
  • Page 115 N-Ring – Status, Continued… In rare cases an N-Ring can have a “Partial Fault”. An example of this is to have a break in just one fiber in a duplex channel fiber pair. The screenshot below shows N-Ring Manager Status when a ‘Higher’ N-Ring Port (TX2, TX8) is not receiving self health frames all the way around the N-Ring, though the other (low TX1, TX7) N-Ring port is: The screenshot below shows N-Ring Manager Status when a ‘Lower’...
  • Page 116 Page 116 of 196 (Revised 2012-05-01)

  • Page 117: N-Link - Configuration

    N-Link – Configuration The purpose of N-Link is to provide a way to redundantly couple an N-Ring topology to one or more other topologies, usually other N-Ring topologies. Each N-Link configuration requires 4 switches: N-Link Master, N-Link Slave, N-Link Primary Coupler, and N-Link Standby Coupler. Standard N-Link Configuration (Example): N-Ring N-Ring...
  • Page 118 N-Link – Configuration, Continued… Complex N-Link Configuration (Example): Configuration Notes: The Master and Slave must be part of the N-Ring topology. If using default configuration choices, the administrator only needs to configure the N-Link Master. The N-Link Slave and both Coupler switches will auto-detect any needed configuration. If not using default configuration choices, the administrator may also need to configure the Default Coupler port on the N-Link Slave.
  • Page 119 5. Connect the Control Link cable. Ensure that the Slave switch status now shows a state of “Slave” 6. Connect the Coupler Link cables. 7. Check N-Link status by selecting the N-Link Status View page. N-Link – Configuration, Continued… The Configuration tab under the N-Link category will display the configuration settings. By default, N- Link is in Auto Configure mode and will use TX4 as the Default Coupler port.
  • Page 120 N-Link – Configuration, Continued… The “N-Link Mode” is one of two choices, as below: If N-Link mode is “Master”, then the administrator must configure the Control Port (default: TX3) and the Primary Coupler Port (default: TX4). Once these fields are filled in to meet the needs of the administrator’s network, the changes may be saved by clicking the Update button at the bottom of the page.

  • Page 121: N-Link - Status

    N-Link – Status The Status tab under the N-Link category will display the N-Link status. If the switch is an N-Link Master or Slave, the following switch status and partner status information will be shown. Fields with a red background designate a fault condition. State: Current N-Link mode of switch.
  • Page 122 N-Link – Status, Continued… Below is an example of N-Link Status from an N-Link Coupler switch: Below is an example of N-Link Status from an N-Link Master switch: Page 122 of 196 (Revised 2012-05-01)
  • Page 123 N-Link – Status, Continued… Below is an example of N-Link Status from an N-Link Slave switch: Below is an example of N-Link Status from an N-Link Master and Slave where the Primary Coupler link is broken: Page 123 of 196 (Revised 2012-05-01)
  • Page 124 Page 124 of 196 (Revised 2012-05-01)
  • Page 125 N-Link – Status, Continued… Below is an example of N-Link Status from an N-Link Master and Slave where the Standby Coupler link is broken: Below is an example of N-Link Status from an N-Link Master and Slave where the Control link is broken: Page 125 of 196 (Revised 2012-05-01)
  • Page 126 Page 126 of 196 (Revised 2012-05-01)
  • Page 127 N-Link – Status, Continued… Below is an example of N-Link Status from an N-Link Master and Slave where the Partner link is broken: Page 127 of 196 (Revised 2012-05-01)
  • Page 128 Page 128 of 196 (Revised 2012-05-01)

  • Page 129: Cip - Configuration

    CIP – Configuration The Configuration tab under the CIP category will display basic variables for CIP, and the status: Cip Status: Enables or Disables CIP on the Switch. Default: Enabled. Multicast RPI: The minimum Requested Packet Interval for Class 1 (multicast) connections, in milliseconds. Requests for less than this value will be rejected.

  • Page 130: Cip - Status

    Major Revision: The Major Revision of the CIP implementation. Minor Revision: The Minor Revision of the CIP implementation. Serial Number (hex): CIP Serial number, unique across all N-Tron CIP devices. This is the last 4 octets of the base switch MAC.
  • Page 131 Page 131 of 196 (Revised 2012-05-01)

  • Page 132: Firmware/Config - Tftp

    The TFTP tab under the Firmware/Config category gives the administrator the ability to upload or download a config file for a 709FX Series switch. This allows administrators to backup their configurations to a server offsite in case they need to reload their custom configurations at a later time. Administrators can also...
  • Page 133 Page 133 of 196 (Revised 2012-05-01)

  • Page 134: Firmware/Config - Tftp, Continued

    Firmware/Config – TFTP, Continued For ‘uploading a saved config to server’ or ‘downloading a config from server’, there are checkbox choices that can be made as below. The most common example is to keep the pre-existing IP, Gateway, and Subnet Mask when otherwised downloading a config from the server.

  • Page 135: Support - Web Site And E-Mail

    Support – Web Site and E-mail If at any point in time you get confused or would like additional support directly from N-Tron, you may visit N-Tron’s web site, or e-mail N-Tron directly with the links provided for more information.
  • Page 136 Page 136 of 196 (Revised 2012-05-01)

  • Page 137: Rate Limiting - Broadcast Rate Limit Configuration

    Rate Limiting – Broadcast Rate Limit Configuration The Rate Limiting/Broadcast link will display all the ports that are installed in the 709FX Series unit and will list the Broadcast Pass Rate Percentage for each port. Broadcast Pass Rate Percentage defaults to 3% on 10/100Mbs ports.

  • Page 138: Rate Limiting - Multicast Rate Limit Configuration

    Rate Limiting – Multicast Rate Limit Configuration The Rate Limiting/Multicast link will display all the ports that are installed in the 709FX Series unit and will list the Multicast Pass Rate Percentage for each port. Multicast Pass Rate Percentage defaults to 100% on all ports.
  • Page 139 Page 139 of 196 (Revised 2012-05-01)

  • Page 140: User Management - Adding Users

    User Management – Adding Users The User Management link will display a list of all the users who have access to the management features of the switch and their access permissions. Following the Add button on the above example, the administrator can add another user and assign the user a username, a password, and the user’s permissions (user/administrator).

  • Page 141: User Management - Removing Users

    User Management – Removing Users In order to remove a user, simply click on the Remove button at the bottom of the page. Following the Remove button on the above example, the administrator can remove a user by entering in the user’s name and clicking the Remove button.
  • Page 142 Page 142 of 196 (Revised 2012-05-01)

  • Page 143: Logicalview

    709FX series switch. Ports that are linked will appear in green, while ports that are not linked will appear in black. The example below shows a 709FX with ports 1, 4, 5, 6, and 7 linked.

  • Page 144: Configuration - Save Or Reset

    The “Factory” button will reload N-Tron’s factory default configuration settings. Doing so will reconfigure the 709FX Series switch to factory defaults. In many cases it is desirable to restore factory defaults but retain certain settings. Checkboxes are provided to select the desired behavior. Note that if no Configuration Device is present, that is presented.
  • Page 145 If a Configuration Device is present, that is presented: Page 145 of 196 (Revised 2012-05-01)

  • Page 146: Help - Overview

    When the Help link is clicked on, you will see the Overview page that will have some basic definitions and more specific choices at the top of the screen. Although this page is not as detailed as the manual, it gives you a basic feel for different features the 709FX offers. Page 146 of 196...

  • Page 147: Help - Administration

    Help – Administration Following the Administration link on the help page, the administrator or user can see some information regarding the configuration options in the Administration category on the left side of the web management. Page 147 of 196 (Revised 2012-05-01)

  • Page 148: Help - Dhcp

    Help – DHCP Following the DHCP link on the help page, the administrator or user can see some information regarding the configuration options under the DHCP categories on the left side of the web management. Page 148 of 196 (Revised 2012-05-01)

  • Page 149: Help - Lldp

    Help – LLDP Following the LLDP link on the help page, the administrator or user can see some information regarding the configuration options in the LLDP category on the left side of the web management. Page 149 of 196 (Revised 2012-05-01)

  • Page 150: Help - Ports

    Help – Ports Following the Ports link on the help page, the administrator or user can see some information regarding the configuration options in the Ports category on the left side of the web management. Page 150 of 196 (Revised 2012-05-01)

  • Page 151: Help - Statistics

    Help – Statistics Following the Statistics link on the help page, the administrator or user can see some information regarding the configuration options in the Statistics category on the left side of the web management. Page 151 of 196 (Revised 2012-05-01)

  • Page 152: Help - Vlan

    Help – VLAN Following the VLAN link on the help page, the administrator or user can see some information regarding the configuration options in the VLAN category on the left side of the web management. Page 152 of 196 (Revised 2012-05-01)

  • Page 153: Help - Bridging

    Help – Bridging Following the Bridging link on the help page, the administrator or user can see some information regarding the configuration options in the Bridging category on the left side of the web management. Page 153 of 196 (Revised 2012-05-01)

  • Page 154: Help - Rstp

    Help – RSTP Following the RSTP link on the help page, the administrator or user can see some information regarding the configuration options in the RSTP category on the left side of the web management. Page 154 of 196 (Revised 2012-05-01)

  • Page 155: Help - Igmp

    Help – IGMP Following the IGMP link on the help page, the administrator or user can see some information regarding the configuration options in the IGMP category on the left side of the web management. Page 155 of 196 (Revised 2012-05-01)

  • Page 156: Help - N-View

    Help – N-View Following the N-View link on the help page, the administrator or user can see some information regarding the configuration options in the N-View category on the left side of the web management. Page 156 of 196 (Revised 2012-05-01)

  • Page 157: Help - N-Ring

    Help – N-Ring Following the N-Ring link on the help page, the administrator or user can see some information regarding the configuration options in the N-Ring category on the left side of the web management. Page 157 of 196 (Revised 2012-05-01)

  • Page 158: Help - N-Link

    Help – N-Link Following the N-Link link on the help page, the administrator or user can see some information regarding the configuration options in the N-Link category on the left side of the web management. Page 158 of 196 (Revised 2012-05-01)

  • Page 159: Help - Cip

    Help – CIP Following the CIP link on the help page, the administrator or user can see some information regarding the configuration options in the CIP category on the left side of the web management. Page 159 of 196 (Revised 2012-05-01)

  • Page 160: Help - Firmware/Config

    Help – Firmware/Config Following the Firmware/Config link on the help page, the administrator or user can see some information regarding the configuration options in the Firmware/Config category on the left side of the web management. Page 160 of 196 (Revised 2012-05-01)

  • Page 161: Help - Rate Limiting

    Help – Rate Limiting Following the Rate Limiting link on the help page, the administrator or user can see some information regarding the configuration options in the Broadcast or Multicast Rate Limiting categories on the left side of the web management. Page 161 of 196 (Revised 2012-05-01)

  • Page 162: Help - User Management

    Help – User Management Following the User Management link on the help page, the administrator or user can see some information regarding the configuration options in the User Management category on the left side of the web management. Page 162 of 196 (Revised 2012-05-01)

  • Page 163: Help - Other

    Help – Other Following the Other link on the help page, the administrator or user can see some information regarding other links or categories on the left hand side of the web manager, as above. Page 163 of 196 (Revised 2012-05-01)

  • Page 164: Cli Commands

    Parameters The command for which to get help. Examples N-TRON/Admin> ? The above command displays all the available commands. N-TRON/Admin> abcd ? Unknown Command: "abcd" Type "?" for a list of available commands. N-TRON/Admin> logout ? Logout Log out of console interface.

  • Page 165: Show, Add, Or Delete Arl Entries

    N-TRON/Admin> arl showmct No. Idx Val Port Mask Port(s) --- --- --- ---------- ---------- 1 0x00000000 (None) 1 0x00000001 TX1 N-TRON/Admin> arl add 00:19:b9:03:aa:79 3 0 1 1 N-TRON/Admin> arl del 00:19:b9:03:aa:79 1 Notes Page 165 of 196 (Revised 2012-05-01)

  • Page 166: Configuration Device Operations

    Configuration device model number. Valid values are: 1=At32K, 2=At64K, and 3=card. Compare Compare the configuration of the switch to the configuration device. Erase Erase the switch configuration on the configuration device. N-TRON/Factory> cfgdev info Example Port A: 0xd080 Board ID: 0x0005 (5)

  • Page 167: Show Or Set Cip Configuration

    CIP configuration (same as -show parameter). Syntax -Cip [-e[nable] | -d[isable] | -show] Parameters -Cip -show Show CIP configuration. -Cip [-e[nable] | -d[isable]] Set the CIP status to e(nabled) or d(isabled). N-TRON/Admin> cip -show Examples CIP Configuration: ------------------ Status: Enabled EthIp Interval: 10 ms...

  • Page 168: Save Or Reset The Configuration Settings

    : 192.168.1.250 Router Mode : Auto Manual Router Ports : (None) IGMP Number of Groups : 1 IGMP Resource Usage % : 1 N-TRON/Admin> igmp –status disabled IGMP Status : Disabled IGMP Version Query Mode : Auto CIP Querier Status...

  • Page 169: Show Or Set Mirror Configuration

    : Disabled Destination Port : TX1 Tx Source Ports : (None) Rx Source Ports : (None) N-TRON/Admin> mirror -status enabled -dp 6 -tx 1,3-5 -rx 1,3,5 Mirror Status : Enabled Destination Port : TX6 Tx Source Ports : TX1, TX3-TX5...

  • Page 170: Show Or Set N-Ring Configuration

    N-TRON/Admin> nring -ports ? Port Set -------- TX1 / TX2 TX7 / TX8 N-TRON/Admin> nring –mode m –ports 2 Do you Want to Save Changes and Restart the System Now [y/n]? … NOTES Show or Set N-View Configuration Command Name...

  • Page 171: Ping A Host

    Number of echo requests to send. -w timeout Timeout in milliseconds to wait for each reply. N-TRON/Admin> ping 192.168.1.119 Example … N-TRON/Admin> ping –n 6 192.168.1.119 … N-TRON/Admin> ping –t 192.168.1.119 … N-TRON/Admin> ping –w 2000 192.168.1.119 Reply from 192.168.1.119: time=970ms Reply from 192.168.1.119: time<10ms...

  • Page 172: Show Or Set Port Configuration

    -uah percent Set the usage alarm high percentage. The range is 0-100. -security state Set the security status for all supported ports to e(nabled) or d(isabled). N-TRON/Admin> port –sd 100f –flow enabled –dp 7 –pvid 2 5 Examples Port Port Admin...

  • Page 173: Reset The Switch

    -rw name Set the Authorized Community Name for SNMP Set requests. -trap name Set the Authorized Community Name for SNMP Traps. N-TRON/Admin> snmp –ro users Examples IP Address - Trap Stn.#1 : Value Not Configured IP Address - Trap Stn.#2 : Value Not Configured IP Address - Trap Stn.#3...

  • Page 174: Show Or Clear The Last System Error

    + Boot Loader: BL 2.0.5.1 (0x02000501) + OS Version: 3.2.1 + Build Date: 8 2009 at 15:10:57 + Copyright: Copyright (c) 2008-2009 N-TRON Corp. All rights reserved. + Processor: 66 MHz (66000000) + SDRAM Size: 16 MB + Flash Size:...

  • Page 175: Set Or Show The System Ip Configuration

    : 255.255.255.0 Fallback Gateway : 192.168.1.1 Press <ENTER> to Save Changes and Restart the System Now … N-TRON/Admin> sysip -i 192.168.2.119 -s 255.255.252.0 -g 192.168.1.1 IP Configuration Mode : Static Static IP Address : 192.168.2.119 (has been changed) Static Subnet Mask : 255.255.252.0 (has been changed)

  • Page 176: Show Or Set System Configuration

    -show Show configuration. -name label Set the switch name. -browser state Set the browser access status to e(nabled) or d(isabled). N-TRON/Admin> system –name “Private switch” –browser disabled Examples IP Configuration : Static IP Address : 192.168.1.201 Subnet Mask : 255.255.255.0 Gateway : 192.168.1.1...

  • Page 177: Vlan Addition And Deletion Example

    VLAN Addition and Deletion Example The screen capture below is the factory default VLAN configuration. Clicking on the “Modify” button allows one to add a new VLAN: When creating a new VLAN, a numeric ID is required, Name is entered. Note that N-Ring VLAN is a reserved name with a special meaning.
  • Page 178 Member Ports” are made at this time as well as the ports which are going to belong to the new VLAN. Additionally, the ports may be “Untagged on Egress”. The result of add is a “New VLAN”. In this case, it does not overlap the “Default VLAN” ports. Page 178 of 196 (Revised 2012-05-01)
  • Page 179 The ports of ”New VLAN” may be added back to “Default VLAN” to create overlapping VLANs. Note: If there are multiple ports on different VLANs, the 709FX will apply the static multicast address to the lowest VLAN-ID that is associated with one of the ports assigned to the static multicast address. If the lowest VLAN-ID contains all the ports assigned to the static multicast address (an umbrella VLAN), it will function for all those ports with no problems.
  • Page 180 But notice that the ports in “New VLAN” are not marked as “Untag on Egress” and are thus still tagged. And the “New VLAN” may be deleted when it is no longer required: Page 180 of 196 (Revised 2012-05-01)
  • Page 181 Page 181 of 196 (Revised 2012-05-01)
  • Page 182 And the “New VLAN” is removed. Note that the new configuration of the switch must be saved if the configuration must survive a power cycle. Page 182 of 196 (Revised 2012-05-01)

  • Page 183: Vlan Configuration Examples

    Broadcast, Multicast, and Unicast frames in one VLAN will not interfere with another isolated VLAN group. The examples in this section are shown as configured on a 708TX switch, but the 709FX series may be configured similarly with the additional ports.

  • Page 184: Example 2 - Basic Understanding Of Tagged Vlans (Admit - Tagged Only)

    Example 2 – Basic understanding of tagged VLANs (Admit – Tagged Only) Receiving Tagged VID Destination Transmitting Notes Port # in packet Address Port #s Untagged MAC on port TX2 Packet Discarded VID 2 MAC on port TX2 Unicast Traffic VID 4 MAC on port TX2 Packet Discarded...

  • Page 185: Example 3 - Basic Understanding Of Tagged Vlans (Admit - All)

    Example 3 – Basic understanding of tagged VLANs (Admit – All) Receiving Tagged VID Destination Transmitting Notes Port # in packet Address Port #s Untagged MAC on port TX2 Adds VID 2 to packet VID 2 MAC on port TX2 Unicast Traffic VID 4 MAC on port TX2...

  • Page 186: Example 4 - Basic Understanding Of Hybrid Vlans

    Example 4 – Basic understanding of Hybrid VLANs Receiving Tagged VID Destination Transmitting Notes Port # in packet Address Port #s Untagged MAC on port TX2 Unicast Traffic Untagged MAC on port TX3 Adds VID 2 in the packet VID 4 MAC on port TX2 Packet Discarded VID 4...

  • Page 187: Example 5 - Basic Understanding Of Overlapping Vlans

    Example 5 – Basic understanding of Overlapping VLANs Receiving Tagged VID Destination Transmitting Notes Port # in packet Address Port #s Untagged MAC on port TX2, Unicast Traffic VID=4 Untagged MAC on port TX3 Floods VLAN 4 VID 4 MAC on port TX2, Strips VID off packet VID=4 VID 4...

  • Page 188: Example 6 - Basic Understanding Of Vlans With Multicast Filtering

    Goes to ports TX6 and TX8 Note: If there are multiple ports on different VLANs, the 709FX will apply the static multicast address to the lowest VLAN-ID that is associated with one of the ports assigned to the static multicast address. If the lowest VLAN-ID contains all the ports assigned to the static multicast address (an umbrella VLAN), it will function for all those ports with no problems.

  • Page 189: Key Specifications (709Fx)

    KEY SPECIFICATIONS (709FX) Switch Properties Number of MAC Addresses: 8,000 Aging Time: Programmable Latency Type: 2.6 µs Switching Method: Store & Forward Case Dimensions Height: 4.3” / 10.9 cm Width: 2.4” / 6.1 cm Depth: 4.6” / 11.7 cm Weight (max): 1.6 / 0.73 kg...
  • Page 190 100 Mb Fiber Transceiver Characteristics Fiber Length 2km* 15km** 40km** 80km** -19dBm -15dBm -5dBm -5dBm TX Power Min -31dBm -31dBm -34dBm -34dBm RX Sensitivity Max Wavelength Min/Max 1310nm 1310nm 1310nm 1550nm * Multimode Fiber Optic Cable ** Singlemode Fiber Optic Cable Regulatory Approvals: Safety: Suitable for use in Class I, Division 2, Groups A, B, C and D Hazardous Locations, or Nonhazardous Locations only.

  • Page 191: Key Specifications (709Fx-Hv)

    KEY SPECIFICATIONS (709FX-HV) Switch Properties Number of MAC Addresses: 8,000 Aging Time: Programmable Latency Type: 2.6 µs Switching Method: Store & Forward Case Dimensions Height: 4.3” / 10.8 cm Width: 3.2” / 8.2 cm Depth: 4.6” / 11.7 cm Weight (max): lbs / 0.73 kg...
  • Page 192 100 Mb Fiber Transceiver Characteristics Fiber Length 2km* 15km** 40km** 80km** -19dBm -15dBm -5dBm -5dBm TX Power Min -31dBm -31dBm -34dBm -34dBm RX Sensitivity Max Wavelength Min/Max 1310nm 1310nm 1310nm 1550nm * Multimode Fiber Optic Cable ** Singlemode Fiber Optic Cable EMI, Immunity and Environmental Compliance IEC 61850-3 Electric Utility Substations IEEE 1613 Electric Utility Substations...

  • Page 193: Appendix A. Xml Settings File Example

    Appendix A. XML Settings File Example <!-- Overview of XML settings for N-TRON switches --> <!-- XML settings can be downloaded to a switch to configure the switch. XML settings cover a subset of the settings available through a web browser.
  • Page 194 MACAddress and SwitchName use current switch values. --> <MACAddress/> <SwitchName/> <OtherText>myClientID</OtherText> <!-- 255 character limit --> <OtherHex>0102de03ad00be09ef</OtherHex> <!-- 255*2 character limit --> </ClientID> </IPConfiguration> <!-- ______________________________________________________________________________________ --> <!-- User management --> <!-- A list of logon accounts (5 maximum) to add to the switch. -->...
  • Page 195 --> <!--The Advanced block is optional, and all elements within the block are optional.--> <Advanced> <!-- optional --> <!-- All elements below are optional --> <BroadcastAddress>192.168.2.255</BroadcastAddress> <DomainName>N-TRON.com</DomainName> <!-- 63 character limit --> <DNSServer1>192.168.2.10</DNSServer1> <DNSServer2>192.168.2.11</DNSServer2> <Gateway1>192.168.2.1</Gateway1> <Gateway2>192.168.2.2</Gateway2> </Advanced> <IPMaps> <!-- The DynamicRange is the only IP Map supported. You may have 0 or more.

  • Page 196: (Revised 2012-05-01)

    N-TRON, Corp. warrants to the end user that this hardware product will be free from defects in workmanship and materials, under normal use and service, for the applicable warranty period from the date of purchase from N-TRON or its authorized reseller. If a product does not...

Table of Contents
