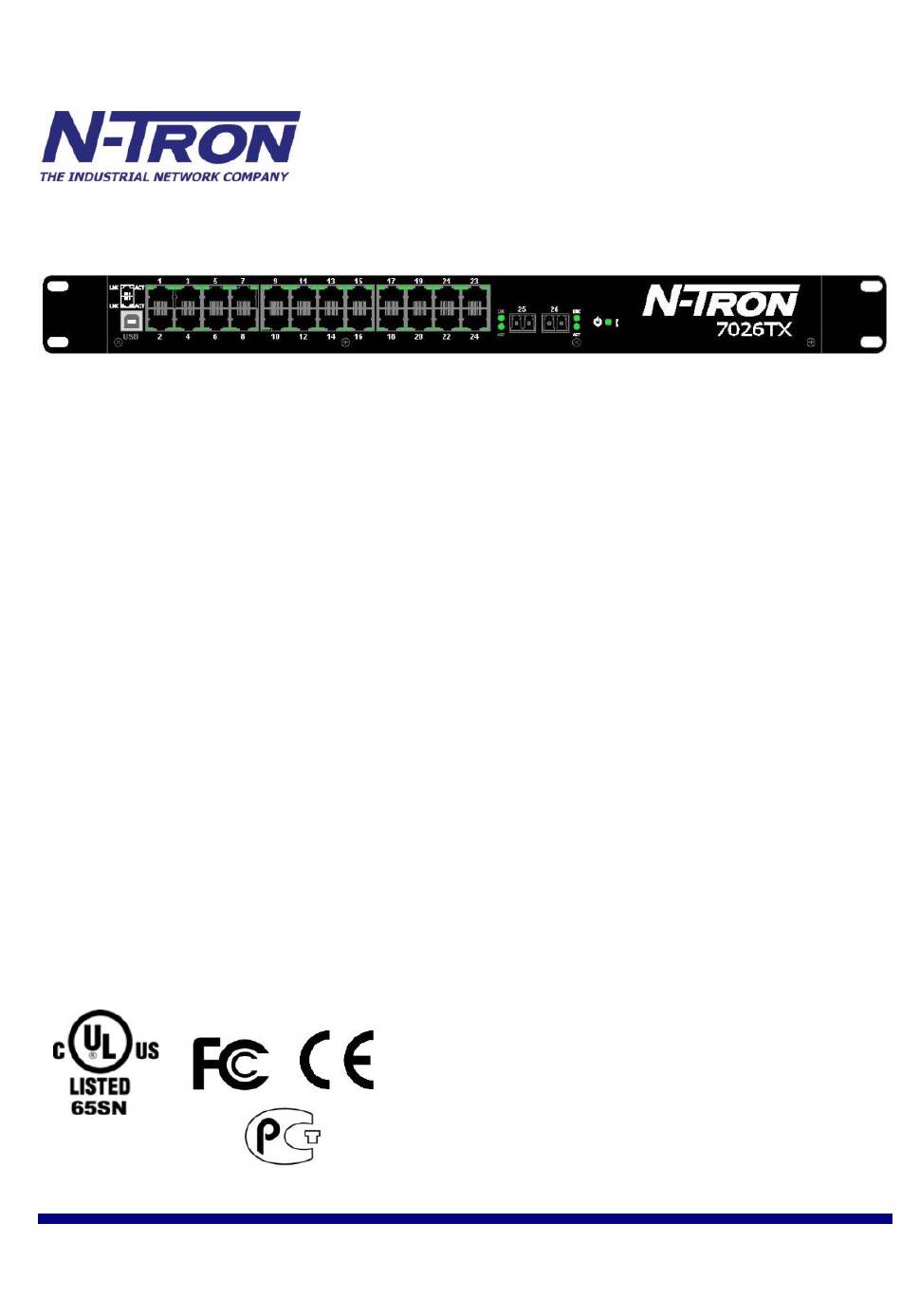

N-Tron 7026 Series Installation Manual

7026TX Industrial Ethernet Switch Installation Guide
The N-TRON 7026 Series
ideally suited for connecting Ethernet enabled industrial and or security equipment and is a fully managed
switch.
PRODUCT FEATURES
• Full IEEE 802.3 Compliance
• Twenty-four 10/100 BaseTX RJ-45
• Two Optional Gigabit ports:
1000BaseSX/LX Ports, LC style, and/or
o
1000BaseT Ports, RJ45 style
o
• Extended Environmental Specifications
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Offers Rapid Spanning Tree Protocol
• Trunk with other N-Tron trunking capable switches
over two ports
• Store & Forward Technology
• Plug and Play IGMP Support
• Rugged Rack Mount Enclosure
• Onboard Temperature Sensor
• Configuration Backup via optional SD Card
(NTCD-128)
•
• Power Input:
7026TX: Redundant DC Input (18-49VDC)
o
7026TX-AC: (90–264VAC) or (90-300VDC)
o
• Web Browser Management with detailed ring map and
fault location charting.
• Web Browsing and N-View Switch Monitoring
Industrial Ethernet Switch offers outstanding performance and ease of use. It is
PRODUCT CONFIGURATIONS
• 7026TX-XX
– Twenty Four 10/100 Base-TX RJ45 Copper Ports, and
two optional SFP transceivers
Where: XX = AC for AC voltage option. Blank otherwise.
Supported SFP (Mini-GBIC) Fiber Transceivers:
NTSFP-SX
NTSFP-LX-10
NTSFP-LX-40
NTSFP-LX-80
MANAGEMENT FEATURES
• IGMP Snooping
• VLAN
• QoS
• Port Trunking
• Port Mirroring
• LLDP
• CIP
• 802.1D-2004 Rapid Spanning Tree
• N-RING™ (N-Tron proprietary Ring Management)
• N-LINK™ (N-Tron proprietary Coupling Management)
• DHCP Server, Option 82 relay
• Port Security—MAC Address Based
(LC Style Connector, up to 550m)
(LC Style Connector, up to 10km)
(LC Style Connector, up to 40km)
(LC Style Connector, up to 80km)
