5
BATTERY CHARGING
Optional battery chargers
■

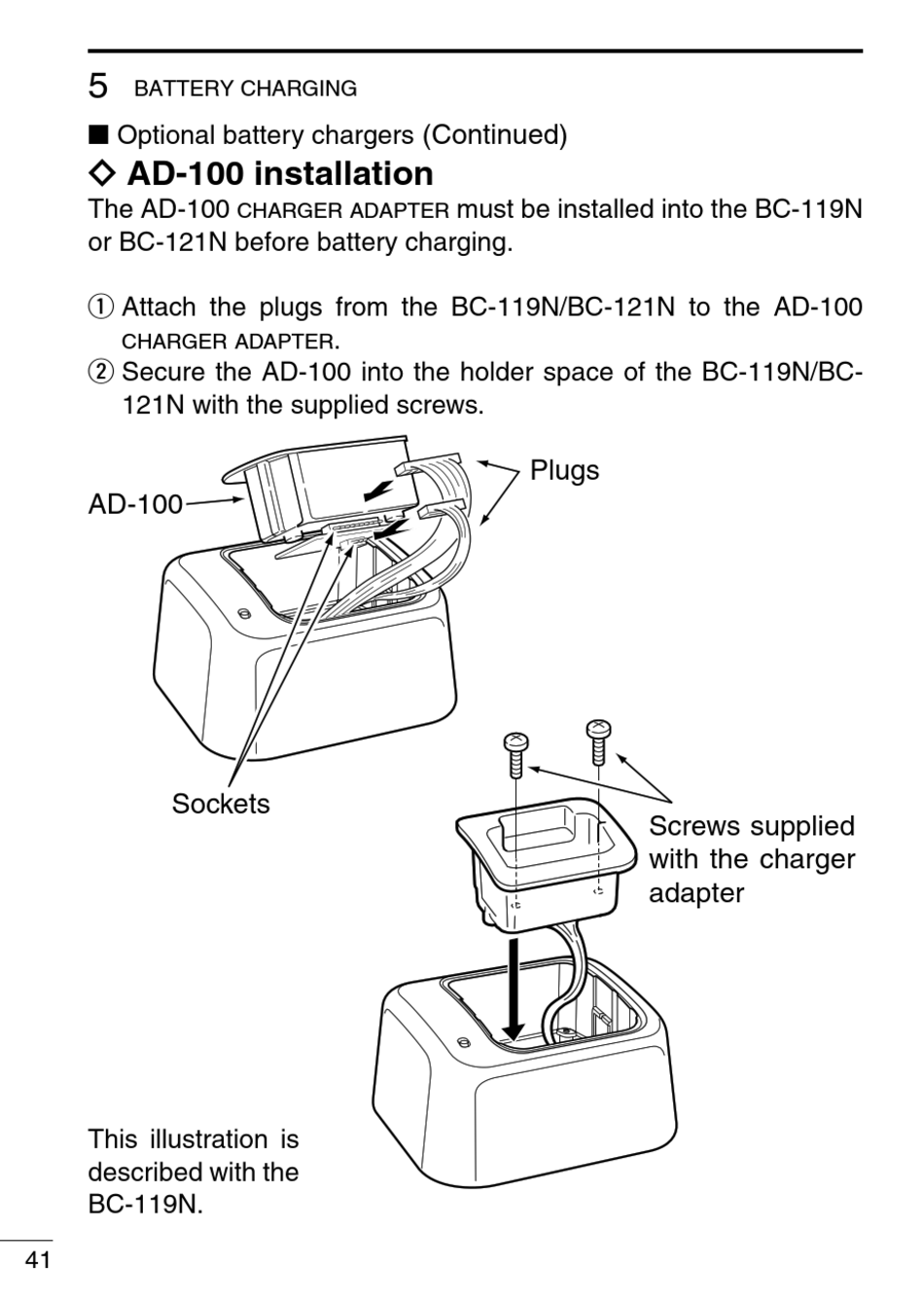

ï AD-100 installation
The AD-100
or BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the AD-100
charger adapter
w Secure the AD-100 into the holder space of the BC-119N/BC-
121N with the supplied screws.
AD-100
Sockets
This illustration is
described with the
BC-119N.
41
charger adapter
.
(Continued)
must be installed into the BC-119N
Plugs
Screws supplied
with the charger
adapter
