Panasonic TY-42TM6B - Monitor Terminal Expansion Board Dimensions

Specifications.
Hide thumbs


Advertisement

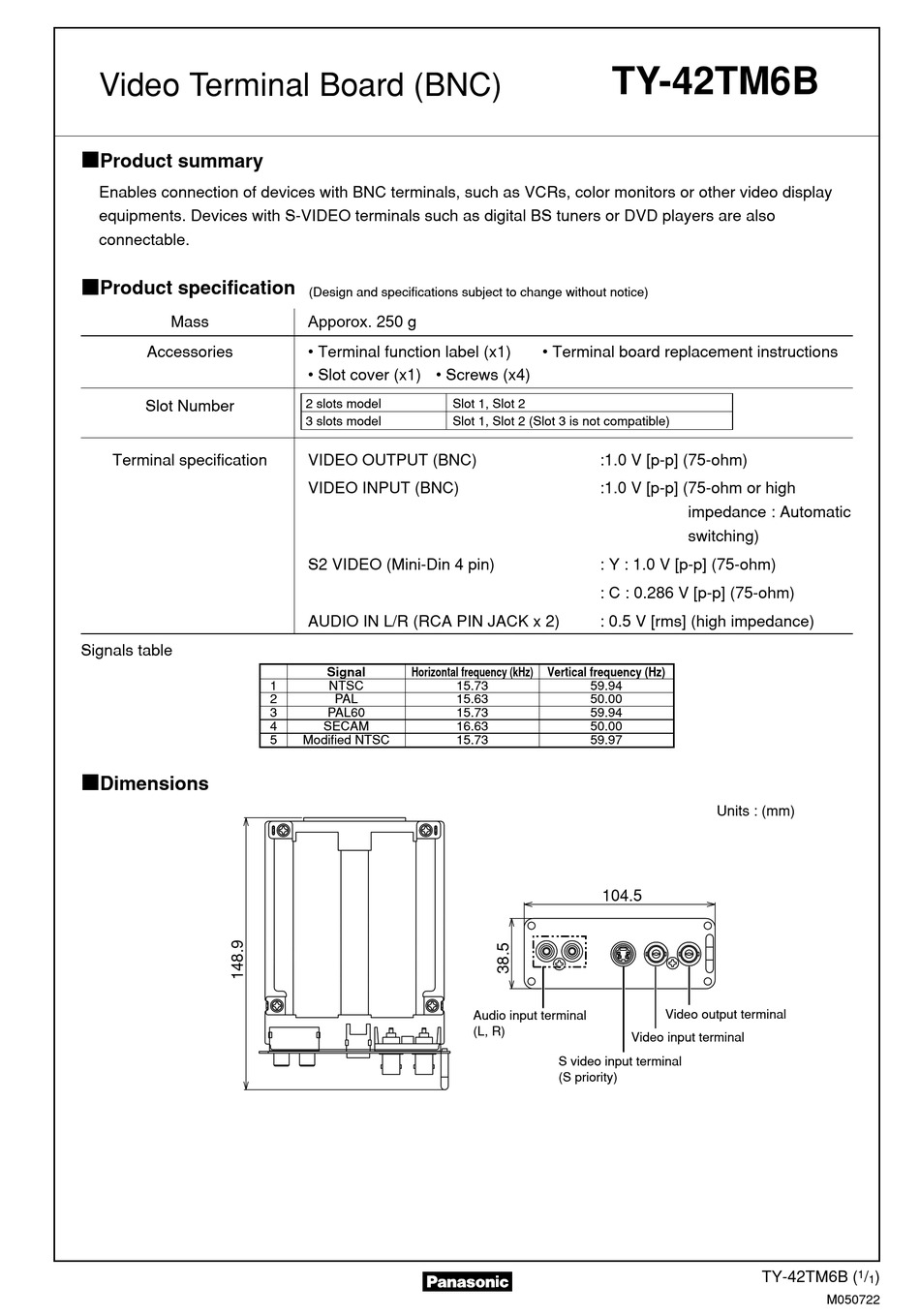

Video Terminal Board (BNC)
Product summary
Enables connection of devices with BNC terminals, such as VCRs, color monitors or other video display
equipments. Devices with S-VIDEO terminals such as digital BS tuners or DVD players are also
connectable.

Product specification

Mass
Accessories
Slot Number
Terminal specification
Signals table
Dimensions
(Design and specifications subject to change without notice)
Apporox. 250 g
• Terminal function label (x1)
• Slot cover (x1) • Screws (x4)
2 slots model
3 slots model
VIDEO OUTPUT (BNC)
VIDEO INPUT (BNC)
S2 VIDEO (Mini-Din 4 pin)
AUDIO IN L/R (RCA PIN JACK x 2)
Signal
Horizontal frequency (kHz)
1
NTSC
2
PAL
3
PAL60
4
SECAM
5
Modified NTSC
TY-42TM6B
• Terminal board replacement instructions
Slot 1, Slot 2
Slot 1, Slot 2 (Slot 3 is not compatible)
:1.0 V [p-p] (75-ohm)
:1.0 V [p-p] (75-ohm or high
: Y : 1.0 V [p-p] (75-ohm)
: C : 0.286 V [p-p] (75-ohm)
: 0.5 V [rms] (high impedance)
Vertical frequency (Hz)
15.73
59.94
15.63
50.00
15.73
59.94
16.63
50.00
15.73
59.97
104.5
Audio input terminal
(L, R)
S video input terminal
(S priority)
impedance : Automatic
switching)
Units : (mm)
Video output terminal
Video input terminal
TY-42TM6B (
1
/
)
1
M050722
