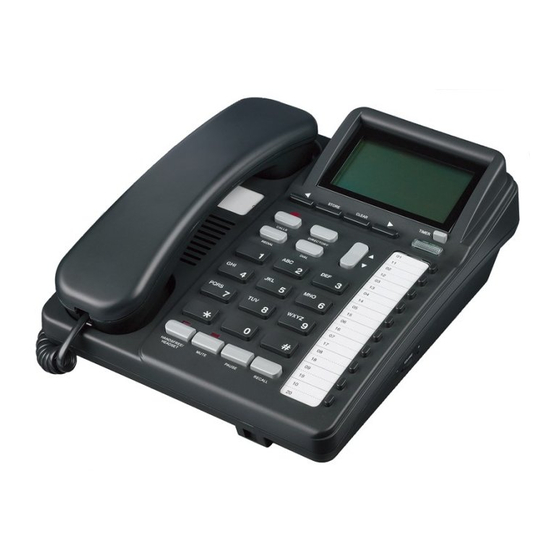

- Page 1 CALLING LINE IDENTITY TELEPHONE MODEL 9859 IDea OPERATING INSTRUCTIONS...
-
Page 3: Table Of Contents
Contents 1. FEATURES ................... 5 2. IMPORTANT NOTES ..............6 CONDITIONS OF USE ............................6 EMERGENCY CALLS ............................6 3. SETTING UP ................. 8 UNPACKING ................................. 8 INSTALLATION ..............................8 PROGRAMMING THE CLOCK ..........................8 To set the time ..............................9 LINE CONNECTION ............................. - Page 4 RINGER INDICATOR ............................15 RINGER VOLUME CONTROL ........................... 15 RINGER PITCH CONTROL ..........................15 VOLUME SLIDER ............................... 15 LIQUID CRYSTAL DISPLAY (LCD) ........................15 HANG-UP FUNCTION ............................16 PAUSE FUNCTION ............................. 16 FOR MANUAL DIALLING ..........................16 TIMER KEY FUNCTION ............................. 16 PREVIEW DIALLING ..............
- Page 5 To select mode 2 ....................25 DIALLING A NUMBER FROM THE MEMORIES ....................26 REDIAL MEMORY .............................. 26 8. HANDSFREE AND HEADSET OPERATION......... 27 HANDSFREE OPERATION ..........................27 VOLUME SLIDER ............................... 27 HANDSFREE MICROPHONE ..........................27 HANDSFREE BUTTON AND INDICATOR ....................... 27 HINTS FOR HANDSFREE OPERATION ......................
-
Page 7: Features
1. FEATURES * Alpha-numeric keypad * Large LCD * Clock / timer * 30 number incoming call memory * Time Date and number of new calls * 40 personal Directory memories * Displays number and name of caller (if available) * 10 one-touch / 10 two-touch repertory dialling memories * 5 number redial memory * EEPROM memory feature... -
Page 8: Important Notes
2. IMPORTANT NOTES This Interquartz telephone has been manufactured to very high standards and is very easy to use. Please read this manual carefully to find out how to use the features. CONDITIONS OF USE This Interquartz telephone is approved for use on private branch exchange extensions business or private direct exchange lines. - Page 9 FIGURE 1 IDEA PROFILES TOP VIEW OF IDea REAR VIEW OF IDea BOTTOM VIEW OF IDea IDE VIEW OF IDea...
-
Page 10: Setting Up
3. SETTING UP UNPACKING The carton contains the following * Telephone body and handpiece * Coiled cord * RJ11 - RJ45 line cord, * Operating manual, * Power pack INSTALLATION 1. Fit the coiled cord to the appropriate sockets in the HANDSET and tel- ephone base. -
Page 11: To Set The Time
To set the time * Press the STORE key * Press the TIMER key - Follow the screen prompts and enter the time using the Alpa-Numeric keypad - hour time (HH) as two digits - minute time (mm) as two digits * Then enter 0, for am * 1 for pm * 2 for 24 hour mode... -
Page 13: Technical Adjustment - For Correct Operation
HANDSET. The selectors, unless pre-set by your dealer, one set to complex and AGC'B'. Note that for direct lines the factory. Setting should be altered. If in doubt, contact your Interquartz Dealer. HANDSFREE / EADSET SWITCH... -
Page 14: Handsfree Microphone Sensitivity Adjustment
sensitivity. The control is located on the underside of the telephone (see fig 1). The adjustment can be made with a small screwdriver or similar implement that will fit into the control slot. To make this adjustment 1. Connect the HEADSET to the socket at the rear of the telephone (see fig 1) 2. -
Page 15: General Controls And Indicators
FIGURE 3. GENERAL CONTROL AND INDICATES 5. GENERAL CONTROLS AND INDICATORS HANDSFREE / HEADSET KEY AND INDICATOR When the HANDSFREE / HEADSET key is pressed the red indicator will illuminate to show that the HANDSFREE mode or headset mode is activated. Press the key again to release the HANDSFREE or HEADSET mode. -
Page 16: Pause Key
when the mute condition is active. Press mute again to release the mute condi- tion. PAUSE KEY Used for both manual and memory dialling. Pressing the pause key will cause the telephone to delay all following dialling functions for 2.5 seconds after which further dialling may commence*. -
Page 17: Cursor Keys
CURSOR KEYS TIMER KEY The timer key is used to select either the timer display or clock display. MEMORY KEYS 10 memory keys allow access to 20 memory locations, 10 one-touch and 10 two-touch. ALPHA-NUMERIC KEY PAD A standard 4 x 3 configuration for manual dialling and for numeric and character entries during memory programming. -
Page 18: Hang-Up Function
PABX or to any network where a pause is required, eg between internal and external dial tones contact your PABX sup- plier or authorized Interquartz dealer if assistance is required. FOR MANUAL DIALLING Example : To dial the telephone number 94643333, then resume on a telephone connected to a PABX whose access code is 0 followed by a 4 second pause. -
Page 19: Preview Dialling
display will return to the continuing timer mode. While the telephone is not in use, pressing the timer key changes the mode display in the following sequence: * previous elapsed time * reset and start timer * stop timer * time of day The timer key is also used to set the clock (see installation section) PREVIEW DIALLING The preview dialling option allows you to enter a phone number into the keypad... -
Page 20: To Change This Setting
To change this setting: * Press and hold the calls key until the display shows. SET LIST TYPE < UNANSWERED ALL > * The current setting sill flash. Using the cursor keys select the desired mode. * Press the store key to set the mode. VIEWING THE CALLS LIST When the telephone receives a new call, the red indicator above the calls key will flash and the new calls display on the LCD will indicate the number of new... -
Page 21: To Delete An Entry
The calls list can be edited to remove unwanted enteries or change the content of existing enteries. To Delete an Entry * Press the CALLS key * Use the scroll key to select the unwanted entry * Press the CLEAR key twice in quick succession * The LCD will display ERASED when the procedure is complete To edit an existing entry * Press the CALLS key... -
Page 22: To Store An Entry In The Directory
TO STORE AN ENTRY IN THE DIRECTORY * Press STORE * Press DIRECTORY A screen prompt will indicate how many enteries your directory contains followed by the prompt ENTER NUMBER. * Enter desired number on the Alpha-Numeric keypad * Press STORE The next screen prompt will read ENTER NAME when the prompt disappears, a shaded box will Flash under the number you have just entered. -
Page 23: Editing Your Personal Directory
* Press the key on the Alpha-Numeric keypad that corresponds to the first letter of the directory entry that you wish to view e.g If you wish to view on entry with the name NEIL * Press the 6 key twice (N) A screen prompt will read SEARCHING N and then the first entry in the direc- tory beginning with the letter N will be displayed * Use the scroll key... -
Page 24: Memory Operation
FIGURE 4. CALLER DISPLAY INDICATORS AND INFORMATION FIELDS 7. MEMORY OPERATION The IDea is capable of storing 20 memories in 10 one-touch and 10 two-touch memory locations. Two user selectable memory modes enable various memory locations to be protected MEMORY BACK-UP An EEprom chip inside the telephone (see fig 2) stores both the one and two- touch memories and prevents them from being lost during power failure. -
Page 25: One-Touch Memories
All memories are user accessible The memory mode selection switch is factory set to mode 1. ONE-TOUCH MEMORIES Located down the right side of the keyboard, these buttons provide easy dialling of often used numbers. Each memory can store 32 digits and 20 characters. -
Page 26: Dialling A Number From The Memories
* A 'BEEP' and a screen prompt STORE COMPLETE will let you know the entry was accepted. * A 'BOOP' will tell you to try again. DIALLING A NUMBER FROM THE MEMORIES To dial a number from the one-touch memories * Lift HANDSET or press HANDSFREE * Press desired memory key * Press desired memory key... -
Page 27: Storage Procedure
STORAGE PROCEDURE * Press STORE * Enter the desired number on the Alpha-Numeric Keypad (32 digits maximum) * The number you have entered will be display on the screen * If you have made an error the cursor keys may be used to edit the entry * If the number is correct press the STORE key * A screen prompt will ask you to ENTER NAME... -
Page 28: Dialling A Number From The Memories
* To activate mode 2. Lift the HANDSET (OFF HOOK) and then replace the HANDSET (ON HOOK) DIALLING A NUMBER FROM THE MEMORIES To dial a number from the one-touch memories * Lift HANDSET or press HANDSFREE. * Press desired memory key. * Press desired memory key * Lift HANDSET or press HANDSFREE To dial a number from the two-touch memories... -
Page 29: Handsfree And Headset Operation
8. HANDSFREE AND HEADSET OPERATION HANDSFREE OPERATION For the HANDSFREE function to operate, the HANDSFREE/HEADSET selection switch must be set to HF (see installation section) VOLUME SLIDER Adjusts the volume of sound from the SPEAKER. HANDSFREE MICROPHONE Located at the front of the phone (fig 1), it's function to reproduce your voice, as you speak, to the other party while your telephone is in HANDSFREE mode. -
Page 30: Hints For Handsfree Operation
3. resume your conversation using the handsfree function Outgoing call using HANDSFREE (manual or memory dialling): 1. press HANDSFREE / headset 2. dial require number on ALPHA-NUMERIC KEYPAD or press desired MEMORY button, 3. speak as required 1. dial required, number on ALPHA-NUMERIC KEYPAD or press desired memory key 2. -
Page 31: Volume Slider
must be set to HS (see installation section). A headset mic adjustment allows most headsets on the Australian market to function correctly when used with the IDea telephone (see installation section) Incoming call using a HEADSET 1. telephone rings 2. press handsfree / HEADSET 3. -
Page 32: Training Mode
If your phone is connected to any system where dialling must be grouped, such as between internal and external dial tones, then the PAUSE function of the telephone will be required. If in doubt, check with your system supplier or Interquartz dealer, as failure to observe your system's requirements may lead... -
Page 33: Pause Button
to difficulty in making outgoing external calls. If you have determined that a pause is required by your PABX or switchboard, please consult the following sections of this manual to select the best alternative : * PAUSE BUTTON * AUTOMATIC PAUSE INSERTION Holding and Transferring Calls The method used for these functions is dependent on your system type, so you will need to check the system's Extension User Guide. -
Page 34: Failure To Operate And Service Difficulties
* Test the 'Suspect' telephone on a known good line if the fault still occurs the fault is the 'Suspect' telephone. Consult your Interquartz dealer for further advice if necessary. 11. THUNDERSTORMS The telephone, in common with household electrical appliances, can be a source of electric and acoustic shock during thunderstorms. -
Page 35: Warranty
This guarantee is in addition to all other Warranties or Guarantees expressed implied by the Trade Practices Act or other Commonwealth or State laws and all other obligations and liabilities on the part of Interquartz (A'asis)Pty. Limited. 13. SERVICE CENTERS VICTORIA PH. - Page 36 Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. ©Copyright INTERNATIONAL QUARTZ LTD. 1998...
