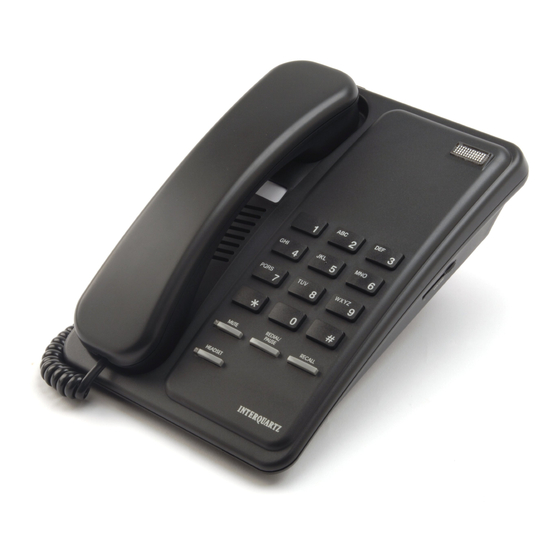

Enterprise Telephone
Model 98390
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enterprise 98390 and is the answer not in the manual?

Questions and answers

Related Manuals for Interquartz Enterprise 98390

Summary of Contents for Interquartz Enterprise 98390

  • Page 1 Enterprise Telephone Model 98390 OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    This Interquartz telephone has been manufactured to very high standards and is very easy to use. Please read this manual carefully to find out how to use the features. 1. Important Notes ... 2 Intended use ... 2 Telephone facilities ... 2 REN number ...

  • Page 3: Important Notes

    Intended use This apparatus is intended for use on 2 wire analogue PSTN and PABX circuits within Europe. Interquartz (UK) Limited declares under its sole responsibility that this product Model : ENTERPRISE PHONE Is in conformity with the following relevant harmonized standards Health &...

  • Page 4: Ren Number

    REN of 1 Emergency calls Calls can be made on this telephone to contact the emergency services. The European code for emergency services is 112, however, you can still use 999 in the UK. An access code may also be required, if the phone is connected to a PABX.

  • Page 5: Installation

    2. Installation This telephone is designed to plug straight into a modular style socket. If you do not have one of these sockets, they can be obtained from your Network Supplier. Connection Insert the line cord into the socket. Set the ringer volume control, as desired.
  • Page 6 To enable the handset to be supported in the cradle when the phone is mounted on the wall, follow the procedure shown in Figure 3 to reverse the HANDSET RETAINER. 1. Use your thumb to press the HANDSET RETAINER 3. Turn the HANDSET RETAINER 180°...

  • Page 7: Telephone Features

    3. Telephone Features Ringer Indicator Flashes when the telephone rings with an incoming call. Ringer Volume Switch Located on the base of the unit (see Figure 4). Move switch to select no sound (OFF), muted sound (LOW) or full sound (HIGH) for ringing on incoming call.

  • Page 8: Mute Button

    Pressing and releasing the button a second time will cancel the mute and return to normal conversation. If the telephone handset is replaced on the cradle with the mute "on", the mute will automatically be released when the handset is next lifted.

  • Page 9: Pause Function

    For servicing and replacement, you can purchase a suitable headset through an INTERQUARTZ approved distributor or call + 44 (0) 161 763 3122 or email sales@interquartz.co.uk. Pause Function The Pause command may be used if the phone is connected to certain types of PABX or to any network where a pause is required.

  • Page 10: Pabx & System Usage

    5. PABX & System Usage This telephone can be used behind a PABX or on a network that utilizes the recall function. There are many such systems and whilst it is likely that no problems will be encountered, it cannot be guaranteed that the telephone will operate correctly under all circumstances and any cases of difficulty should be referred to your supplier.

  • Page 11: Voice Messaging

    (Technical note : S1 and S2 are for reverse polarity messaging systems. With such a system in use, if the telephone does not respond in the S1 position, switch it to the S2 position and it should then respond.

  • Page 12: Maintenance And Problem Solving

    Your telephone is a precision electronic instrument. Avoid rough handling and extreme temperatures. Use a mild detergent and a damp cloth when cleaning. Never use a stronger cleaner. If your telephone does not appear to be working correctly, please check the following : No Dialling tone...

  • Page 13: Warranty And Service

    2005. The six year warranty, cover will apply until 12 March 2011. A warranty is designed to cover either manufacturing faults or component defects. It is not designed to cover fair wear and tear. The Interquartz warranty is no exception.
  • Page 14 Make sure that you tell us what is wrong with the phone. DO NOT FORGET TO INCLUDE YOUR OWN NAME AND ADDRESS. We ask that you bear the cost of returning the telephone to us. We will return it to you, at our expense.
  • Page 15 This telephone is approved to EEC directive 1999/5/EC Distributed in the United Kingdom by Interquartz (UK) Limited Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. 3C39001-HS12B ©Copyright INTERNATIONAL QUARTZ LTD. 2005...
