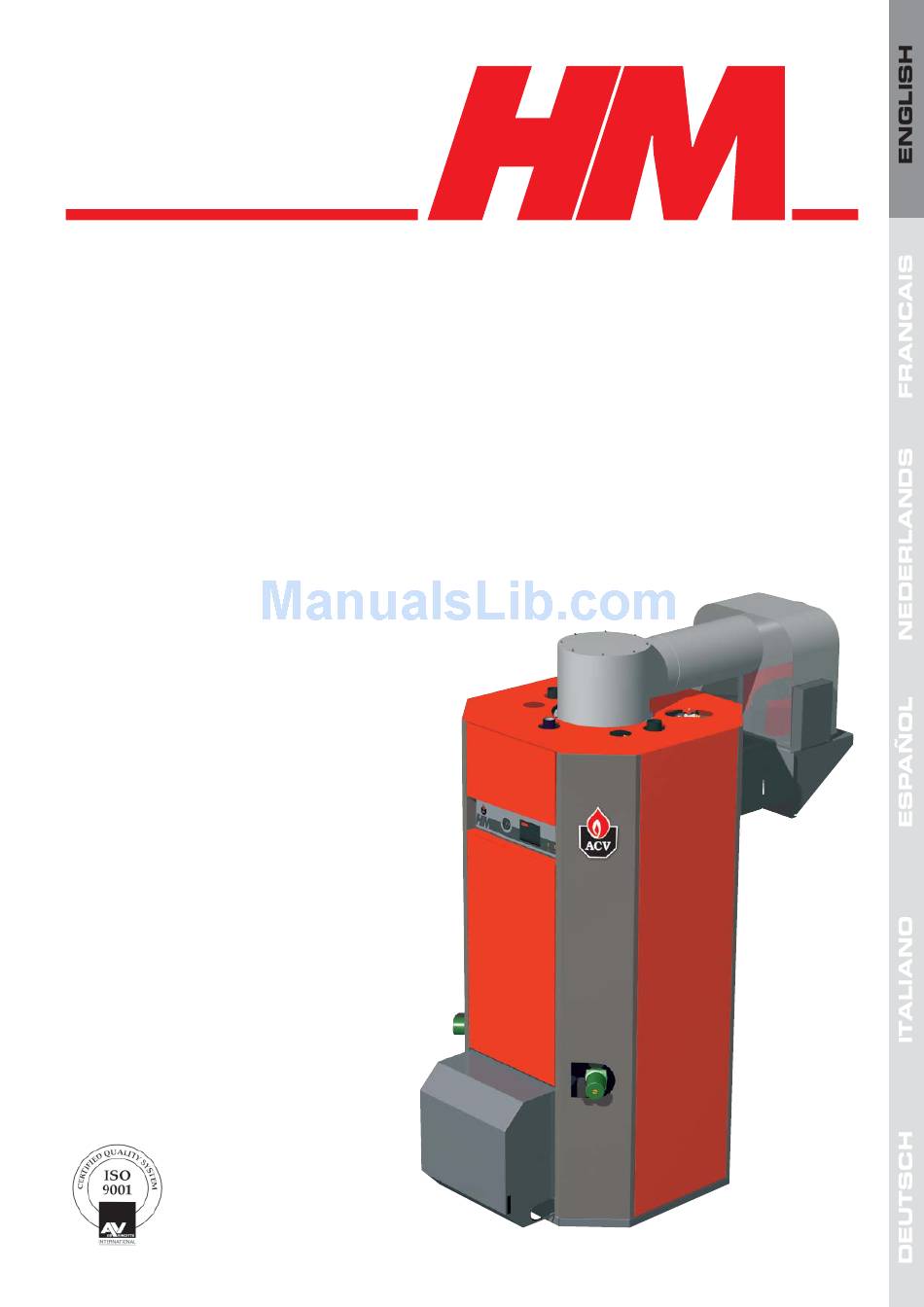

- Page 1 HeatMaster ® Assembling and installation instructions HeatMaster 201 Booster ® HeatMaster 200N (Gas) Booster ® EN • 1 664Y2900.C...
- Page 2 Essential instruction for the safety of persons • The parts may only be replaced by genuine factory parts. You and the environment. will find a list of the spare parts and their ACV reference number at the end of this document. Danger of electrocution.
-
Page 3: Technical Characteristics
DESCRIPTION PACKING DIMENSIONS The HeatMaster ® 200N / 201 Booster 1696 are delivered in several packing: Pack 1 : HeatMaster insulated body with control panel. Pack 2 : Complete jacket Pack 3 : Chimney reduction with horizontal exhaust and gasket. Pack 4 : Low temperature hydraulic kit including 4-ways valve, tubes and hydraulic components. -
Page 4: Electrical Connection
ELECTRICAL CONNECTION ® HeatMaster 201: serial number > at 1000 Flow sensor (14) Y/Gr - Mount the NTC6 sensor on the flow tube. - Connect the sensor to the 15 and 16 terminals. Heating pump (16) Y/Gr Connect the heating pump on the terminal block: line voltage to 07, neutral to 08 and ground to 09. - Page 5 ELECTRICAL CONNECTION ® HeatMaster 201: serial number < at 1000 Flow sensor (14) Y/Gr - Mount the NTC6 sensor on the flow tube. - Connect the sensor to the 15 and 16 terminals. Heating pump (16) Y/Gr Connect the heating pump on the terminal block: line voltage to 07, neutral to 08 and ground to 09.
- Page 6 ELECTRICAL CONNECTION ® Base for relay and reversing relay HeatMaster 200N ACV code: The terminals numbering refer to the control panel of the 54428195 : base relay HeatMaster ® 200N 54428220 : reversing relay - Connect terminals 9 and 10 to the solenoid of the reversing relay (18).
- Page 7 BOOSTER KIT ASSEMBLY 5. Mount the two M-M union connections on the flow and the return of the boiler-body. 1. Replace the two plugs located on the T - of both expansion vessels to the right of the boiler by two 3/4” - 1” reducers. 6.
- Page 8 BOOSTER KIT ASSEMBLY 9. - Place the back right side panel. 13. Mount the second 2” tube - Connect the the upper tube of the Booster shunt loop. with the left hand thread on the coupling. Leave some threads for later adjustment.
- Page 9 BOOSTER KIT ASSEMBLY 17. Adjust the RH / LH 20. Mount the 6 studs on the coupling to mate the faces flange and put the gasket of union connection. in place. 21. Locate the flue collector hood and fit it together with the flue tube of the Booster.
- Page 10 BOOSTER KIT ASSEMBLY 24. Hydraulic connexion of the heating system. 25. Electric connexion of the shunt pump (M5) : see pages 4, 5 and 6. 26. Commissioning of the system and control of the complete installation : see HeatMaster 200N / 201 technical manual. EN •...
