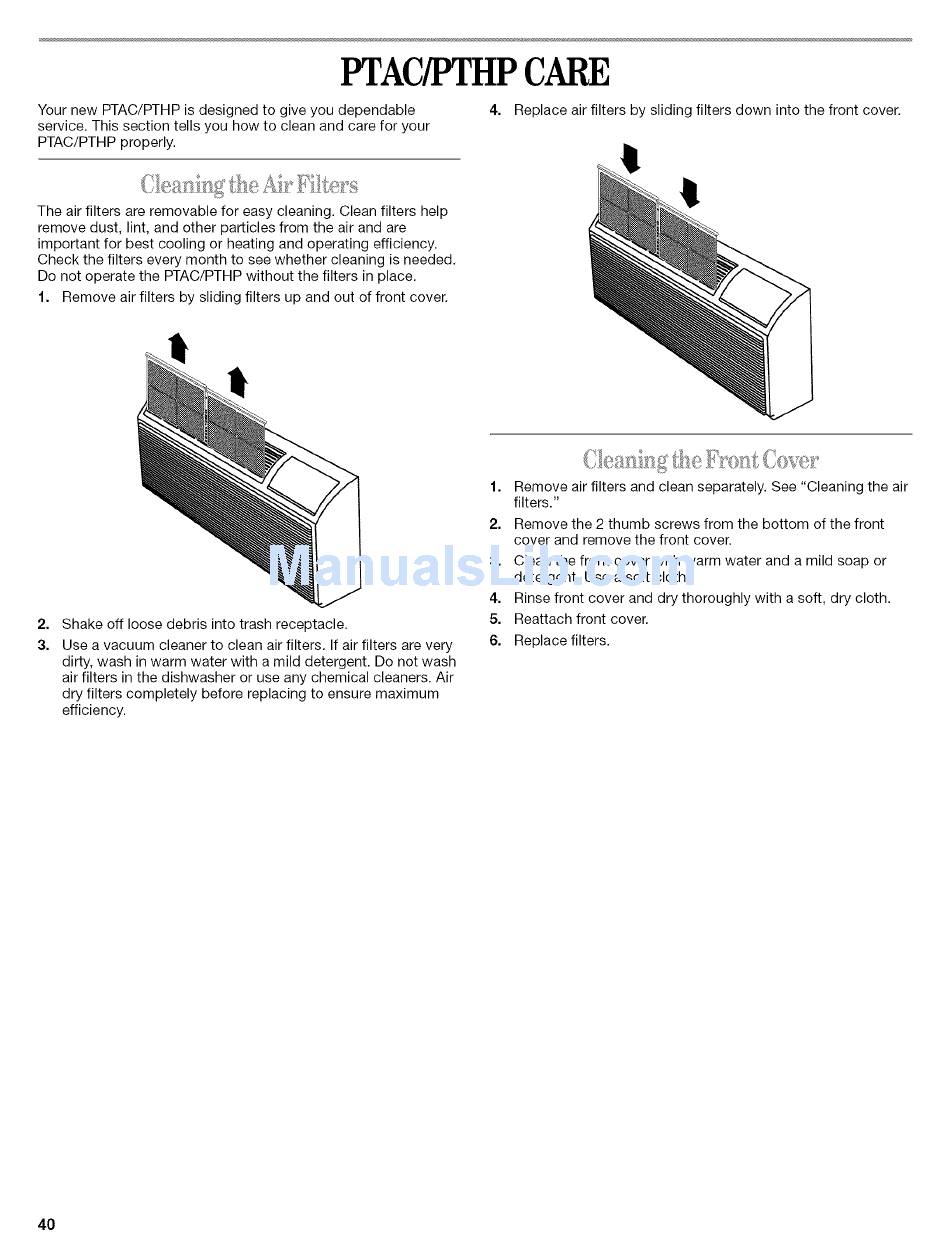

Ptac/Pthpcare; Cleaning The Air Filters - Whirlpool Packaged Terminal Air Conditioner Installation Manual

PTAC/PTHPCARE
Your new PTAC/PTHP is designed to give you dependable
service. This section tells you how to clean and care for your
PTAC/PTHP properly.
4. Replace air filters by sliding filters down into the front cover.
The air filters are removable for easy cleaning. Clean filters help
remove dust, lint, and other particles from the air and are
important for best cooling or heating and operating efficiency,
Check the filters every month to see whether cleaning is needed,
Do not operate the PTAC/PTHP without the filters in place,
1. Remove air filters by sliding filters up and out of front cover.
2.
3.
Shake off loose debris into trash receptacle.
Use a vacuum cleaner to clean air filters. If air filters are very
dirty, wash in warm water with a mild detergent. Do not wash
air filters in the dishwasher or use any chemical cleaners. Air
dry filters completely before replacing to ensure maximum
efficiency.
1. Remove air filters and clean separately, See "Cleaning the air
filters."
2. Remove the 2 thumb screws from the bottom of the front
cover and remove the front cover.
3. Clean the front cover with warm water and a mild soap or
detergent. Use a soft cloth.
4. Rinse front cover and dry thoroughly with a soft, dry cloth.
5. Reattach front cover.
6. Replace filters.
4O
