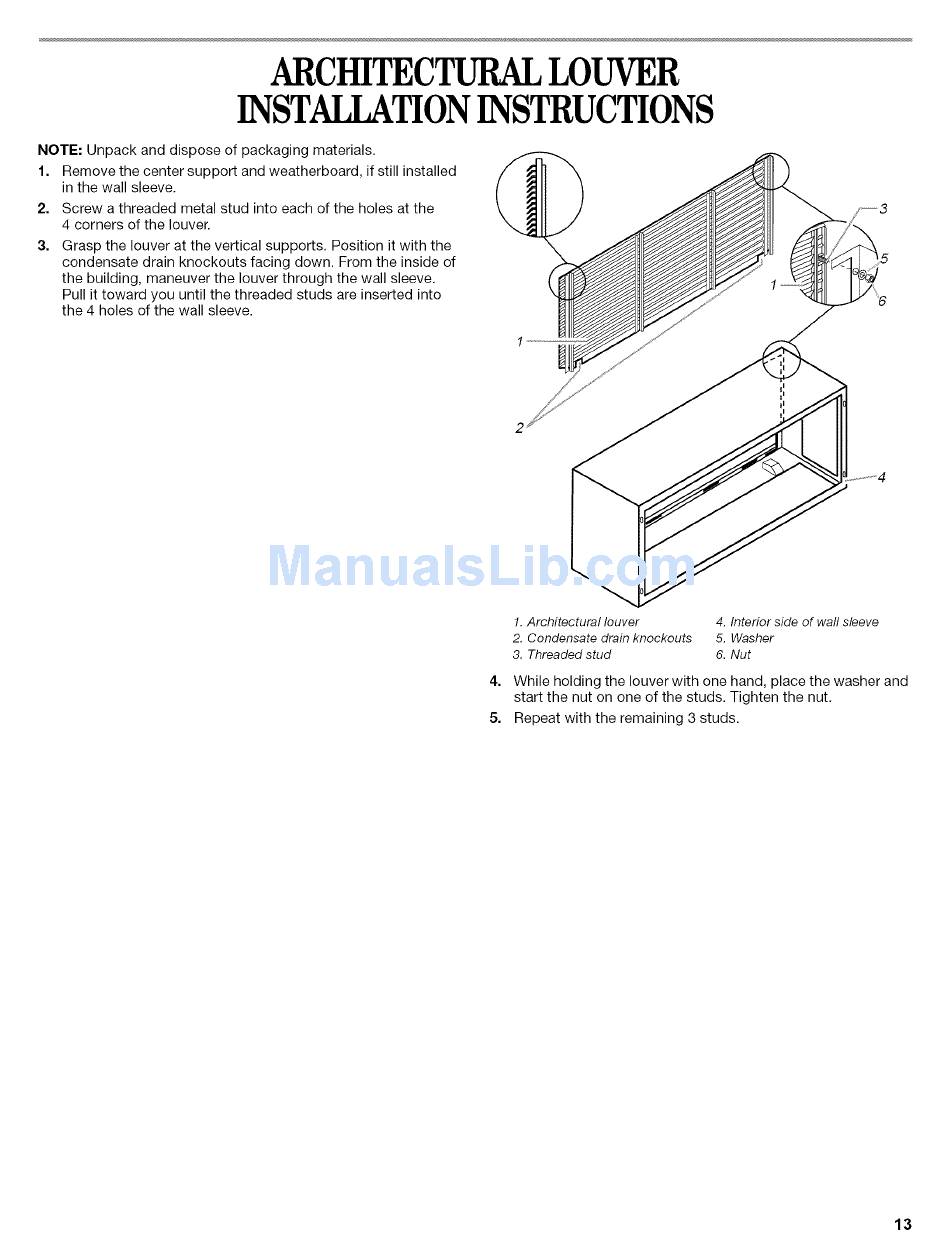

ARCHITECTURALLOUVER
INSTAilATION INSTRUCTIONS
NOTE: Unpack and dispose of packaging materials.
1. Remove the center support and weatherboard,
if still installed
in the wall sleeve.
2. Screw a threaded metal stud into each of the holes at the
4 corners of the louver.
3. Grasp the louver at the vertical supports. Position it with the
condensate
drain knockouts facing down. From the inside of
the building, maneuver the louver through the wall sleeve.
Pull it toward you until the threaded studs are inserted into
the 4 holes of the wall sleeve.
4.
5.
!. Architectural louver
4. Interior side of wall sleeve
2. Condensate drain knockouts
5. Washer
3. Threaded stud
6. Nut
While holding the louver with one hand, place the washer and
start the nut on one of the studs. Tighten the nut.
Repeat with the remaining 3 studs.
13
