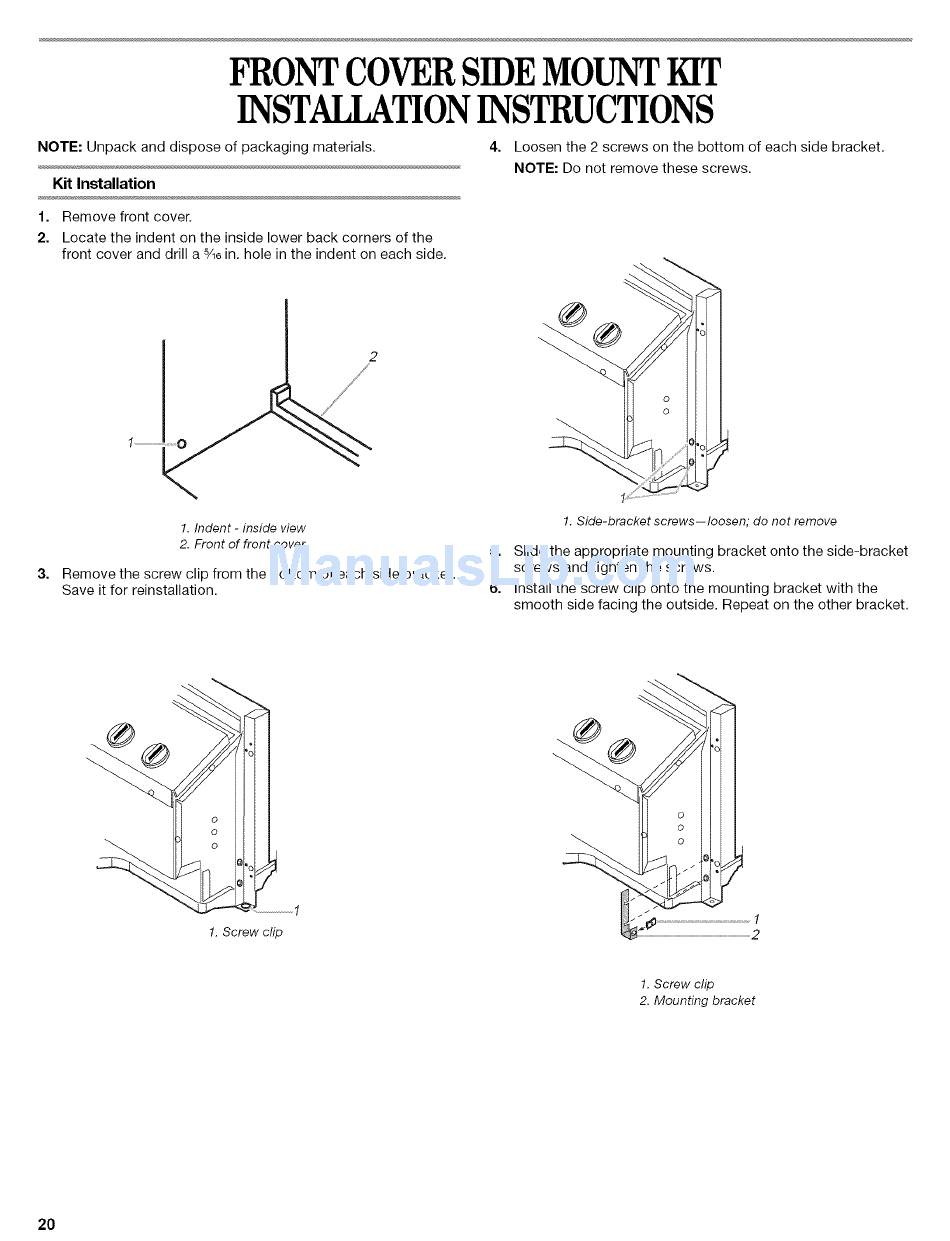

FRONT COVERSIDE MOUNTKIT
INSTAHATION INSTRUCTIONS
NOTE: Unpack and dispose of packaging materials.
Kit Installation
1. Remove front cover.
2. Locate the indent on the inside lower back corners of the
front cover and drill a %6 in. hole in the indent on each side.
4. Loosen the 2 screws on the bottom of each side bracket.
NOTE: Do not remove these screws.
3,
1. Indent - inside view
2. Front of front cover
Remove the screw clip from the bottom of each side bracket.
Save it for reinstallation.
!. Side-bracket screws--loosen; do not remove
5. Slide the appropriate mounting bracket onto the side-bracket
screws and tighten the screws.
6. Install the screw clip onto the mounting bracket with the
smooth side facing the outside. Repeat on the other bracket.
1
1. Screw clip
!. Screw clip
2. Mounting bracket
