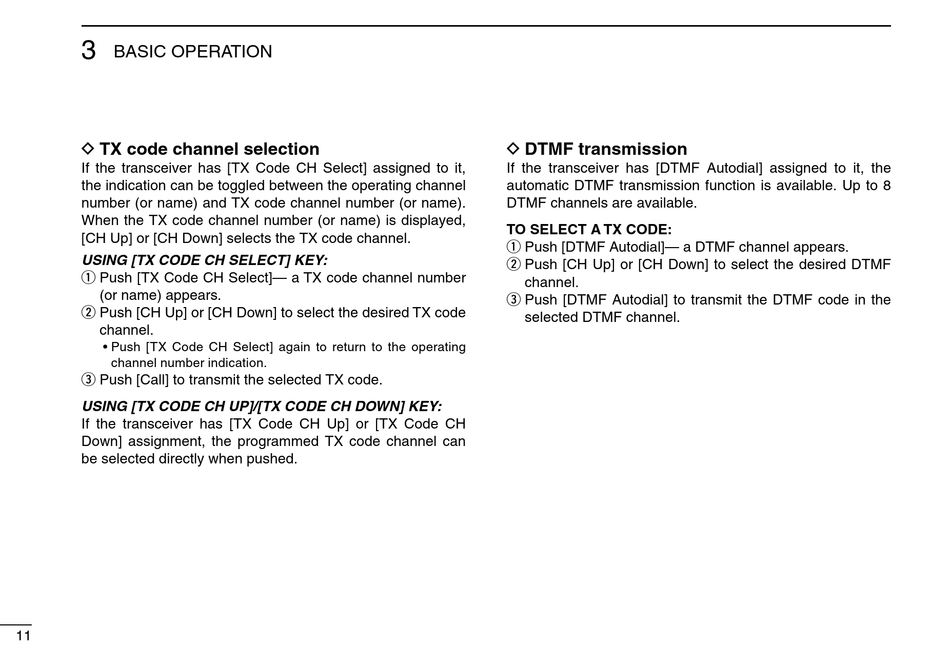

D Tx Code Channel Selection; D Dtmf Transmission - Icom IC-F3030 Series Insrtuction Manual

3
BASIC OPERATION
D TX code channel selection
If the transceiver has [TX Code CH Select] assigned to it,
the indication can be toggled between the operating channel
number (or name) and TX code channel number (or name).
When the TX code channel number (or name) is displayed,
[CH Up] or [CH Down] selects the TX code channel.
USING [TX CODE CH SELECT] KEY:
Push [TX Code CH Select]— a TX code channel number
q
(or name) appears.
w Push [CH Up] or [CH Down] to select the desired TX code
channel.
• Push [TX Code CH Select] again to return to the operating
channel number indication.
Push [Call] to transmit the selected TX code.
e
USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:
If the transceiver has [TX Code CH Up] or [TX Code CH
Down] assignment, the programmed TX code channel can
be selected directly when pushed.
11
D DTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
Push [DTMF Autodial]— a DTMF channel appears.
q
w Push [CH Up] or [CH Down] to select the desired DTMF
channel.
Push [DTMF Autodial] to transmit the DTMF code in the
e
selected DTMF channel.
