® U.S. Registered Trademark
Copyright © 1996 Honeywell Inc. • All Rights Reserved

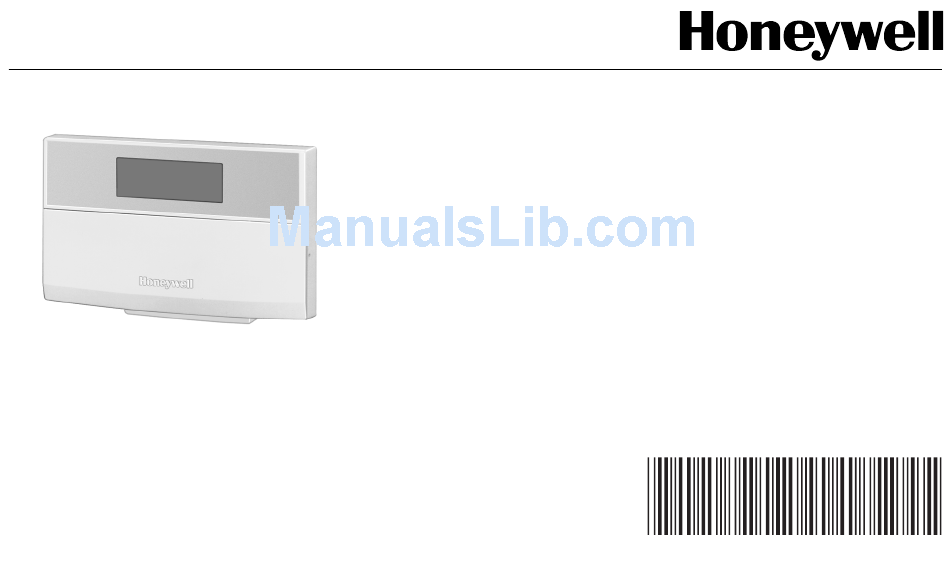

Series 2000 Commercial
Microelectronic Thermostat
Features .................................................................. 3
Programming ........................................................... 4
Troubleshooting ...................................................... 18
1
Contents
63-4356-1
63-4356—1

Advertisement

Table of Contents

   Related Manuals for Honeywell Series 2000

   Summary of Contents for Honeywell Series 2000

  • Page 1 Series 2000 Commercial Microelectronic Thermostat Contents Features ..............3 Programming ............4 Troubleshooting ............18 ® U.S. Registered Trademark 63-4356-1 63-4356—1 Copyright © 1996 Honeywell Inc. • All Rights Reserved...
  • Page 2 ENTER UNOCCUPIED SET OCCUPIED PROGRAM MODE SET UNOCCUPIED TEMPERATURE ENTER OCCUPIED TEMPERATURE SETPOINTS SET CURRENT DAY OR PROGRAM MODE SETPOINTS PROGRAM DAY Room Occupied System Heat Auto RETURNS TO NORMAL OPERATIONS INCREASE TEMPERATURE Set Program Set Temperature Change OR TIME SETTING Time/Temp Occupied Unoccupied...
  • Page 3 FEATURES • Program up to two Occupied and two Unoccupied time periods for each daily schedule. • Set different schedules for each day of the week. • Temporary temperature overrides. • Program copy key. 63-4356—1...
  • Page 4 PROGRAMMING key provides quick temporary temperature changes The keyboard is located behind the thermostat for increased occupant comfort. The Continuous cover. Sixteen keys are used to set, review and Unoccupied key provides energy efficient operation modify programmed times and temperature settings. for extend periods of time.
  • Page 5 Occupied Unoccupied Occupied Unoccupied Period 1 Period 1 Period 2 Period 2 Monday Tuesday Wednesday Thursday Friday Saturday Sunday 63-4356—1...
  • Page 6: Setting Current Day And Time

    The program has four temperature settings, Occupied Setting Current Day and Time and Unoccupied heat and cool. The thermostat will Press Set Current Day/Time. operate at the Unoccupied temperature setting unless the thermostat is programmed. The following NOTE: On initial power up or after an chart shows the default temperature settings.
  • Page 7 Press Day until the current day is displayed. Press Run Program. NOTE: Sun = Sunday, Mon = Monday, Tue = Program Room Tuesday, Wed = Wednesday, Thu = Set Program Set Temperature Change Time/Temp Occupied Unoccupied Occupied Unoccupied Program Start Time Start Time Temp Temp...
  • Page 8 Press Day until the desired day is displayed. Press Occupied Start Time a second time to set a second Occupied Start Time. ProgramStart Time ProgramStart Time Occupied Set Program Set Temperature Change Time/Temp Occupied Unoccupied Occupied Unoccupied Program Start Time Start Time Temp Temp...
  • Page 9: Copying A Day

    Press increase or decrease key until the Press increase or decrease key until the desired start time is displayed. desired start time is displayed. ProgramStart Time ProgramStart Time Set Program Set Temperature Change Set Program Set Temperature Change Time/Temp Time/Temp Occupied Unoccupied Occupied...
  • Page 10 Press Day to select the day to be copied if Press Day until the day to be copied to is different from the day displayed. displayed. Set Program Start Time Set Program Set Temperature Change Set Program Set Temperature Change Time/Temp Time/Temp Occupied...
  • Page 11 Repeat steps through for all the days Press Occupied Temp. desired. Set Program Setting Occupied Press Run Program. Temp Set Program Set Temperature Change Time/Temp Occupied Unoccupied Occupied Unoccupied Heat Program Start Time Start Time Temp Temp Occupied Temporary Set Current Clear Heat/Cool Occupied...
  • Page 12 Press Heat/Cool Settings to change between Press Unoccupied Temp. heat and cool settings. Set Program Setting Unoccupied Set Program Setting Set Program Set Temperature Change Temp Time/Temp Heat/Cool Occupied Unoccupied Occupied Unoccupied Program Start Time Start Time Temp Temp Heat Temporary Set Current Clear...
  • Page 13 Press Heat/Cool Settings to change between Clearing Program Start Times heat and cool settings. Press Occupied Start Time or Unoccupied Start Time until the start time to be cleared is Set Program Setting Heat/Cool displayed. Settings Set Program Set Temperature Change Time/Temp Occupied...
  • Page 14 Press Clear Start Time. Temporary Occupied Override Setting Temperature Offset Set Program Start Time Clear for Temporary Override Start Time Set Program Set Temperature Change Time/Temp Occupied Unoccupied Occupied Unoccupied Program Start Time Start Time Temp Temp Occupied 1 Temporary Set Current Clear Heat/Cool...
  • Page 15 Press increase or decrease key until the Using Temporary Override desired temperature offset is displayed (range Press Temporary Occupied. is 0° to 5°F). NOTE: The default temperature setting is the Occupied setpoint. Set Program Set Temperature Change Time/Temp Occupied Unoccupied Occupied Unoccupied Program...
  • Page 16 NOTE: If the offset is zero, the default Using Continuous Unoccupied setting changes in one degree incre- Press Continuous Unoccupied. ments. If the offset is 1 through 5, the default setting changes by plus or NOTE: The default temperature setting is the minus the offset.
  • Page 17 Press Heat/Cool Setpoint to change between NOTE: If appear under the tempera- heat and cool settings. Use increase ture display, it means that both the decrease key to adjust temperature settings. heating and cooling setpoints are being adjusted. Tapping the key will change Press Run Program again to cancel the Hold both the heat and cool setpoints by and to return to the program.
  • Page 18: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Action Display will not come on. • Check if the circuit breaker is tripped—reset the circuit breaker. • Check if the fuse is blown—replace the fuse. • Check if the system switch at the equipment is in the Off position— set to the On position.
  • Page 19 TROUBLESHOOTING GUIDE (Continued) Symptom Action Cooling will not come on. • Check if the circuit breaker is tripped—reset the circuit breaker. • Check if the fuse is blown—replace the fuse. • Check if the system switch at the equipment is in the Off position— set to On position.
  • Page 20 Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitée 35 Dynamic Drive 1985 Douglas Drive North Golden Valley, MN 55422-4386 Scarborough, Ontario M1V 4Z9 63-4356—1 J.H. Rev. 12-96 www.honeywell.com/buliding/components 63-4356—1...
