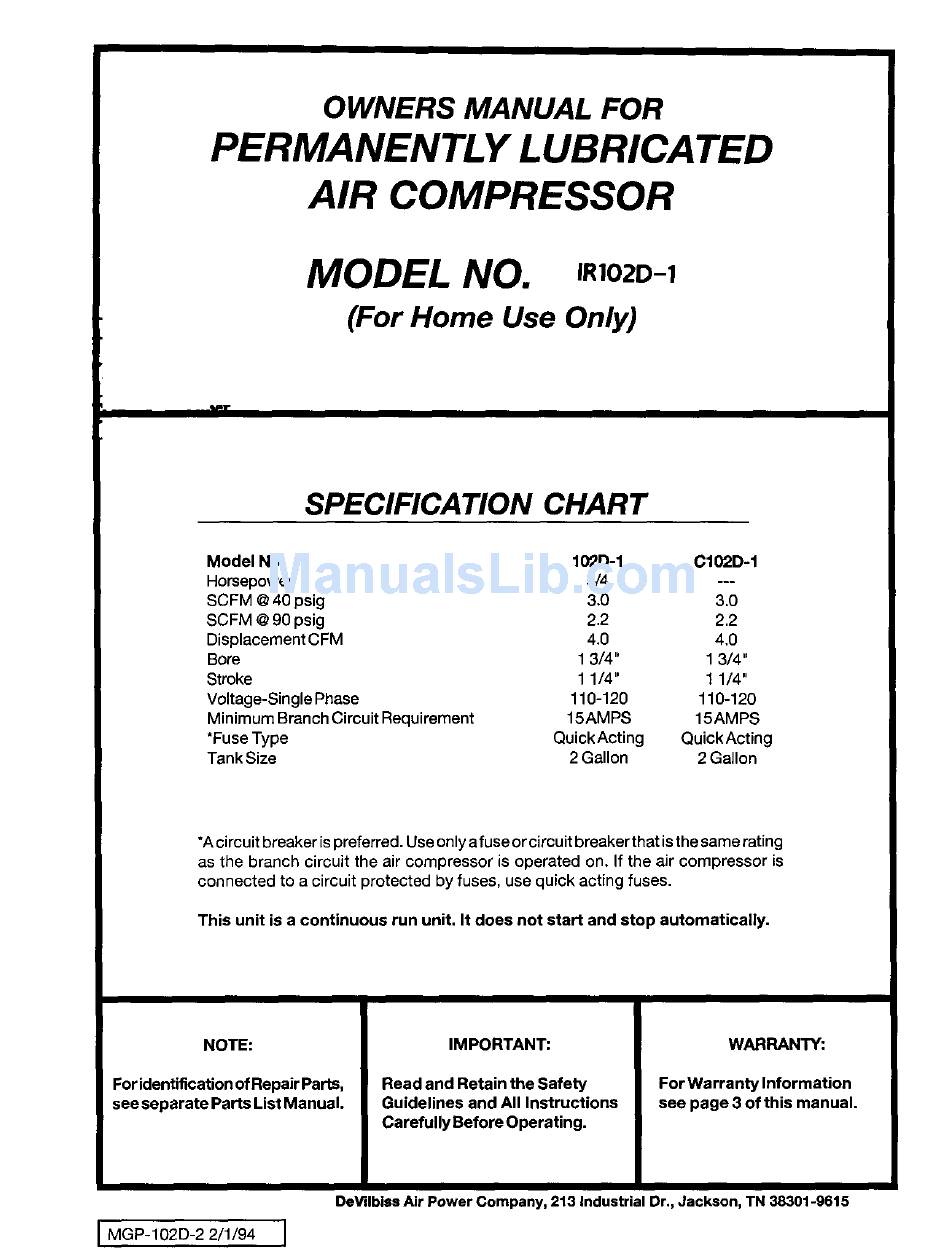

OWNERS MANUAL FOR
PERMANENTLY
LUBRICATED
AIR COMPRESSOR
MODEL NO.
,RlO2D-1
(For Home Use Only)
tl'r
SPECIFICATION CHART
Model No.
102D-1
C10'2D-1
Horsepower
3/4
---
SCFM @40 psig
3.0
3.0
SCFM @ 90 psig
2,2
2,2
Displacement CFM
4.0
4.0
Bore
1 3/4"
1 3/4"
Stroke
1 1/4"
1 1/4"
Voltage-Single Phase
110-120
110-120
Minimum Branch Circuit Requirement
15AMPS
15AMPS
*Fuse Type
QuickActing
QuickActing
Tank Size
2 Gallon
2 Gallon
*A circuitbreaker ispreferred. Useonly a fuse or circuit breaker that is the same rating
as the branch circuit the air compressor is operated on. If the air compressor is
connected to a circuit protected by fuses, use quick acting fuses.
This unit is a continuous run unit. It does not start and stop automatically.
NOTE:
For identificationofRepair Parts,
see separate Parts List Manual.
IMPORTANT:
Read and Retain the Safety
Guidelines and All Instructions
Carefully Before Operating.
WARRANTY:
For Warranty Information
see page 3 of this manual.
I MGP-102D-2 2/1/94
I
DeVilbiss Air Power Company, 213 Industrial Dr., Jackson, TN 38301-9615
