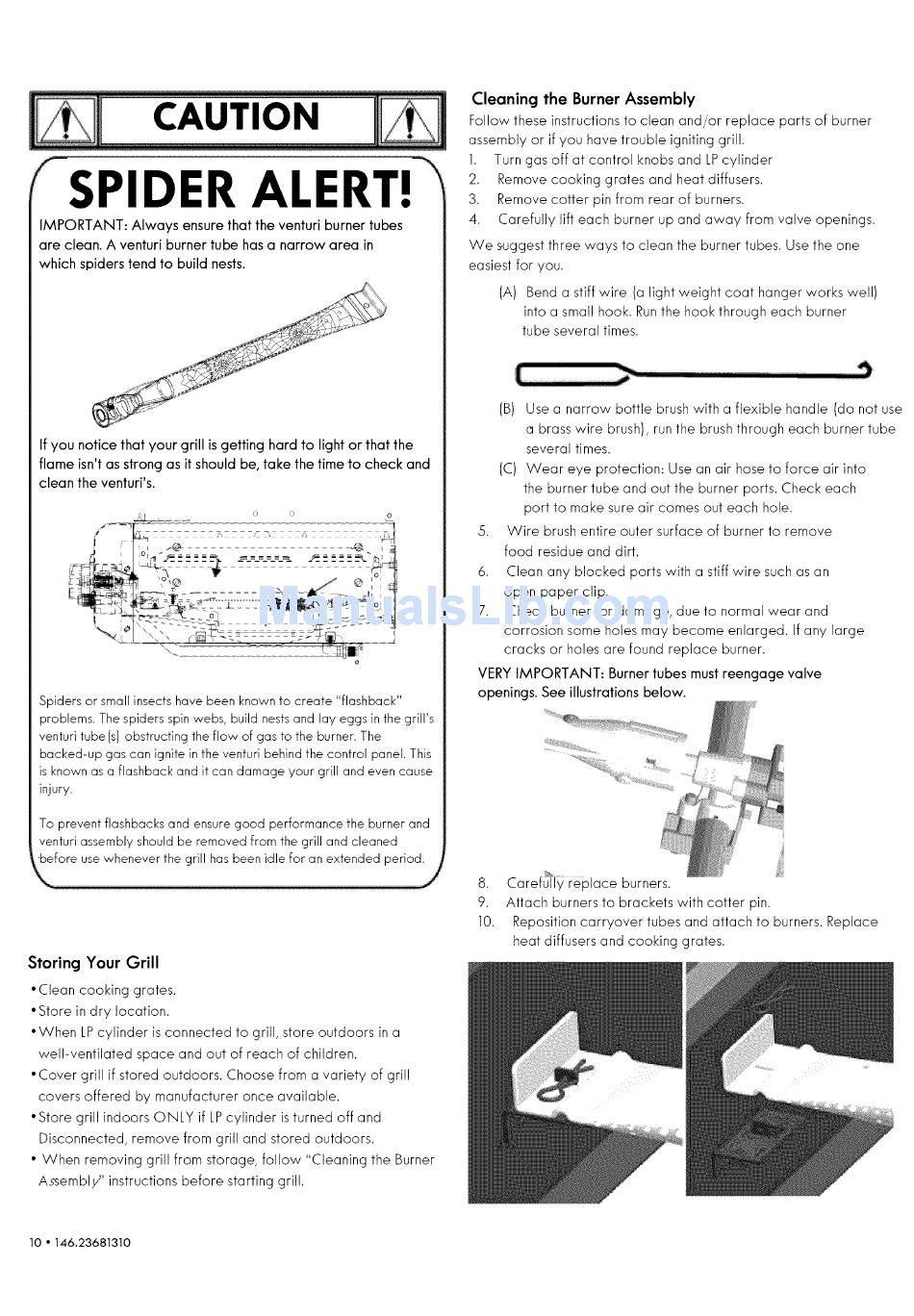

CAUTION
SPIDER ALERT!
IMPORTANT:
Always
ensure that the venturi burner tubes
are clean. A venturi
burner tube has a narrow
area in
which spiders tend to build nests.
If you notice that your grill is getting
hard to light or that the
flame isn't as strong
as it should
be, take the time to check and
clean the venturi's.
;
.
o
o
o
ol
/
,..........
"\-_L
Spiders or small insects have been known to create "flashback"
problems. The spiders spin webs, build nests and lay eggs in the grill's
venturi tube(s) obstructing the flow of gas to the burner. The
backed-up gas can ignite in the venturi behind the control panel. This
is known as a flashback and it can damage your grill and even cause
injury.
To prevent flashbacksand ensuregood performance the burner and
venturi assembly shouldbe removed from the grill and cleaned
• before usewhenever the grill has been idle for an extended period.
_'_
....................................................................................................................................................................................
rj _
Storing
Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a
well-ventilated
space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer once available.
• Store grill indoors ONLY if LPcylinder is turned off and
Disconnected, remove from grill and stored outdoors.
• When removing grill from storage, follow "Cleaning the Burner
Assembli'
instructions before starting grill.
Cleaning
the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LPcylinder
2.
Remove cooking grates and heat diffusers.
3.
Remove cotter pin from rear of burners.
4.
Carefully lift each burner up and away from valve openings.
We s.uggestthree ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Runthe hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not use
a brass wire brush), run the brush through each burner tube
several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
5.
Wire brush entire outer surface of burner to remove
food residue and dirt.
6.
Clean any blocked ports with a stiff wire such as an
open paper clip.
7.
Check burner for damage, due to normal wear and
corrosion some holes may become enlarged. If any large
cracks or holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations below.
8.
Carefully replace burners.
9.
Attach burners to brackets with cotter pin.
10.
Reposition carryover tubes and attach to burners. Replace
heat diffusers and cooking grates.
10 ° 146.23681310
