A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS

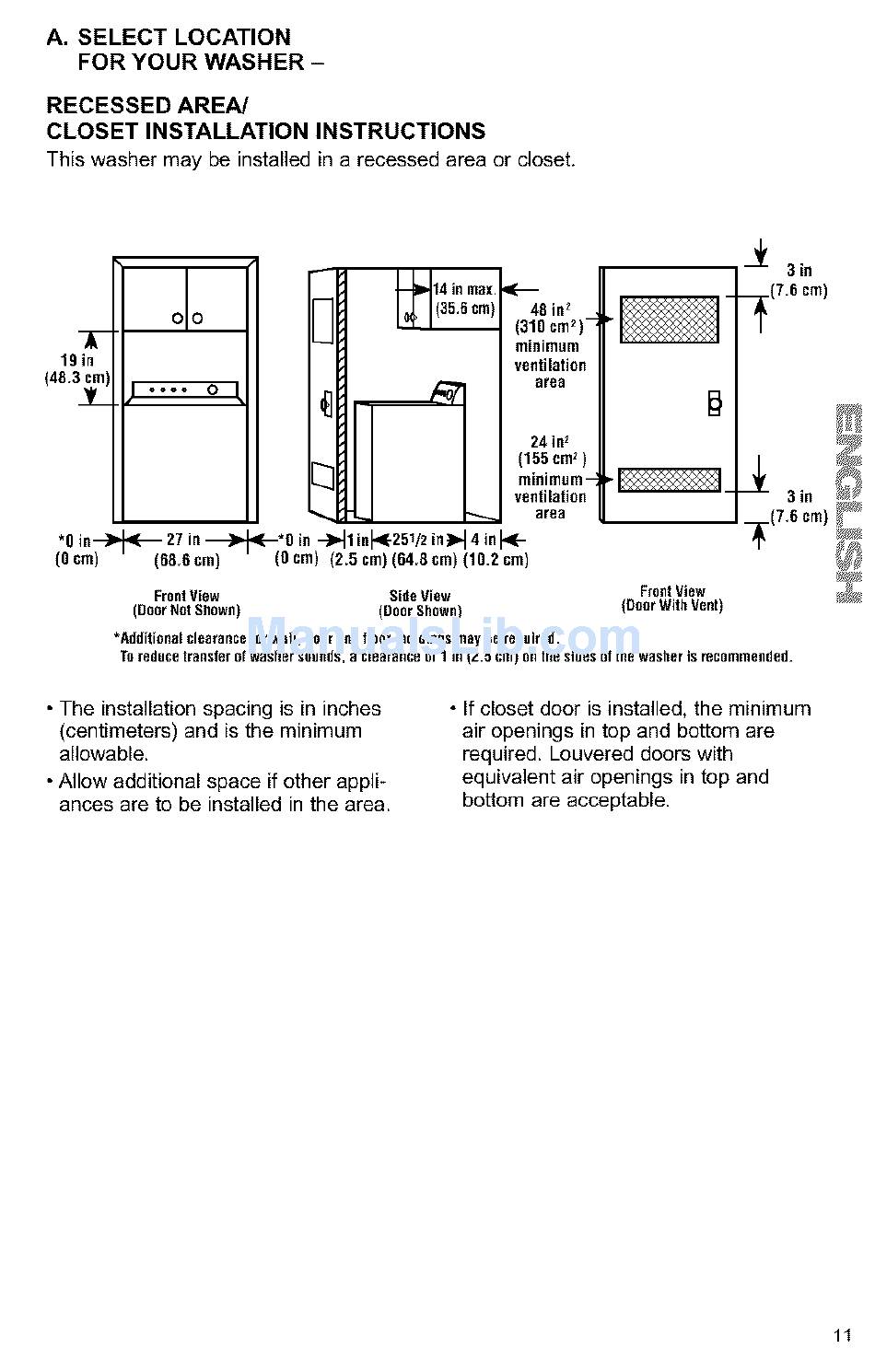

This washer may be installed in a recessed area or closet.
19 in
(48.3 _m)
*0 in-_= _27in_
(0 cm) (686 cm)
_--*0 in -_1 inJ<F251/2 in _ 4 in
(0 cm) (2.5 cm) (648 cm) (10.2 cm)
r
48 in 2
(310cm2) -
minimum
ventilation
area
24 in2
(155 cm_)
minimum-
ventilation
area
3 in
_(7.6 cm)
FrontView Side View Front View
(Door NotShown) (Door Shown) (Door With Vent)
*Additionalclearance tot wall, doorandfloor moldingsmay he required.
TOreducetransfer ofwashersounds,a clearanceofI in (2.5 cm) on the sides otthe washeris recommended.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other appli-
ances are to be installed in the area.
• If closet door is installed, the minimum
air openings in top and bottom are
required. Leuvered doors with
equivalent air openings in top and
bottom are acceptable.
