Externe Handumgehungseinheit
für USV PROTECT C.6000R
External Bypass Unit
for UPS PROTECT C.6000R
Typ / Type
MBS 6000
AEG Power Solutions GmbH
Änderung / Revision 01 / Schenuit/ Schneider
Datum / Date
09.07.2009
Operating instructions
8000019069 BAL, en

Advertisement

   Summary of Contents for AEG MBS 6000

  • Page 1

    Externe Handumgehungseinheit für USV PROTECT C.6000R External Bypass Unit for UPS PROTECT C.6000R Typ / Type MBS 6000 AEG Power Solutions GmbH Änderung / Revision 01 / Schenuit/ Schneider Datum / Date 09.07.2009 Operating instructions 8000019069 BAL, en...

  • Page 2

    As well as solely bypass operation, an additional switch setting permits UPS test operation. Separately fused non-heating appliance connectors make it possible for the loads to be supplied directly from the MBS 6000. LEDs with various colours clearly signal which operating status has been selected.

  • Page 3

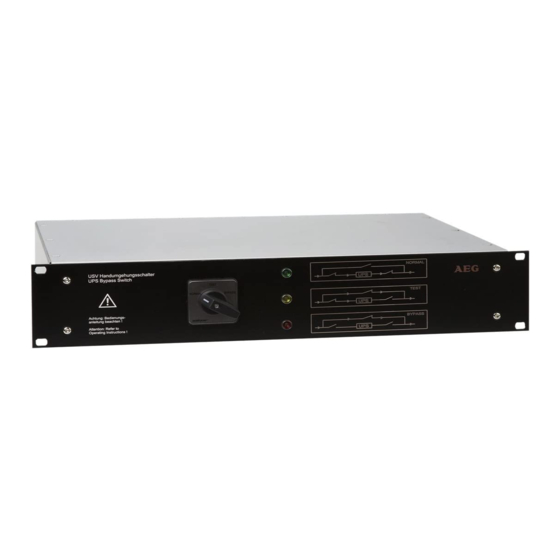

    Description USV Handumgehungsschalter UPS Bypass Switch NORMAL Test Test Normal Normal Bypass Bypass SERVICE Achtung: Bedienungs- anleitung beachten! Attention: Refer to operation instructions BYPASS The external bypass is used for changing over between "NORMAL" operation (default switch position), i.e. secure load supply with UPS back-up. "TEST"...

  • Page 4

    Fuse Fuse 250V/10A 250V/10A Rear view of MBS 6000 Connect the input of the external bypass to the mains connection cable provided with the UPS and plug the mains connector into a suitable shockproof socket. In particular for types with high power ratings, make sure that the fuse in your sub-distribution system is sufficiently large.

  • Page 5

    Wiring diagrams...

  • Page 6

    Guarantee Certificate Type: …….……………….…............Serial no.: ………….…..…………….......... Date of purchase: ……………………...………………..Dealer stamp / Signature Errors and changes excepted. Emil-Siepmann-Straße 32 59581 Warstein - Belecke Germany Tel.: +49 (0) 180 523 4787 Fax: +49 (0) 180 523 4789 www.aegpartnernet.com Operating instructions 8000019069_01 BAL, en...
