Figure 1-3. Connecting Ide, Video, And Floppy/Parallel Cables - Ampro CoreModule 420 Quick Start Manual

Chapter 1
1) Connect IDE cable
2) Connect Floppy/Parallel
cable
3) Connect Floppy-to-Parallel
adapter cable
4) Connect Video cable (CRT)
Video
Connector
Pin 1
4
Skip any steps that do not apply to your situation.
The IDE cable and its adapter are connected to the IDE connector (J6).
See Figures 1-1, 1-2, and 1-3.
The floppy/parallel cable is connected to the Floppy/Parallel port (J4).
See Figures 1-1, 1-2, and 1-3.
The Floppy-to-Parallel adapter cable is connected to the cable
connected to the Floppy/Parallel port (J4). See Figures 1-3, and 1-4.
NOTE
The video cable (CRT) is connected to the Video connector (J11).
See Figures 1-1, 1-2, and 1-3.
IDE Connector

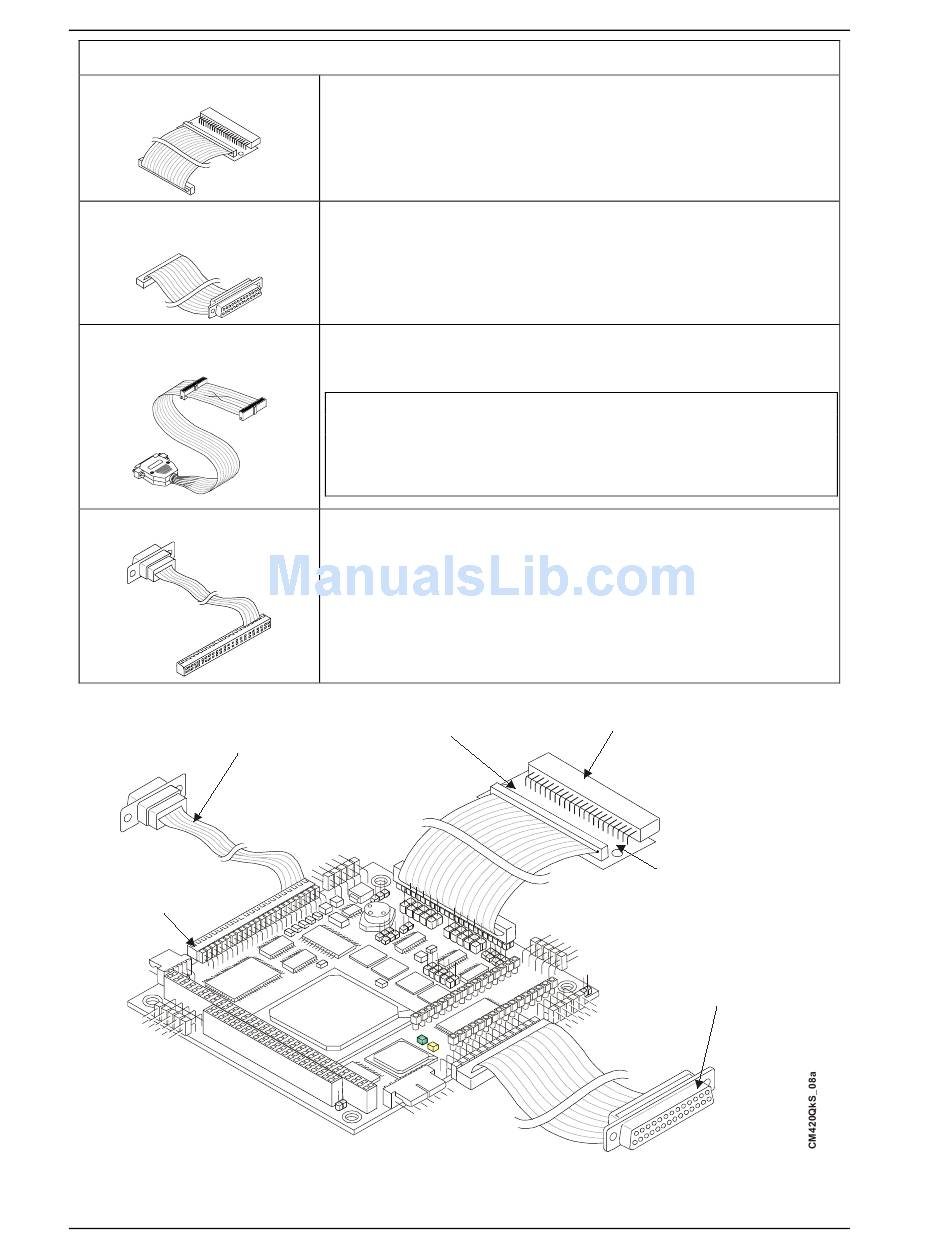

Figure 1-3. Connecting IDE, Video, and Floppy/Parallel Cables

QuickStart Guide
The Floppy-to-Parallel adapter cable is only required
when using the floppy disk drive to access floppy
diskettes. To use the parallel port for printer output,
disconnect the Floppy-to-Parallel adapter cable and
connect directly to the printer's cable.
Pin Adapter
(2mm to .1 inch)
Setting Up the CoreModule 420
(Shown with only
one connector for
simplicity)
Floppy/Parallel Port
Connector
CoreModule 420
