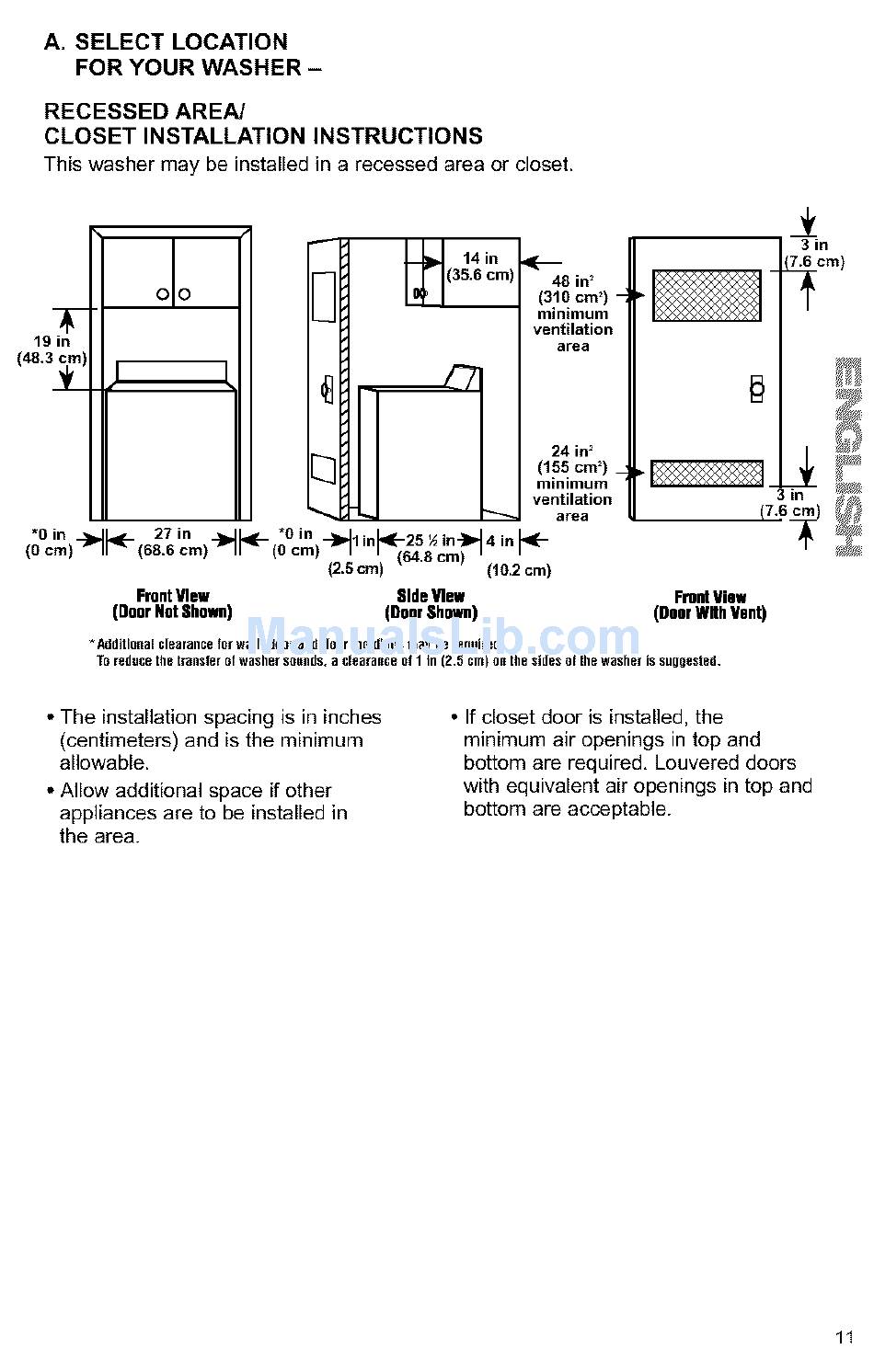

A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA]
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
oo -
%-
19 in
*0in ___ 27in __ *0in __ . ___ ,:_,_l,n 251_m 4in" _--
(0 cm) (68.6 cm) (0 cm) 8 c
(2.5cm) " " (102cm)
Front V iew Side View
(Door N otShown) (Door S hown)
48 in _
(310 cm _) -
minimum
ventilation
area
24 in 2
(155 cm _) _
minimum
ventilation
area
3in
cm)
in
Front View
(Door W Hh Vent)
* Additional clearance for wall, door and lloor moldings may be required.
To reduce the tr_nsler of washer sounds, a clearance ol I tn (2.5 cm} on the sides ol lhe w_sher is suggested.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required, Louvered doors
with equivalent air openings in top and
bottom are acceptable.
