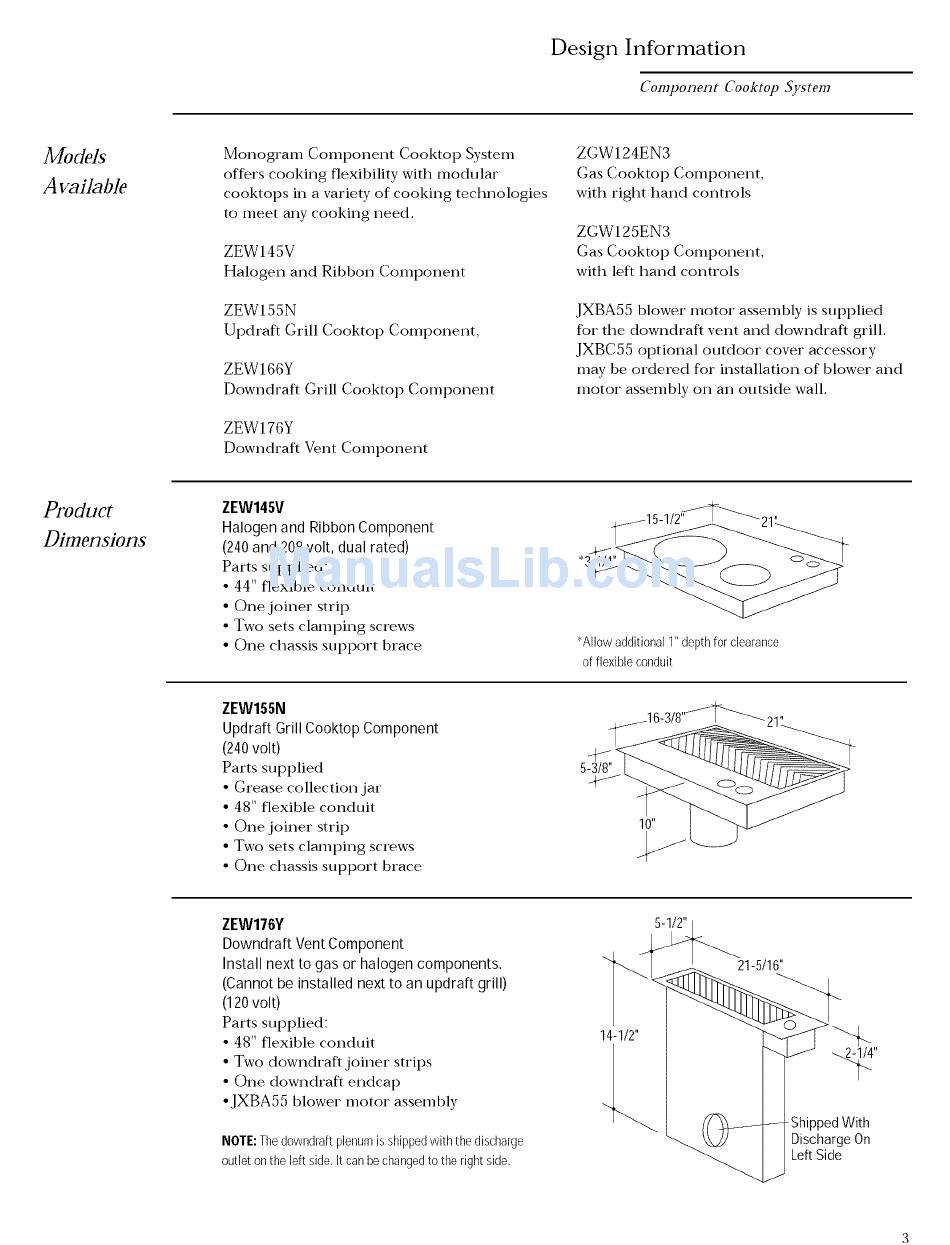

Design Information
Component Cooktop _vstem
Models
Available
Monogram Component Cooktop System
offers cooking flexibility with modular
cooktops in a variety of cooking technologies
to meet any cooking need.
ZEW145V
Halogen and Ribbon Component
ZEW155N
Updraft Grill Cooktop Component,
ZEW166Y
Downdraft Grill Cooktop Component
ZEW176Y
Downdraft Vent Component
ZGW124EN3
Gas Cooktop Component,
with right hand controls
ZGW125EN3
Gas Cooktop Component,
with left hand controls
JXBA55 blower motor assembly is supplied
for the downdraft vent and downdraft grill.
JXBC55
optional outdoor cover accessory
may be ordered for installation of blower and
motor assembly on an outside wall.
Product
Dimensions
ZEW145V
Halogen and Ribbon Component
(240and 208 volt, dual rated)
Parts suf)plied:
• 44" flexible conduit
• Onejoiner strip
• Two sets clamping screws
• One chassis support brace
*Allow additional 1
rl
depth for clearance
of flexible conduit
ZEW155N
Updraft Grill Cooktop Component
(240volt)
Parts suf)plied
• Grease collection jar
• 48" flexible conduit
• Onejoiner strip
• Two sets clamping screws
• One chassis support brace
5-3/8"
ZEW176Y
Downdraft Vent Component
Install next to gas or halogen components.
(Cannot be installed next to an updraft grill)
(120volt)
Parts supplied:
• 48" flexible conduit
• Two downdraft joiner strips
• One downdraft endcap
• JXBA55 blower motor assembly
NOTE: The downdraft plenum is shippedwith the discharge
outlet on the left side, It can be changed to the right side,
21-5/16"
-Shipped With
Discharge On
Left Side
