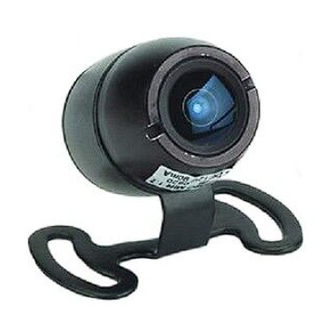

WATERPROOF CAMERA
FEATURE
1. Super wide angle(180 degree)
2. Waterproof camera for long-term outdoor usage
3. The hidden camera is designed for car rear view system
4.Smaller size design for more convenient installation
Image Device
1/4" V-MT9V011+VC0702D SENSOR CMOS
TV System
PAL
Effective Pixels
Sensing Area
Sync. System
Horizontal Resolution
Minimum Illumination
Video Output
AGC
S/N Ratio
White Balance
Electronic Shutter
1/50Sec-12.5µSec (PAL) / 1/60Sec-12µSec (NTSC)
BLC
Current Consumption
Power Supply
Operating Temperature
Storage Temperature
Lens Angle
Gamma Consumption
NTSC
640*480 pixels
3.58mm（H）*2.69mm（V）
Internal
420TV Lines
0.3 Lux
1.0Vp-p, 75Ohm
Auto
Better than 48dB
Auto
Auto
Max. 90mA
DC12V
–20℃ ~ 60℃, RH95%MAX
–40℃ ~ 80℃, RH95%MAX
180°
0.45
