Part # SV-5600 PC-F Full Frame Type (Black or Chrome)

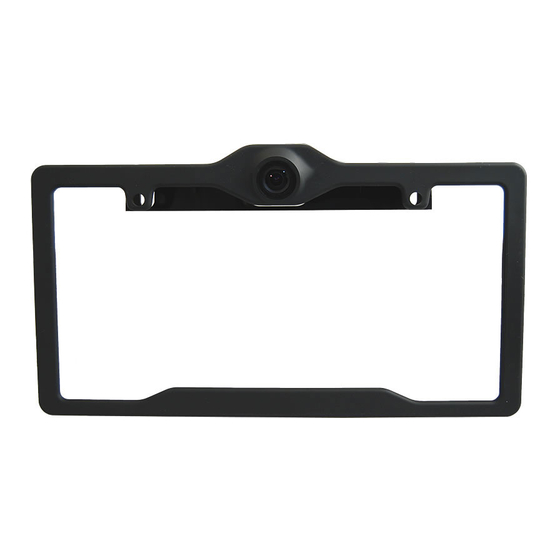

Part # SV-5500 PC-B Top Bar Type (Black or Chrome)
Part # SV-"PK" Kits with PlateCam and 3.5" LCD monitor
FEATURES:
Revolutionary patented design integrates a Color rear vision camera with your rear
license plate
Enhance the look of your Car, SUV, Truck or Van.
The 130 ultra wide-angle CCD color camera provides rear images in real time and
eliminates the dangerous "blind-spot" directly behind your vehicle when backing.
Works day or night, on most vehicles.
Simple installation: No major tools required. Video monitor required, not included.
The plate cam easily connects with other SecurView products including the SV-8000 2.5
in LCD rear view mirror monitor, 3.5" mini monitor or your existing LCD/TFT displays.
The PlateCam™ is designed for vehicles in which the license plate location is centered
and above the level of the rear bumper. The PlateCam™ may not perform well on
vehicles with low or offset license plate positions.
INSTALLATION INSTRUCTIONS:
US Patent# 5574443, 6433680, 6441872
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CrimeStopper SV-5500 PC-B
Summary of Contents for CrimeStopper SV-5500 PC-B
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS: Part # SV-5600 PC-F Full Frame Type (Black or Chrome) Part # SV-5500 PC-B Top Bar Type (Black or Chrome) Part # SV-“PK” Kits with PlateCam and 3.5” LCD monitor FEATURES: Revolutionary patented design integrates a Color rear vision camera with your rear license plate Enhance the look of your Car, SUV, Truck or Van. -
Page 2: Parts List
DISCLAIMER: Under no circumstances shall the manufacturer or distributor of the PlateCam™ be held liable for consequential or incidental damages sustained in connection with the use of the PlateCam™ Rear Vision System. The PlateCam™ is designed as a safety enhancement device and is in no way intended as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when backing a vehicle. -
Page 3: Picture Quality
INSTALLATION NOTES (Read First!): MOUNTING: 1. The PlateCam™ Rear Vision System uses a super wide-angle lens for best all around performance. The Camera will display the full width of most parking spaces up to 6 feet or even wider. 2. The PlateCam is designed to work best on vehicles that have a license plate located at the center and above the rear bumper. - Page 4 PLATE MODIFICATION: For best fit, a slight modification of the license plate is needed. Read the disclaimer on Page 2 of these instructions before attempting to modify your plate! Using the template provided: 1. Align the holes in the template with the holes in the license plate. 2.
-
Page 5: Side View
SPACER WASHER INSTALLATION: Some installation may require the use of spacer washers either to space the PlateCam away from bodywork, or to change the cameras point of view. Use the spacer washers as needed, see diagram below. SPACER/WASHER INSTALLATION Camera's viewing angle Mounting... - Page 6 CONNECTIONS: 12 Pin M/F Connectors PLATECAM CONNECTIONS: Video Out to Monitor BLACK = Chassis Ground Plug for Optional SecurView SV-7000 video controller Camera Electronics 4 Pin M/F Connectors WHITE = +12VDC From Reverse Light...
-
Page 7: Specifications
KITS WITH 3.5” LCD MONITOR: SIDE VIEW: SV-8500 3.5" LCD Monitor Installation 3.5" Monitor UNIVERSAL MOUNTING POST Set to desired location Peel Adhesive Backing No Hardware Required SPECIFICATIONS: 1/3 inch CCD sensor Sizes: Full Frame 12.5W x 7”H x 1.8” D Bar: 12.5W x 1.7”H x 1.8”... - Page 8 Phone (800) 998-6880 FAX (805) 581-9500 © 2007 Crimestopper Security Products...
