CrimeStopper SecurView SV-6713 Insruction Manual

SV-6713 INSTRUCTION MANUAL

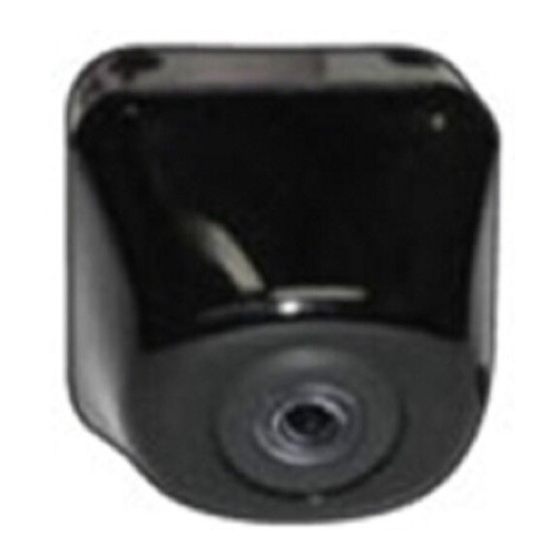

Rear View Color Camera

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER ( OR BACK)
NOT USE A SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
Dimensions

Specification

TV SYSTEM

NO. OF PIXELS
SCANNING FREQUENCY
HORIZONTAL RESOLUTION
SHUTTER SPEED
IMAGE PICK-UP DEVICE
SCANNING SYSTEM
SYNC. SYSTEM
S/N RATIO (AGC off)
MIN. SENSITIVITY
GAMMA CORRECTION
GAIN CONTROL
VIDEO OUTPUT
LENS
POWER SOURCE
POWER CONSUMPTION
OPERATING TEMP.
DIMENSIONS / mm
WEIGHT
All manuals and user guides at all-guides.com
This symbol is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and main tenance instructions in the
literature accompanying the appliance.

Connection

EXTENTION CABLE
RCA Male : Monitor
Video
Black : GND
Red : Battery +
Reverse Lamp
+
1. GND
2. 12V
①②③
3.
VIDEO
CAUTION :Please Use Regulated
Power Supply 12VDC 300mA
SV-6713
NTSC PAL
510 500
H
492 582
V
15.734 Khz 15.625 Khz
H
59.94 Hz 50 Hz
V
380 TV Lines 380 TV Lines
1/60~1/100,000 sec 1/50~1/100,000 sec
1/4" IT COLOR CCD Image Sensor
2:1 Interlaced
Internal
More than 48 dB
0.5 Lux - at F : 2.0 / 30 IRE
0.45 Approx
Automatic
Composite Video 1.0Vp-p/75Ohm
f=1.7mm (155deg)
DC 12V 300mA Regulated Power Supply
Max 2W
-10℃ - +50℃
33(W) X 33(H) X 36(L)
45g

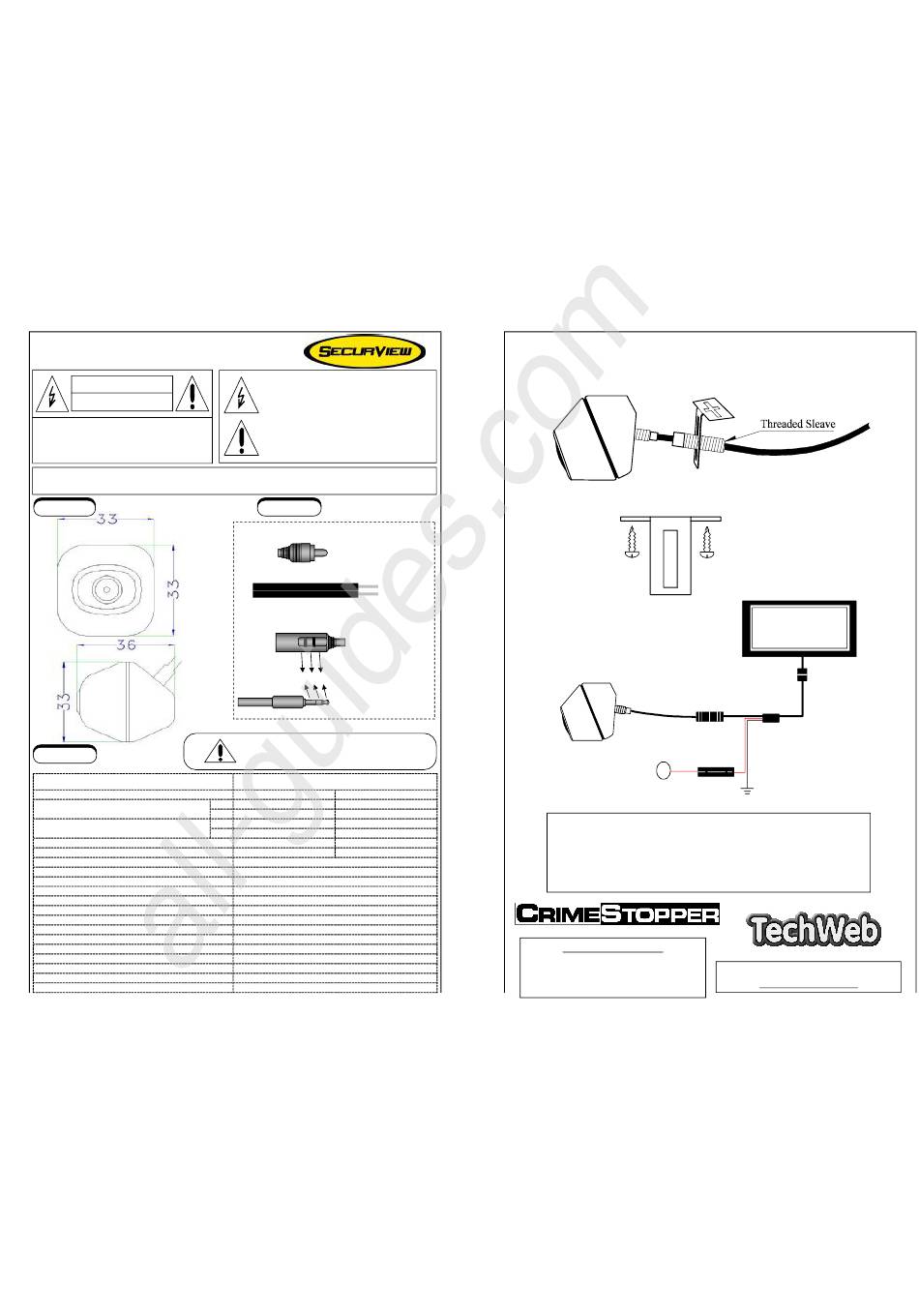

MOUNTING & WIRING DIAGRAM
SV-6713 CCD Camera
Side View
Mounting Bracket
Mounting Bracket
Front View

Mounting

Screw
SV-6713
Mini Jack Connector
Plug
+12V Reverse
Light

WARNING

The SV-6713 Back up camera system is strictly a driver assistant device.
It should not be considered safety device for any purposes. Manufacturer
and distributors of the product do not guarantee or assume liability for
collision or damages that take place when backing up your vehicle.
www.crimestopper.com
Phone: 800-998-6880
Fax: 805-581-9500
© 2008 Crimestopper Security Products
Rear View Monitor
RCA Jack
20ft cable
Fuse
Chassis Ground
ONLINE TECHNICAL SUPPORT
www.crimestopper.com
