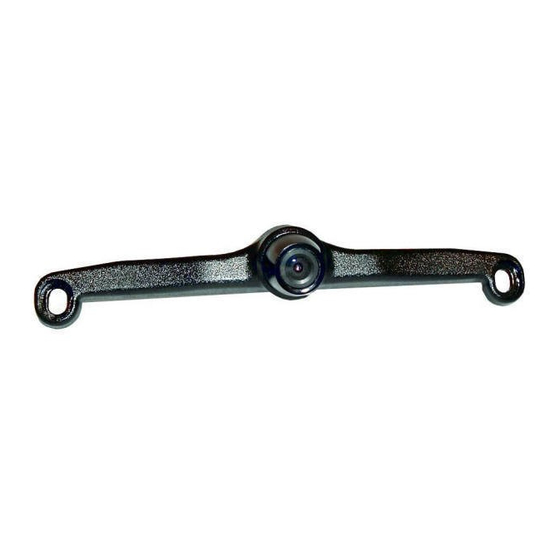

SecurView series License plate bar waterproof back-up cameras are designed to be installed on any
vehicle using the existing license plate mounting holes. It is easy to install with no drilling required,
requiring minimal installation time.
This uniquely designed product can be of use for any passenger car, SUV and Van, also can be of use
for large trucks, school bus, bus or RV and boats as well. Furthermore, it not only can be installed on
the license plate, but also other locations of the vehicle, such as on the sides of cargo trailers, above
the hatch or inside and outside motor home's.
The SV-5110 type is designed for any passenger car, SUV, Van, pickup truck or trailer.
The SV-5120 IR.II is the same as above but includes night vision feature.
SPECIFICATION:
Image Device:
TV System:
Operating Voltage:
Image:
Video Output:
Resolution:
Illumination:
Current Consumption:
Lens:
View Angle:
Water Resistance:
TECHNICAL SUPPORT: (800) 998-6880
INSTALLATION TIPS:
IMPORTANT!!
INSTALLATION INSTRUCTION
SV-5110 License bar color camera
SV-5120 IR.II License bar color camera with IR
OmniVision
CameraChip
NTSC full color
12 V DC
Mirror image or non mirror image (optional)
1.0Vp-p, 750Ohm
380 TV Lines
2Lux/F1.2, 0Lux with Night-vision
Max. 60mA/ 200mA for Night-vision
f=2.8mm/f=2.0
130 degrees
IP68
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CrimeStopper SV-5110
Summary of Contents for CrimeStopper SV-5110
-
Page 1: Installation Instruction
The SV-5110 type is designed for any passenger car, SUV, Van, pickup truck or trailer. The SV-5120 IR.II is the same as above but includes night vision feature. - Page 2 Read this instruction sheet completely and your monitors instructions before beginning the installation. Note: Most License plates do not require modification. However, please look over camera mounting and placement options prior to making modifications to vehicle. Step 1. Remove license plate, if necessary cut or file a ¼ slot above the license plate mounting holes as shown below.
- Page 3 B. Connect the yellow (RCA) socket to video monitor input connection and the black socket to reverse light power wire by using the power wire, if the Rear view monitor does not have auto reverse camera power on feature. When the vehicle is placed in reverse position, the camera is powered on.
- Page 4 Manufacturer and distributors of the product do not guarantee or assume liability for collision or damages that take place when backing up your vehicle. ONLINE TECHNICAL SUPPORT www.crimestopper.com www.crimestopper.com email@crimestopper.com Phone (800) 998-6880 FAX (805) 581-9500 ©...
