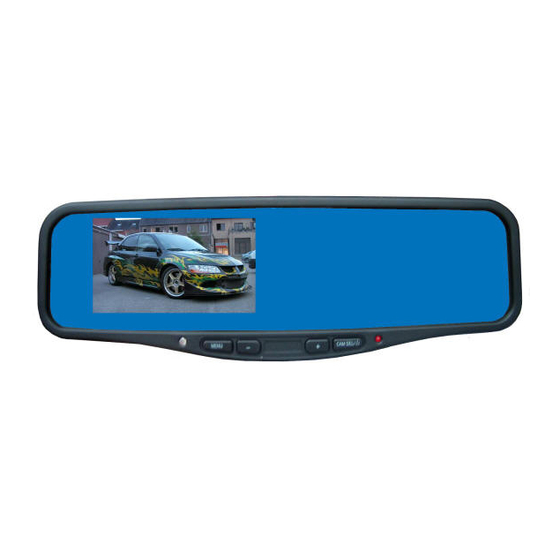

The SV-9155 is a replacement Rear View Mirror. It replaces your factory mirror and adds the
convenience of a 4.2" LCD screen which can be used for a reverse and an external DVD
source. The Reverse Camera Input will automatically switch on when the vehicle is dropped into
reverse. The SV-9155 can be hooked up to any SecurView™ or PlateCam™ camera.
FEATURES:
Replacement Rear View Mirror with Built-In 4.2" LCD Screen for viewing Reverse
Camera
Compatible with any Camera which uses an RCA video output
Provides extra safety precaution when backing-up
Maintains the "Factory" look of the vehicle
Optional Normal Image and Reverse Image
Compatible with 70%-80% of GM, Ford and Toyota vehicles.
Compatible with 12V and 24V DC vehicles
Built-In Interface to allow user to switch between to different video inputs
High-Low voltage and short circuit protection
Reverse camera input will appear on screen whenever vehicle is shifted into reverse
Anti-Glaring treatment on Screen
INSTALLATION INSTRUCTIONS:
SV- 9155
4.2" Replacement
Rear View Mirror
Monitor
Advertisement
Table of Contents
Related Manuals for CrimeStopper SecurView SV-9155
Summary of Contents for CrimeStopper SecurView SV-9155
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS: The SV-9155 is a replacement Rear View Mirror. It replaces your factory mirror and adds the convenience of a 4.2” LCD screen which can be used for a reverse and an external DVD source. The Reverse Camera Input will automatically switch on when the vehicle is dropped into reverse. - Page 2 Make sure the vehicle owner is aware that the SV-9155 does not have any lamps built into it and that they will be losing this accessory once the factory mirror is removed.
- Page 3 Remove Silver Lug Remove Screw BRACKET ADJUSTMENT Adjustable Mounting Bracket Windshield SV-9155 Mirror Mounting Screw NOTE Cable Mounting Bracket of SV-9155 should slide over the factory mounting plate SIDE VIEW on windshield MIRROR MOUNTING...
- Page 4 A loose connection may cause malfunctioning of the unit GREEN +12V Reverse Light VEHICLE REVERSE LIGHT 10' LENGTH CABLE CAM 1 Camera REVERSE CAMERA NOTE VIDEO ADAPTER PLUG Audio Inputs (NOT USED) Camera Power Plug YELLOW RCA Video Output SV-9155 MIRROR...
- Page 5 If your camera does not have this function, then you can choose it in the SV-9155 menu. You can set Normal/Mirror imaging for CAM1 and CAM2 separately. To adjust, Press the “MENU” button and select MIR1 OFF on the screen.
- Page 6 SV-9155 Rear Vision System. The SV-9155 is designed as a safety enhancement device and is in no way intended as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when backing a vehicle.
