System Dimensions

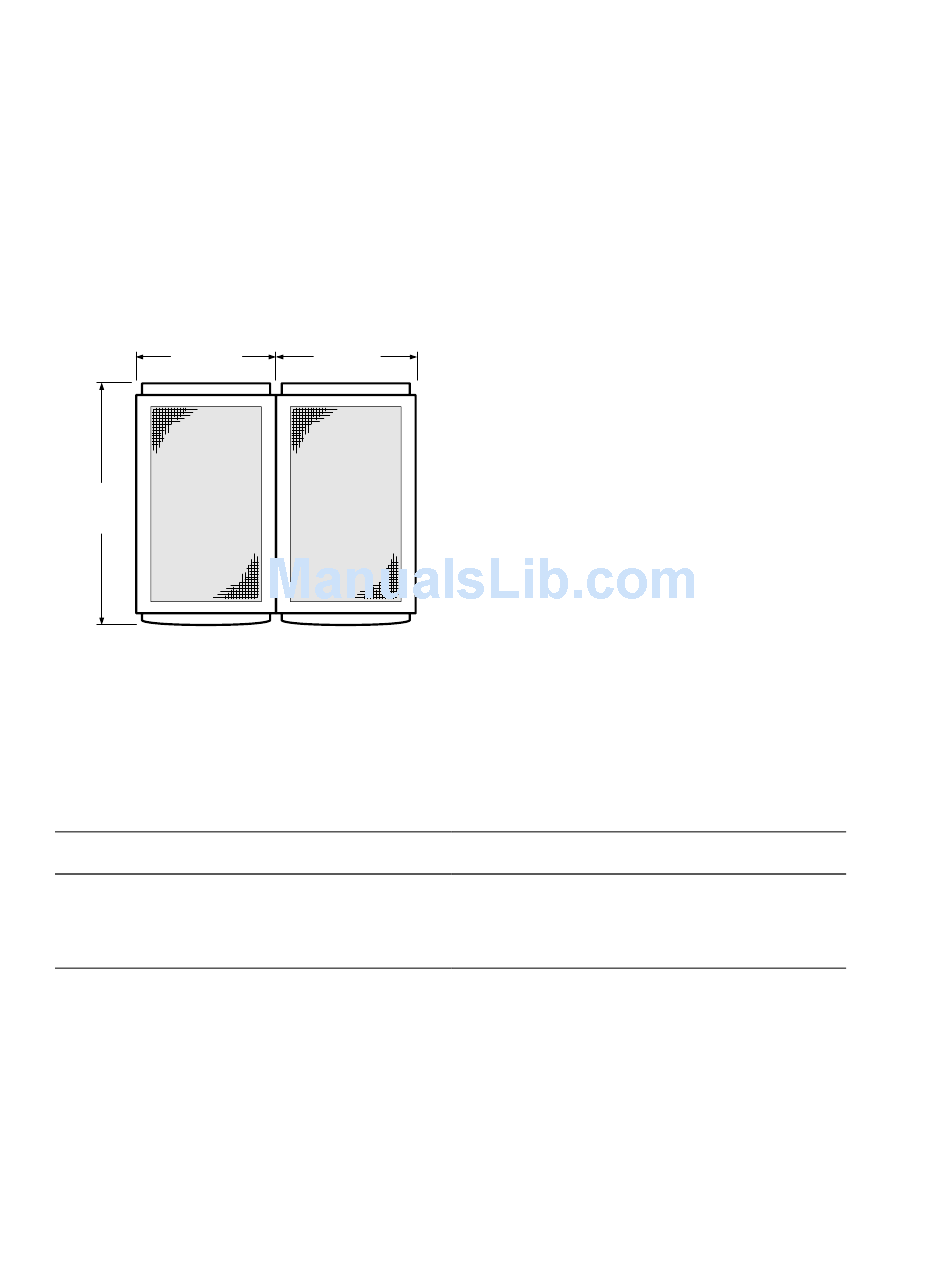

Figure 2–1 shows the dimensions in a bird's-eye view of a system that includes
an expander cabinet alongside the basic system unit.
Figure 2–1 Bird's-Eye View of a GS80 System
60 cm
(23.6 in)
100 cm
(39.4 in)
System
Cabinet
Table 2–1 gives the dimensions of a GS80 system.
Table 2–1 GS80 Dimensions
Cabinet (System or Expander)
Width
Depth
Height
2-2 AlphaServer GS80/160/320 Site Preparation
60 cm
(23.6 in)
Expander
Cabinet
PK2246A
Dimensions
600 mm (23.6 in.)
1,000 mm (39.4 in.)
1,700 mm (66.9 in.)
