Connect the Support Bar to the Cisco Unified

IP Phone

Refer to Figure 3 and the steps that follow.

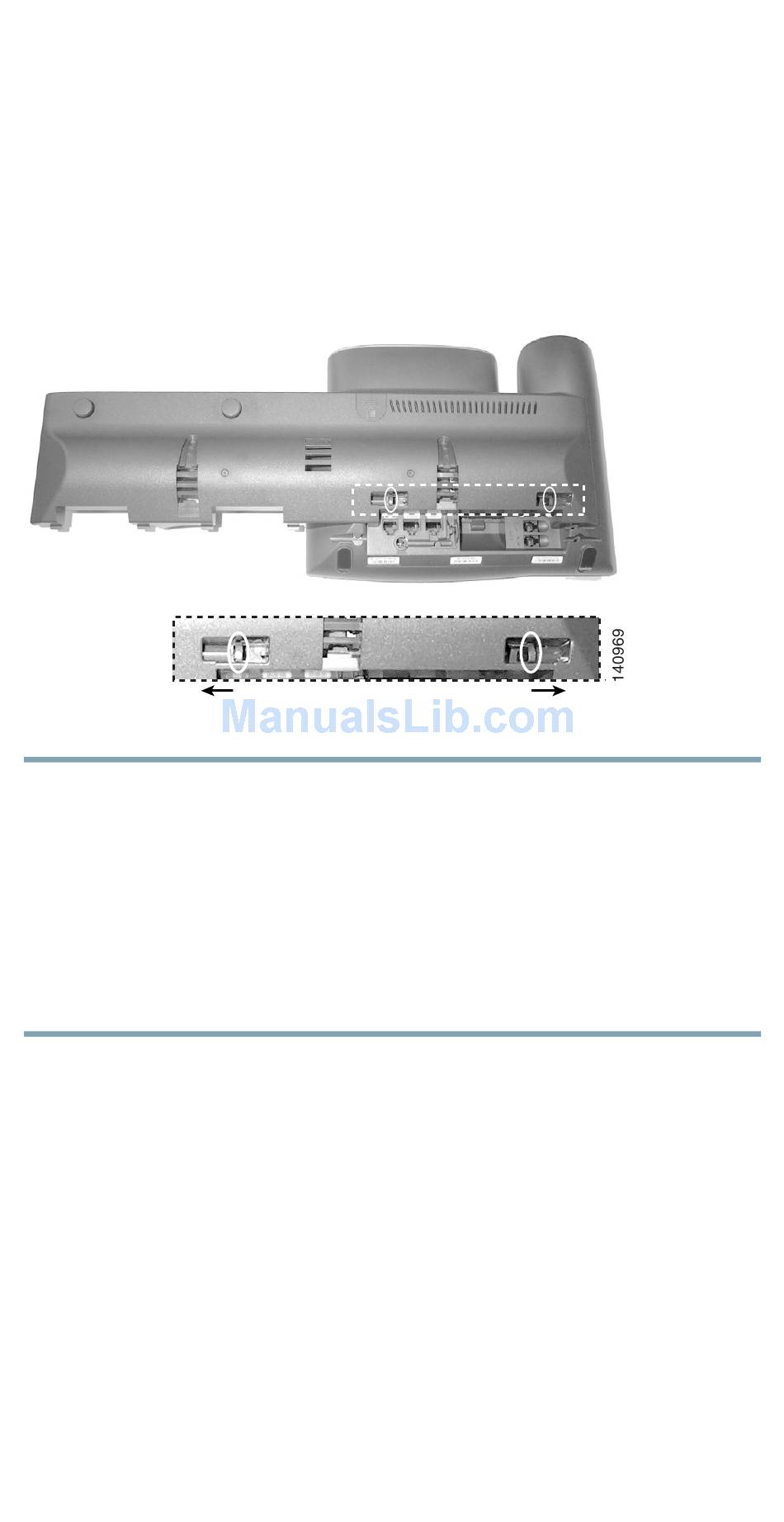

Figure 3

Connecting the Support Bar

Position the support bar on the back of the

Step 1

Cisco Unified IP Phone so that it fits flush with the

phone.

Locate the two connector pins.

Step 2

Use a flat head screwdriver to carefully push each of the

Step 3

connector pins so that the support bar is firmly fastened

to the Cisco Unified IP Phone.

Connect the Expansion Module 7915 to the

Support Bar

Refer to Figure 4 and the steps that follow.
