Plug one end of the second interface cable into the AUX

Step 3

jack with the "out" icon underneath on the first

Expansion Module (the one closest to the phone).

Plug the other end of the second interface cable into the

Step 4

AUX jack with the "in" icon underneath on the second

Expansion Module (the one next to the first Expansion

Module).

Connect the Power Supply Unit

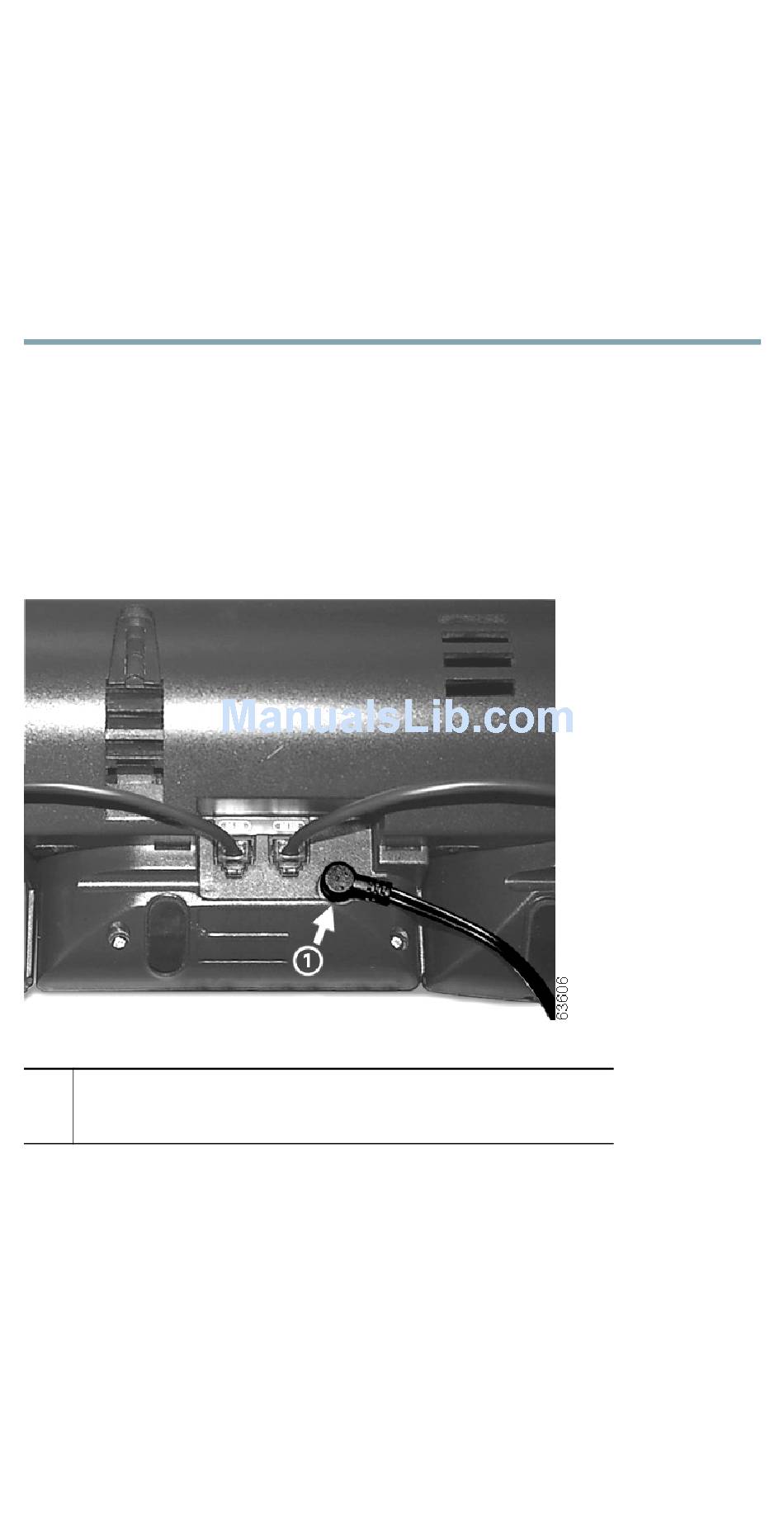

Refer to Figure 6 and the steps that follow.

Figure 6

Connecting the Power Supply Unit

Power supply connector on the back of the

Expansion Module
