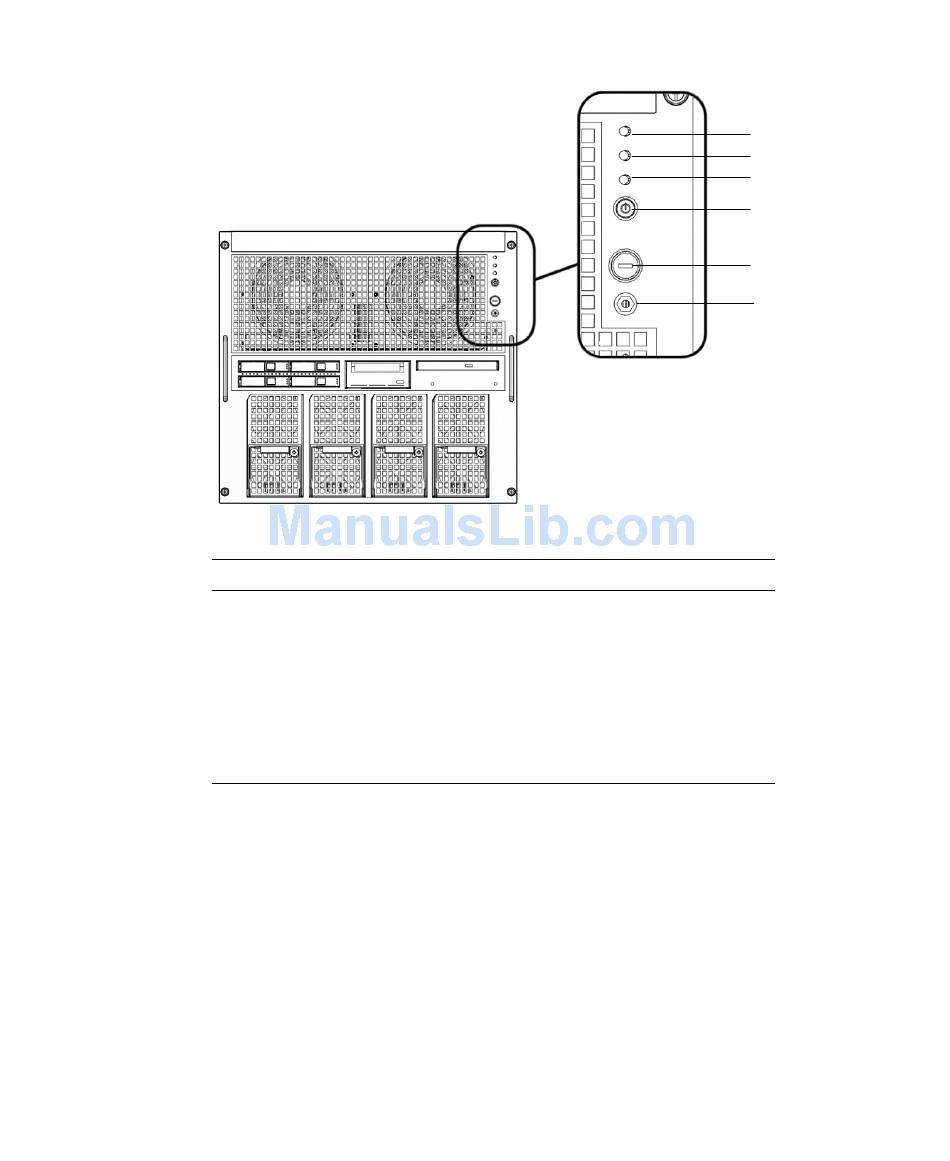

FIGURE 2-4
Location Number
1
2
3
4
5
6
Additional LEDs are located in various locations in the server. For more information
about LED indicator locations, see
2-10
SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010
M5000 Server Operator Panel
Component
POWER LED
XSCF STANDBY LED
CHECK LED
Power switch
Mode switch (keyswitch)
Antistatic ground socket
Section 2.5, "LED Functions" on page
1
2
3
4
5
6
2-18.
