Internal Card With Bluetooth® Wireless Technology
Dell™ Latitude™ ATG D620 Service Manual
CAUTION: Before working inside your computer, follow the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer (see
Inside Your Computer).
If you ordered an internal card with Bluetooth wireless technology with your computer, it is already installed.
1. Follow the procedures in Before You
2. Remove the hinge cover (see
NOTICE: Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.
3. Carefully remove the card cable from its routing guide.

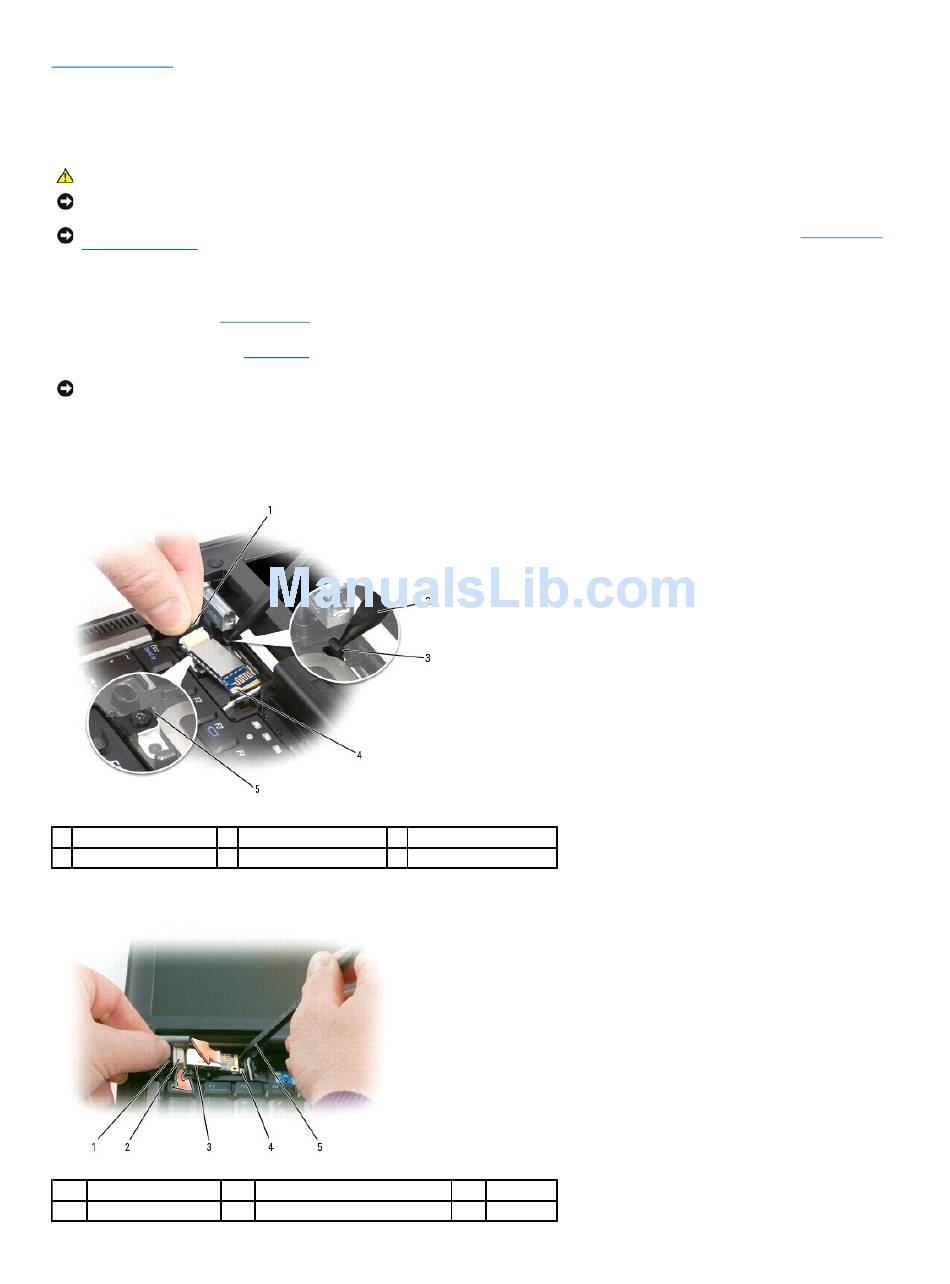

4. While grasping the card cable with one hand, gently press slightly downward (with a plastic scribe) on the tiny, plastic securing tab (shown below) to
release the cable end of the card.
1 connector wire 2
4 metal securing tab 5
5. Continue to grasp the card cable with one hand while gently prying the card out from underneath the metal tab with the other hand.
1 cable 2
4 metal tab 5
Begin.
Hinge Cover).
plastic scribe 3 plastic securing tab
plastic securing tab
card connector
plastic scribe
3 card
