Connecting Fan and Power Cables
Connecting Fan Cables

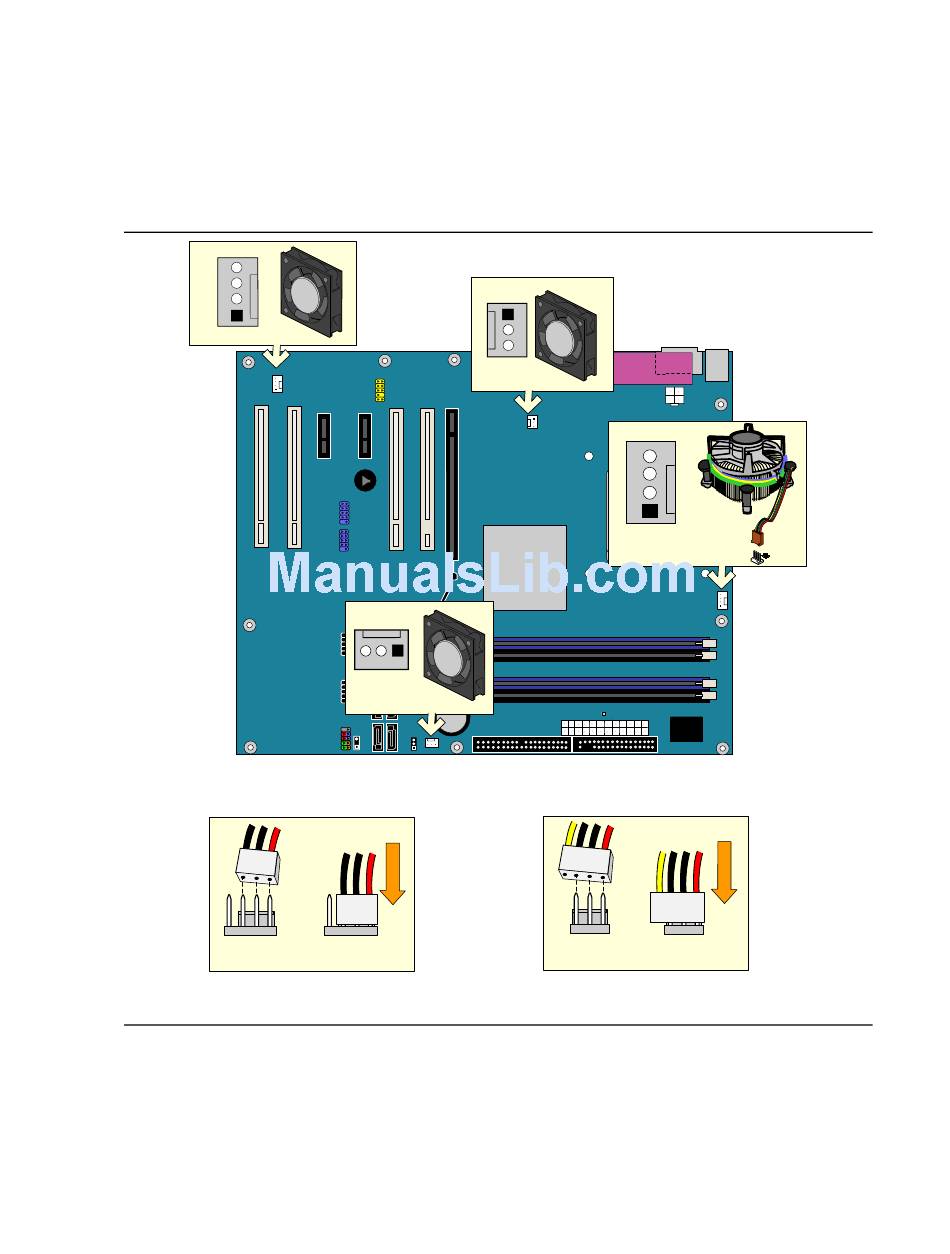

Figure 23 shows the location of the fan headers. Connect the processor's fan heat sink cable to the
4-pin processor fan header on the board. Connect chassis fan cables to the 3-pin fan headers.
4
3
2
A
44
R
Intel 82801
(ICH7)
4
3
2
1
1
B
Figure 23. Location of Fan Headers
OR
3
1
2
A
3
1
2
B
OM17677
